Baader Canon EOS DSLR T-Ring with 7nm H-Alpha Filter
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please note: It is common for the filter substrate to sit loosely within this adapter as received from Baader. Hence, it might rattle a bit if shaken. This is not a defect and there will be no negative impact on performance.
Today's large sensor digital SLRs and advanced imaging techniques enable amateurs to take spectacular high resolution and long exposure images that push the limits of modern telescope optics. Until now, the only means of coupling a DSLR to the telescope relies on the use of a standard mass produced camera T-Ring. However, T-rings, albeit convenient and popular, do have limitations:
- The use of 42mm T-thread for the coupling causes a choke-point in the imaging train (typcially 38mm internal diameter), possibly resulting in vignetting in fast systems.
- High resolution digital image sensors and their protective glass covers are highly vulnerable to dust that can enter the body each time the camera is coupled/uncoupled, or in open systems, particularly if the camera has been modified for full-spectrum use.
- Many cheap T-rings are mass-produced for generic camera use, with general manufacturing tolerances and design, which result in a potentially loose bayonet fit that can cause focal plane squareness and long-exposure image shifting from lateral play and angular wobble.

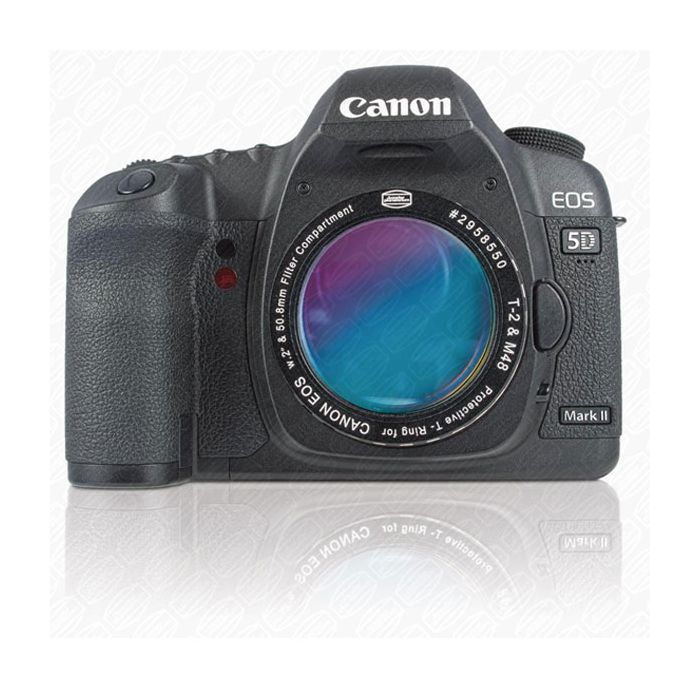

Baader's New Protective Wide T-Ring System for the Canon EOS series cameras evolves the T-Ring and solves these issues.
- The 2" wide aperture of the protective T-ring accepts 3 different attachment adapters, which are included with each T-ring: Standard T-thread (42mm), 2" thin profile nosepiece, and 48mm thread (astro filter standard).
- The internal filter compartment is able to accept both Baader 2" mounted filters, and 50.4mm diameter unmounted filters for the widest clear aperture possible (47.3mm aperture).
- The optimized design and tight manufacturing tolerances ensure the closest fit possible with the Canon EOS body. This avoids the occurance of focal plane tilt and image shift caused by play and wobble at this connection point.
The Baader Protective Wide T-Ring System includes 6 configurable parts:
- Protective T-ring Body
- Temperature Compensation Ring (for installation of 50.4mm x 3mm unmounted filters)
- Adapter S52/M48 (for 48mm connection thread)
- T-thread/M48 adapter (for standard 42mm T-thread connection)
- S52/2" wide aperture 2" nosepeice (includes M48 filter thread)
- 1.5mm Allen Wrench
In addition to the basic system, this Protective Wide T-Ring system also includes a pre-installed Baader 50.4mm x 3mm 7nm H-Alpha filter.
Baader part numbers: # DSLR-HA or # 2958550H
