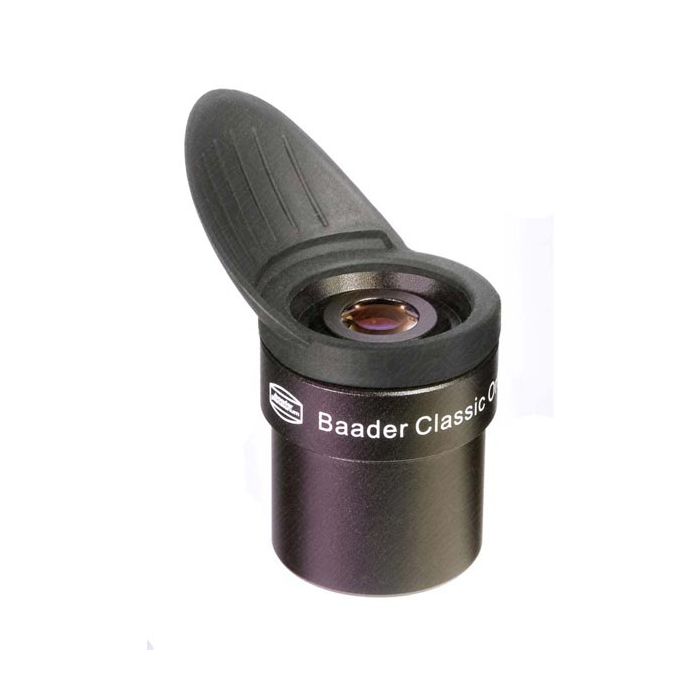

Baader 1.25" Classic Orthoscopic Eyepiece - 10mm
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 10 mm orthoscopic eyepiece based on classic Zeiss design offers high-contrast and razor-sharp images of Moon and planets
- Innovative ergonomic design for comfortable viewing position and elimination of stray side light
- Wider 52 degree apparent field of view to make it easy to locate target
- Ideal for use in binoviewers
Even before the disappearance of the famed Baader Genuine Orthoscopics in mid-2012, Baader Planetarium sought to develop a set of true Planetary eyepieces that was accessible for any amateur - without breaking their bank. Foregoing fancy (and costly) cosmetics, the new Classic Eyepieces deliver where it counts - performance. Their sharpness and contrast rival other 'planetary' eyepieces costing much more. To achieve this performance and value, Baader drew upon their extensive in-house knowledge and experience, combined with optical designs and processes leveraged from Zeiss.
Features of the new Classic Eyepieces:
- Optical design and manufacturing specs based on the highly regarded Zeiss Jena 0.965" orthoscopics (not any Japanese or Chinese makes).
- Fully multi-coated: All air-to-glass surfaces are coated with Baader's HT MultiCoatings, specifically matched to each substrate.
- Excellent ergonomics: The innovative recessed volcano top provides clearance for eyelashes and enables a comfortably located eyepoint without the stray light problems of a full volcano top.
- Integrated winged folding rubber eyecup: Eliminates distracting stray side-light, enabling full concentration on the object, as well as providing a thermally insulating and soft non-scratching top surface (ie, for eyeglass wearers). Also outstanding for BinoViewing. Rubber eyecup may be folded down or removed, if needed .
- 52-deg apparent field of view (6/10/18mm Orthoscopics): Makes finding and centering objects at high powers easier than typical 40-45deg eyepieces.
- Blackened lens edges; Parfocal.
- Threaded to accept standard 1.25" astronomy filters.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Eyepiece Series | Baader Classic Orthoscopic |
| Focal Length | 10mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 52° |
| Eye Relief (Designed) | 8mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | HT Multi-Coated |
| Lens Elements | 4 |
| Lens Groups | 2 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 42x60mm |
| Optical Design | Orthoscopic |
| Height (With Eyeguard Extended) | 1.61" (40.9mm) |
| Maximum Width | 1.37" (34.8mm) |
| End Caps | 2 |
| Eye Lens Diameter | 0.43" (11.0mm) |
| Field Stop Diameter | 8.7mm |
| Parfocal | Yes |
| Rubber Eye Guard | Yes (Winged) |
| Weight | 1.69 oz (48 g) |
| Hide Found a better Shipped Price on Frontend? | No |
- 10 mm orthoscopic eyepiece based on classic Zeiss design offers high-contrast and razor-sharp images of Moon and planets
- Innovative ergonomic design for comfortable viewing position and elimination of stray side light
- Wider 52 degree apparent field of view to make it easy to locate target
- Ideal for use in binoviewers
Even before the disappearance of the famed Baader Genuine Orthoscopics in mid-2012, Baader Planetarium sought to develop a set of true Planetary eyepieces that was accessible for any amateur - without breaking their bank. Foregoing fancy (and costly) cosmetics, the new Classic Eyepieces deliver where it counts - performance. Their sharpness and contrast rival other 'planetary' eyepieces costing much more. To achieve this performance and value, Baader drew upon their extensive in-house knowledge and experience, combined with optical designs and processes leveraged from Zeiss.
Features of the new Classic Eyepieces:
- Optical design and manufacturing specs based on the highly regarded Zeiss Jena 0.965" orthoscopics (not any Japanese or Chinese makes).
- Fully multi-coated: All air-to-glass surfaces are coated with Baader's HT MultiCoatings, specifically matched to each substrate.
- Excellent ergonomics: The innovative recessed volcano top provides clearance for eyelashes and enables a comfortably located eyepoint without the stray light problems of a full volcano top.
- Integrated winged folding rubber eyecup: Eliminates distracting stray side-light, enabling full concentration on the object, as well as providing a thermally insulating and soft non-scratching top surface (ie, for eyeglass wearers). Also outstanding for BinoViewing. Rubber eyecup may be folded down or removed, if needed .
- 52-deg apparent field of view (6/10/18mm Orthoscopics): Makes finding and centering objects at high powers easier than typical 40-45deg eyepieces.
- Blackened lens edges; Parfocal.
- Threaded to accept standard 1.25" astronomy filters.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Eyepiece Series | Baader Classic Orthoscopic |
| Focal Length | 10mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 52° |
| Eye Relief (Designed) | 8mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | HT Multi-Coated |
| Lens Elements | 4 |
| Lens Groups | 2 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 42x60mm |
| Optical Design | Orthoscopic |
| Height (With Eyeguard Extended) | 1.61" (40.9mm) |
| Maximum Width | 1.37" (34.8mm) |
| End Caps | 2 |
| Eye Lens Diameter | 0.43" (11.0mm) |
| Field Stop Diameter | 8.7mm |
| Parfocal | Yes |
| Rubber Eye Guard | Yes (Winged) |
| Weight | 1.69 oz (48 g) |
| Hide Found a better Shipped Price on Frontend? | No |
Baader 1.25" Classic Orthoscopic Eyepiece - 10mm # BCO-10 2954110
