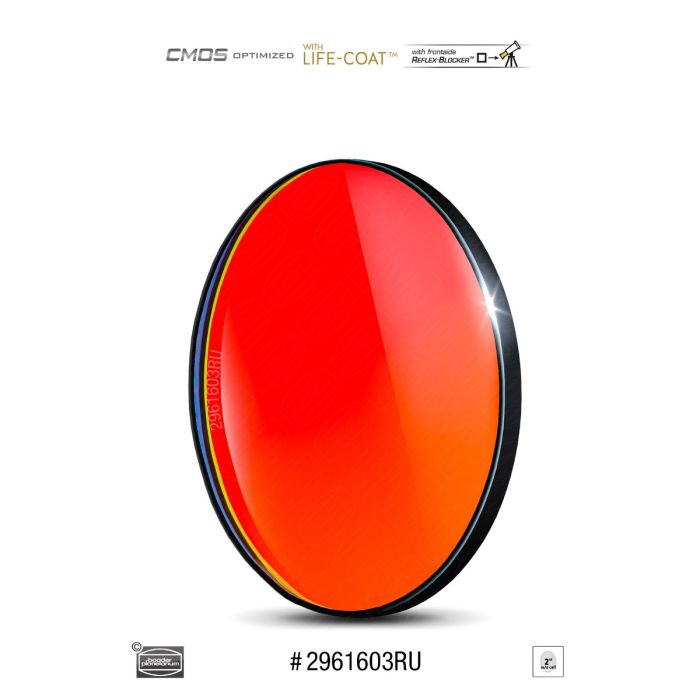

Baader CMOS-Optimized RGB-R Red Filter for FCCT - 47.4mm Round Unmounted
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Baader CMOS-Optimized RGB-R Red Filter for FCCT # FCR-2U or 2961603RU
- 47.4 mm (2" w/o cell) x 2 mm Baader CMOS RGB-R (595 – 690 nm) Bandpass Filter, suitable from f/15 to f/1.8
- 2" Filter removed from filter cell, specially selected for use with 2" Filter sliders of the Baader FCCT (Filter Changer Camera Tilter) for RASA 8 and QHY cameras (# 2459070 or 2459071)
- Anti-reflection RGB filter (red/green/blue) with extremely high transmission of the respective color channel, thus simultaneously reducing stray light and reflections to an unprecedented level
- Balanced RGB design allows subframes to be taken with the same exposure time – extremely important for automated imaging tasks
- Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
- Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies
Specifications:
- Net weight (kg): 0.07
- Suitable for f/ -range: f/15 to f/1.8
- Colour: Black
- Transmission Range: 595 – 690 nm
- Filter Thickness (without cell): 2 mm
- CWL (Central Wavelength): RGB-R
- AR-Coating: Reflex-Blocker™ hard coated, planeoptically polished
- Special Features: CMOS optimized with Life-Coat™
- Filter size: 47.4 mm (2" w/o cell)
- Filter Usage: CMOS, CCD, RGB
- Filter mounted: Unmounted
- Type of Filter: Bandpass
- Single or Set?: Single Filter
- Filter shape: Round
Life-Coat™: Limited-Lifetime-Warranty for CMOS-optimized Baader filters
A Baader Planetarium exclusive. Filters incorporating Baader Planetarium’s Life-Coat™ technology are so durable that Baader Planetarium warrants the coatings for the life of the filter. Baader Planetarium has developed Life-Coat™ using materials and processes that result in coatings which will not degrade or fail for a lifetime. Life-Coat™ coatings resist moisture, temperature extremes, and are hardened to withstand normal cleanings.
Baader Planetarium guarantees their Life-Coat™ coatings will not peel, flake or physically degrade and will withstand repeated cleaning with fine optical cleaning equipment. The Limited Lifetime Warranty applies to the original purchaser and does not cover failure from mis-use, physical damage through improper handling, or improper cleaning.
