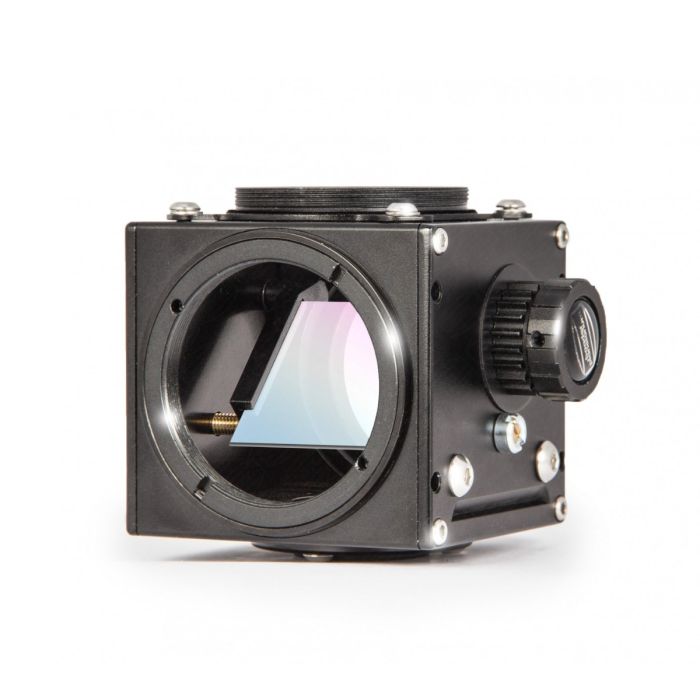

Baader Flip Mirror II Star Diagonal
Availability: No ETA available from the manufacturer at this time
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please note: Page 1 of Baader's manual for this item states the following: "Please note: There is a protective film on the mirror. We recommend to remove it only after all accessories have been installed at the adjustable T-2 top ring."
However, note that his is no longer correct. There is no such protective film on the mirror in most batches that we receive from Baader.
Various ports – variable work
Telescope auxillary instruments cover a wide range of interests, from a sole eyepiece, via camera use, to high end spectroscopy. Unfortunately every telescope just features one exit port. This causes relentless manual exchange of parts in the dark, causing huge time loss, wear on the parts - and "nerves". And whenever you start controlling your telescope remotely - the single port becomes a painful reality.
Improving workflow, especially during astrophotography is the goal set out for the BFM II. This is not just a simple flip mirror but much more, as there are three ports to be put into action.
General Function of the FlipMirror II Star Diagonal
The BFM II lets you switch between a straight light path for a camera or other measuring instruments and an angled light path, e.g.
for an eyepiece. In addition, a calibration lamp for spectrographs or an Off-Axis-Guider pickoff-prism (that is not affected by the mirror position) can be connected at the AUX-port on the bottom
Specifications:
- Sku (#) 2458055
- Optical Length (mm) 55 Mm With S52, 59 Mm With M48/t-2
- Dimensions 63 X 77 X 69 Mm
- Inner Connection (lens Sided) thread, Dovetail Ring Clamp, S52, T-2 (m42 X 0,75), M48
- Weight (kg) 195 G
- Inner Connection (eyepiece/-camera-sided) thread, Dovetail Ring Clamp, M48, S52
- Outer Connection (eyepiece/-camera-sided) thread, M48
- Type Of Adapter variable
What's in the box:
- Baader FlipMirror II Star Diagonal – with fine-optically polished, movable mirror
- Laterally adjustable T-2a top ring
- 2x M48i / S52 Dovetail ring made of hardened stainless steel # 2958552
- Reducing ring M48a / T-2i # 2958553
- Reducing ring M48a / T-2a # 2958554
- Inverter ring M48a / M48a # 2958555
- Pin type face wrench for M48 / T-2 and M4 counter nuts
- 3 mm screwdriver for M 4 brass adjustment screws
- 4x hex keys (2.5 / 2.0 / 1.5 / 1.3 mm). The 2.0 mm wrench has a ball head to reach screws even when accessories are mounted by holding the wrench at an angle.
- Bottom flange (laterally adjustable 1mm) for off-axis guide or calibration lamp for spectroscopy
- Dust cap for bottom flange
- 2 x M48 dust caps
- T-2 dust cap
Manufacturer part number: BFM-II or 2458055
