Baader M43/SP54 Adapter for Hyperion Mk III/IV Zoom Eyepieces
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

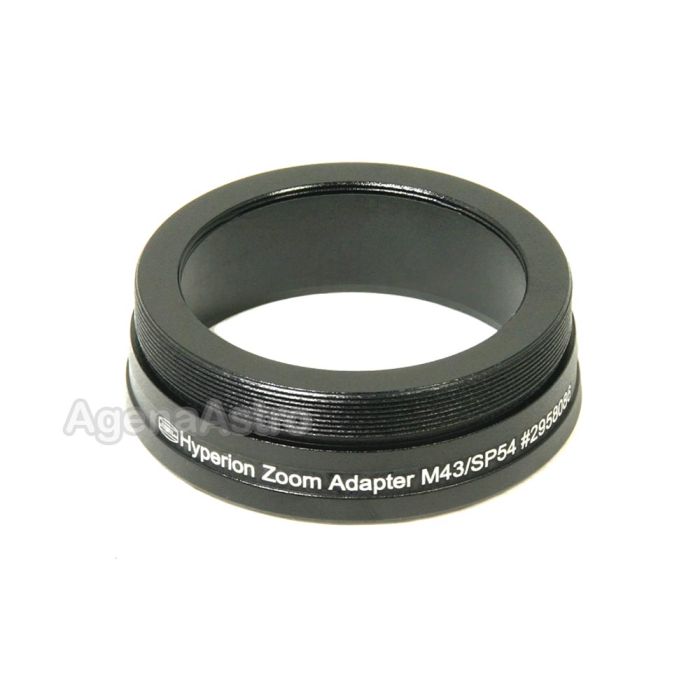

- Hyperion Zoom Adapter for M43 female thread to SP54 male thread
- This adapter allows the connection of all standard camera lenses with filter thread to the Hyperion Zoom 8-24mm Mark III (discontinued) and the Baader Hyperion Universal Zoom Mark IV, 8-24mm eyepiece (1¼" / 2") to use the eyepiece in conjunction with the camera lens as a so-called "afocal projective system".
- The connection rings from this system are referred to as "Hyperion DT rings". All you need is the matching SP54 adapter for your filter thread.
- Not suitable for Morpheus 76 ° eyepieces or the first version of the Hyperion zoom eyepice.
Baader's Mark III/IV zoom eyepieces feature a 43mm thread under the eyeguard for attachment of various imaging adapters. This camera adapter from Baader can be attached to the male M43 thread on this eyepiece on one side. On the other side, this adapter has an M54 male thread and can be connected to Baader's various HDT rings. These HDT rings are available for a wide variety of camera thread sizes. So by using this adapter plus the appropriate HDT54/xx adapter for your camera, you can connect your camera to Baader's Mark III/IV zoom eyepieces.
To attach the Baader Mark III/IV zoom to a standard M42 T thread adapters, use the HTA43/T-2 adapter instead and not this adapter.
Baader part number: HTA43/54 or 2958086
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
- Hyperion Zoom Adapter for M43 female thread to SP54 male thread
- This adapter allows the connection of all standard camera lenses with filter thread to the Hyperion Zoom 8-24mm Mark III (discontinued) and the Baader Hyperion Universal Zoom Mark IV, 8-24mm eyepiece (1¼" / 2") to use the eyepiece in conjunction with the camera lens as a so-called "afocal projective system".
- The connection rings from this system are referred to as "Hyperion DT rings". All you need is the matching SP54 adapter for your filter thread.
- Not suitable for Morpheus 76 ° eyepieces or the first version of the Hyperion zoom eyepice.
Baader's Mark III/IV zoom eyepieces feature a 43mm thread under the eyeguard for attachment of various imaging adapters. This camera adapter from Baader can be attached to the male M43 thread on this eyepiece on one side. On the other side, this adapter has an M54 male thread and can be connected to Baader's various HDT rings. These HDT rings are available for a wide variety of camera thread sizes. So by using this adapter plus the appropriate HDT54/xx adapter for your camera, you can connect your camera to Baader's Mark III/IV zoom eyepieces.
To attach the Baader Mark III/IV zoom to a standard M42 T thread adapters, use the HTA43/T-2 adapter instead and not this adapter.
Baader part number: HTA43/54 or 2958086
