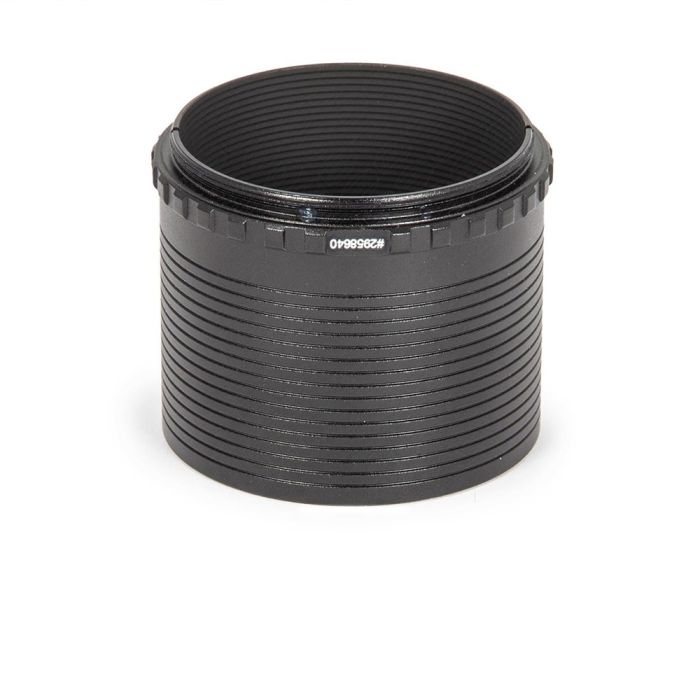

Baader M48 Extension Tube - 40mm / 2" Nosepiece with Safety Kerf
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5 mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
- Used to adjust the working distance of larger cameras and similar accessories with M48 thread
- Telescope side M48 internal thread, 3.5 mm depth
- Eyepiece-/camera side M48 external thread, 3 mm depth
- 40 mm optical path length
- Also used as M48 / 2" nose piece with 36mm insertion depth, safety kerfs and 5 mm optical height
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2958640
- EAN Code: 4047825042866
- Net weight (kg): 0.05
- Optical length (mm): 40 (or 5)
- Clamping System: No clamp
- Usage: Adjusting the distances of accessories with M48 thread, M48 / 2" Nosepiece
- Inner Diameter / Clear Aperture (mm): 45 mm
- Outer Diameter: 53 mm
- Inner Connection (lens sided): Barrel, Thread, M48, 2" (50,8mm)
- Outer Connection (eyepiece/-camera-sided): Thread, M48
- Type of Adapter: Extension
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5 mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
- Used to adjust the working distance of larger cameras and similar accessories with M48 thread
- Telescope side M48 internal thread, 3.5 mm depth
- Eyepiece-/camera side M48 external thread, 3 mm depth
- 40 mm optical path length
- Also used as M48 / 2" nose piece with 36mm insertion depth, safety kerfs and 5 mm optical height
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2958640
- EAN Code: 4047825042866
- Net weight (kg): 0.05
- Optical length (mm): 40 (or 5)
- Clamping System: No clamp
- Usage: Adjusting the distances of accessories with M48 thread, M48 / 2" Nosepiece
- Inner Diameter / Clear Aperture (mm): 45 mm
- Outer Diameter: 53 mm
- Inner Connection (lens sided): Barrel, Thread, M48, 2" (50,8mm)
- Outer Connection (eyepiece/-camera-sided): Thread, M48
- Type of Adapter: Extension
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Baader M48 Extension Tube - 40mm / 2" Nosepiece with Safety Kerf # M48/40 2958640
