Baader M55 Male to M68 Female Expansion Adapter
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

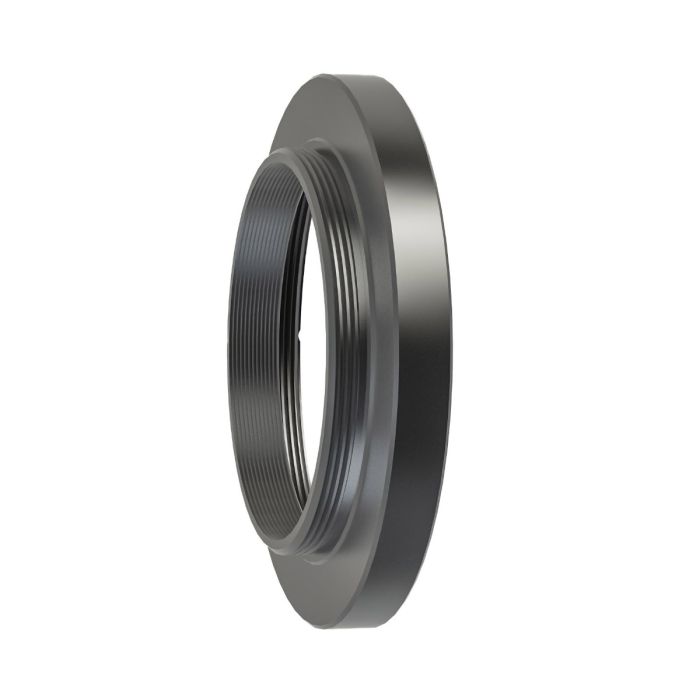

Expansion Ring M55a to M68i
This adapter allows you to change your Baader 2" Diagonal Mirror (# 2456115, 2456117, 2456100) or Prism from M55 Female Thread (# 2456120) to M68 female thread. This allows you to integrate the mirror without reduction to 2" in an M68 light path ,
To attach the adapter to your mirror you must first remove the 2" barrel and the M55 / 2" UNC threaded ring from the housing of the mirror. For this, the face spanner # 2450062 is recommended (not included).
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2458234
- Ean Code: 4047825039187
- Optical Length (mm): 8
- Inner Diameter / Clear Aperture (mm): 51
- Weight (kg): 0.030
- Outer Connection (lens Sided): Thread, M55
- Inner Connection (eyepiece/-camera-sided): Thread, M68 X 1
- Compatible Brands: Baader Planetarium
- Type Of Adapter: Reducing Piece
Manufacturer part number: 2458234
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Expansion Ring M55a to M68i
This adapter allows you to change your Baader 2" Diagonal Mirror (# 2456115, 2456117, 2456100) or Prism from M55 Female Thread (# 2456120) to M68 female thread. This allows you to integrate the mirror without reduction to 2" in an M68 light path ,
To attach the adapter to your mirror you must first remove the 2" barrel and the M55 / 2" UNC threaded ring from the housing of the mirror. For this, the face spanner # 2450062 is recommended (not included).
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2458234
- Ean Code: 4047825039187
- Optical Length (mm): 8
- Inner Diameter / Clear Aperture (mm): 51
- Weight (kg): 0.030
- Outer Connection (lens Sided): Thread, M55
- Inner Connection (eyepiece/-camera-sided): Thread, M68 X 1
- Compatible Brands: Baader Planetarium
- Type Of Adapter: Reducing Piece
Manufacturer part number: 2458234
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Baader M55 Male to M68 Female Expansion Adapter # M68/M55 2458234
