Baader MQR IV Quick Release Finder Bracket for Vario Finder
Availability: No ETA available from the manufacturer at this time
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

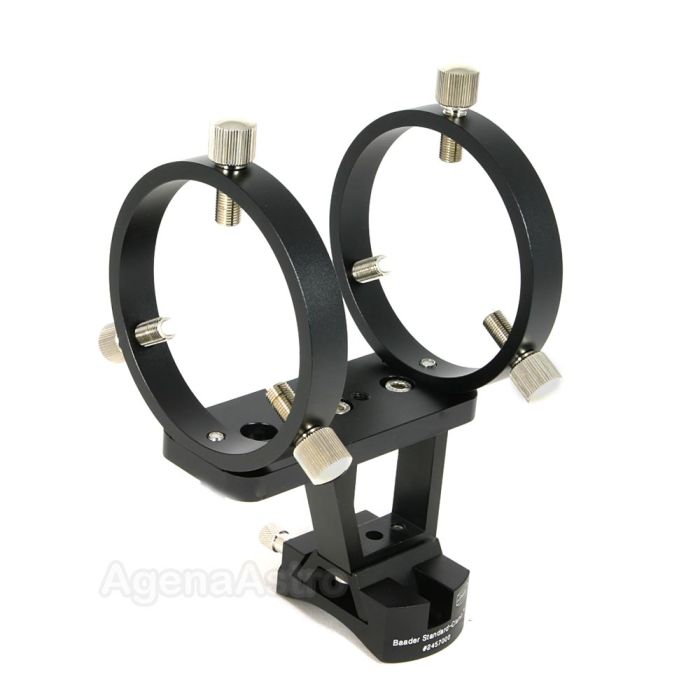

Baader Multipurpose Quick Release Finder Bracket IV # MQR-IV / 2457030. The entire bracket is precision-CNC machined and made of black anodized aluminum. Includes 6-point alignment thumbscrews with delrin tips.
Specifications of Finder Rings:
Inside diameter of rings = 73.5mm (2.89"). Ideal for 60mm finders (both straight-through or right-angle versions). The distance between the rings (measured from the outside at both ends) is 95mm (3.74"), so the length of your finder tube should be longer than this.
- Bracket weight (without dovetail base): 9.6oz
- Bracket weight (with dovetail base): 11.5oz
- Suggested minium diameter of finder tube: 50mm (1.97")
- Suggested maximum diameter of finder tube: 66mm (2.60")
- Bracket height (excluding dovetail base and screws): 150mm (5.91")
Specifications of Included Dovetail Base:
This bracket includes the Baader Universal Quick Release dovetail finder base (finder-shoe) # 2457000. This shoe is compatible with most standard Vixen or Synta style finder brackets and red dot finders, including Baader's MQR-III, MQR-IV, and Sky-Surfer V finder.
It is CNC machined with a curved base and features elongated holes for a good fitting to almost any telescope, including Schmidt-Cassegrains (SCT). The Baader finder base has two elongated holes for screws up to M5, with either a countersunk head or a flat cylindrical head. Spacing between the screws can range from 27-45mm (1.06-1.77"). In addition, the base has a central countersunk hole for screws up to M5. Screws and nuts are not included.
