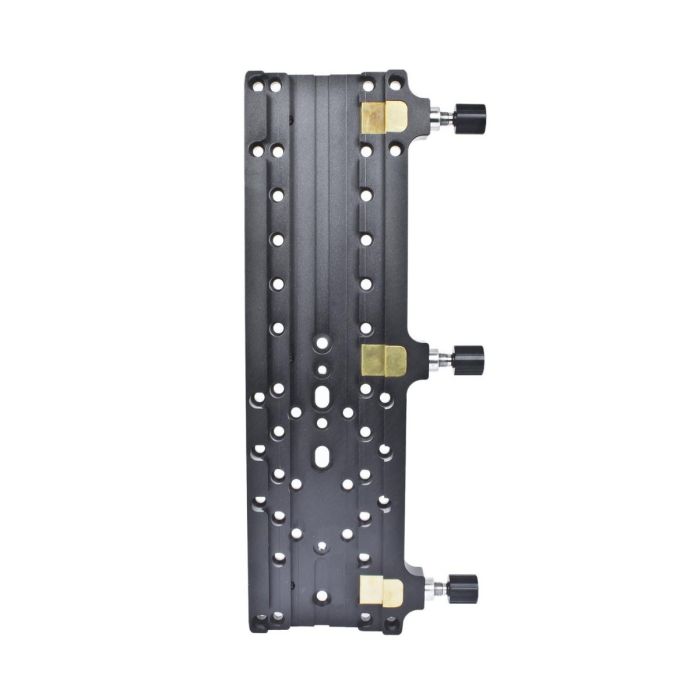

Baader PAN 3"/EQ Dual Dovetail Saddle for V (Vixen) and D (Losmandy) Style Dovetail Rai...
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Clamps 3" (Losmandy) and 1.7" EQ (Vixen/Celestron/Skywatcher) dovetails
- With three wide, two-terminal blocks made of brass. Clamping handles flush with the ground surface - therefore fixed everywhere.
- With Allen screw head in the clamp handle (can be tightened with an Allen wrench) having toothed counter surfaces to maximize the points of contact with any track. Prefabricated pre-drilled for a variety of mounts.
The PAN 3"/ EQ 370 offers a secure and absolutely firm clamping - for all standard mounting rails - nothing can twist any more, the rail replaces a running weight at the same time because it is far forward and the telescope tube can be balanced much better! At the front end, a tangential mount (e.g., Stronghold) can be attached and make starfield images without photographing the telescope tube. Weight 1,500 g.
Specifications:
- Manufacturer: Baader Planetarium
- Ean Code: 4047825011787
- Sku (#): 2451565
- Weight (kg): 1.425
- Bar Length: 370 mm
- Clamping System: Dovetail Clamp
- Dual Mounting: Yes
- Bar Or Clamp?: Clamp
- Design: 3“ (76mm) Losmandy, V (44mm) Celestron/vixen
- Thread Drillings For: 10micron, Astro Physics, Baader Guidescope Rings, Baader Stronghold, Celestron C8, Celestron C9¼, Celestron C11, Takahashi, Vixen
Manufacturer part number:PAN-EQD or 2451565
