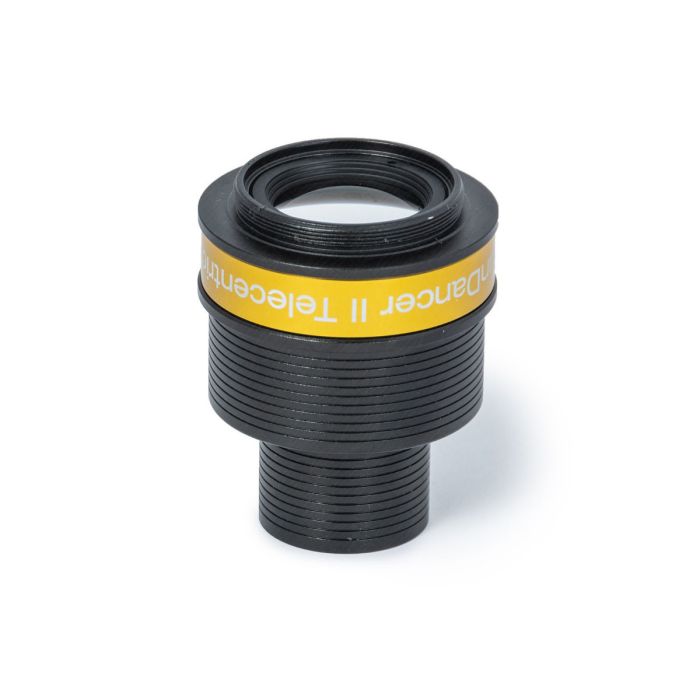

Baader SunDancer II Telecentric System
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Achromatic 3x telecentric system
- Four-lens optical design, BBAR (Broad-Band Anti-Reflection) coating
- Anti-reflective thread and blackened lens edges against reflections and for maximum contrast
- Image circle 35mm in 96 mm distance to T-2 threaded base
- 1¼" and 2" nosepiece with 1¼" filter thread, T-2 thread on camera side
- The optical design places the telescope's focal point 28 mm behind the end of the 1¼" nosepiece
- 5-year warranty if handled properly
Please note: when using as a telecentric for H-alpha or CaK solar observation, it is mandatory to include a suitable D-ERF filter in front of the telescope aperture to prevent damage to the lens groups in the telecentric due to overheating. Heat/melting damage is not a warranty case, but only occurs due to improper operation.
Telecentric systems are mainly used in H-alpha filters for solar observation, where the 1/100 lambda plane-parallel etalon in the H-alpha filter requires a perfectly parallelised beam of light over the entire image. These telecentrics deliver very sharp images, but are usually only optimised for the H-alpha wavelength.
This achromatic SunDancer 3x telecentric is designed for the entire visible spectrum and can therefore not only be used on H-alpha systems, but also replace a Barlow lens. Due to the parallel beam of light, it is very good-natured with regard to the working distance: While the magnification factor of a Barlow lens changes with the distance to eyepiece or camera (zoom eyepieces are also based on this principle), the magnification factor and image quality of the TZ-3 do not change, even if the new focal point deviates very significantly from the working distance of the optical design (96 mm).
The achromatic SunDancer II TZ-3S illuminates an image circle of 35mm at a distance of 96mm from the base body, ideal for the small sensors of modern, fast planetary cameras that require high magnifications for photographing the moon and planets. The contrast is better than with simple barlows or the eyepiece projection often used for high magnifications. With the 3x telecentric system, the high magnifications which are necessary for visual observations can also be achieved with long focal length orthoscopic eyepieces. The interpupillary distance of the eyepieces used does not change either.
The connection on the telescope side is made via a dual 1.25"/2" nosepiece with safety kerfs (these prevent tilting due to an incorrectly positioned safety groove and at the same time provide a secure hold). On the camera side, the T-2 thread provides a tilt-proof, fixed connection even to heavy cameras or to T-2 eyepiece clamps. For the T-2 thread, adapter rings are available for almost all common connection systems (e.g. M48 / 2"/ M68).
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 1363070
- EAN Code 4047825042903
- Focal length extension: 3x
- Usage: for H-alpha observation with SolarSpectrum filters
- Outer Connection (lens sided): Barrel, 1¼", 2" (50,8mm)
- Outer Connection (eyepiece/-camera-sided): Thread, T-2 (M42 x 0,75), 1,4"(35mm)
