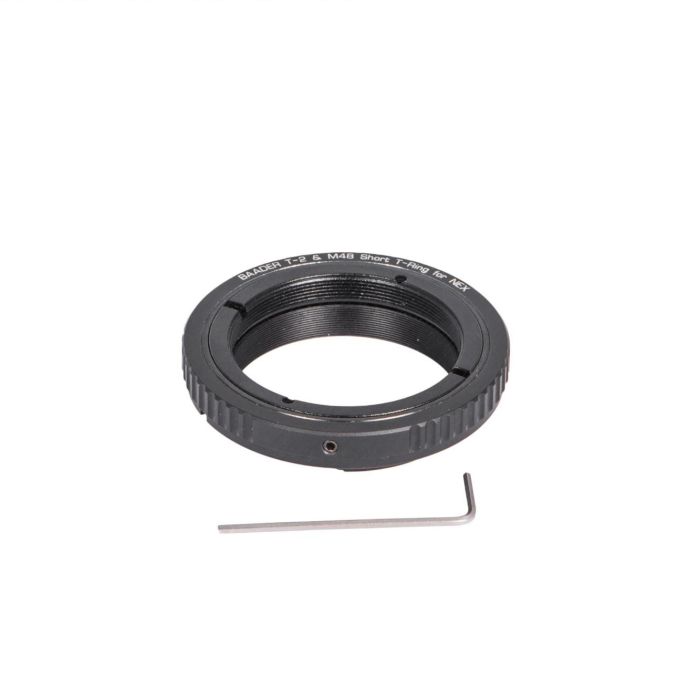

Baader T Ring for Sony E/NEX Bayonet with D52/M48 to T-2
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Baader T-Ring to connect Sony E/NEX DSLR cameras on the Astro T-2 system
- With the ultra-short Backfocus of only 26.3mm (18mm camera, 8.3mm T-2 bayonet ring) many adaptations in combination with reducers / filter wheels are now possible for the first time. Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- Camera-sided connection: Sony E / NEX bayonet
- Telescope-sided connection: S52, M48 and T-2 internal thread with 0.75mm pitch
The Sony Alpha 7 cameras – especially the 7S and 7SII – are very interesting for astronomical purposes because of their high sensitivity, short backfocus light weight and very compact body dimensions. Baader produces a very short T-adapter for Sony E-Mount/NEX bayonet, which adds only 8.3 mm onto the 18 mm backfocus of the camera housing. This enables an adaptation to all backfocus-critical systems like HyperStar or fast Newtonians. All other T-adapters with T-2-thread which are commercially available at the moment vignette the light path. Baader has incorporated the well-tested system of their protective EOS-T-Ring into the Sony-adapter: Besides the T2-thread, the design also includes an M48-thread – and even bigger – the outer part of Baader's ultrawide S52-clamping system.
Specifications:
- Manufacturer: Baader Planetarium
- Optical Tube Length: 8.3mm
- Camera Adaptable: Sony E/nex
- Inner Diameter / Clear Aperture: 41mm
- Outer Diameter: 60mm
- Inner Connection (Lens side): Thread, Dovetail Ring Clamp, S52, T-2 (m42 X 0,75), M48
- Outer Connection (Eyepiece/camera side): Bayonet
Baader part number: # TRING-S or 2408317
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
- Baader T-Ring to connect Sony E/NEX DSLR cameras on the Astro T-2 system
- With the ultra-short Backfocus of only 26.3mm (18mm camera, 8.3mm T-2 bayonet ring) many adaptations in combination with reducers / filter wheels are now possible for the first time. Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- Camera-sided connection: Sony E / NEX bayonet
- Telescope-sided connection: S52, M48 and T-2 internal thread with 0.75mm pitch
The Sony Alpha 7 cameras – especially the 7S and 7SII – are very interesting for astronomical purposes because of their high sensitivity, short backfocus light weight and very compact body dimensions. Baader produces a very short T-adapter for Sony E-Mount/NEX bayonet, which adds only 8.3 mm onto the 18 mm backfocus of the camera housing. This enables an adaptation to all backfocus-critical systems like HyperStar or fast Newtonians. All other T-adapters with T-2-thread which are commercially available at the moment vignette the light path. Baader has incorporated the well-tested system of their protective EOS-T-Ring into the Sony-adapter: Besides the T2-thread, the design also includes an M48-thread – and even bigger – the outer part of Baader's ultrawide S52-clamping system.
Specifications:
- Manufacturer: Baader Planetarium
- Optical Tube Length: 8.3mm
- Camera Adaptable: Sony E/nex
- Inner Diameter / Clear Aperture: 41mm
- Outer Diameter: 60mm
- Inner Connection (Lens side): Thread, Dovetail Ring Clamp, S52, T-2 (m42 X 0,75), M48
- Outer Connection (Eyepiece/camera side): Bayonet
Baader part number: # TRING-S or 2408317
