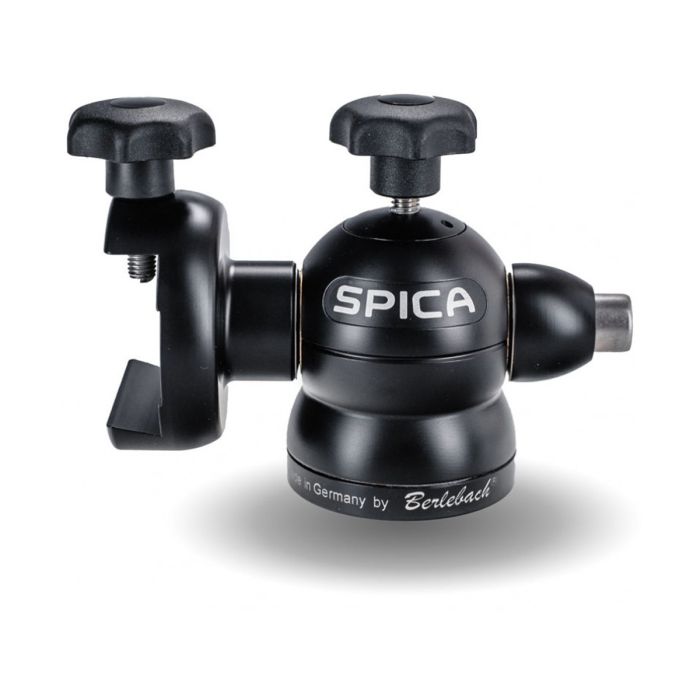

Berlebach Spica Alt-Azimuth Mount Head with Single Vixen-Style Prism Clamp
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Berlebach Spica alt-azimuth mount head # 500718
- Small and light alt-az mount for binoculars, scopes telescopes and cameras
- The friction control can be tuned with easy-to-grasp knobs for both axes
- Includes one Vixen-style dovetail clamp for mounting Vixen-style telescope dovetail plates and rails. Not for use with smaller Vixen-style finder bases.
- The other side can be connected to a second dovetail clamp (item no. 500609), counterbalance bar (item no. 500608), or quick release coupling (item no. 320262) for a camera/spotting scope (each sold separately)
- Thread size: 3/8"
- Height: 4.7 in (120 mm)
- Width: 6.9 in (175 mm)
- Diameter on the tripod side: 2.3 in (60 mm)
- Load capacity: 11 lbs (5 kg) (max. 7 Nm) with load on one side and 44 lbs (20 kg) with load on both sides
- Weight: 0.99 kg (2.18 lbs)
