Blue Fireball Large 3.28" Celestron SCT Female Thread to 2" Small SCT Male Thread ...
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
IMPORTANT NOTE:
Please note that the small male SCT thread length is 7mm. While this will be adequate for most SCT diagonals, please make sure that the female SCT thread on your diagonal does not exceed 7mm. A few diagonals, most notably William Optics' SCT diagonals, have a female thread length longer than 7mm. Such diagonals will not lock on this adapter without the use of an additional o-ring such as the item at this link (not included).
Description/Uses:

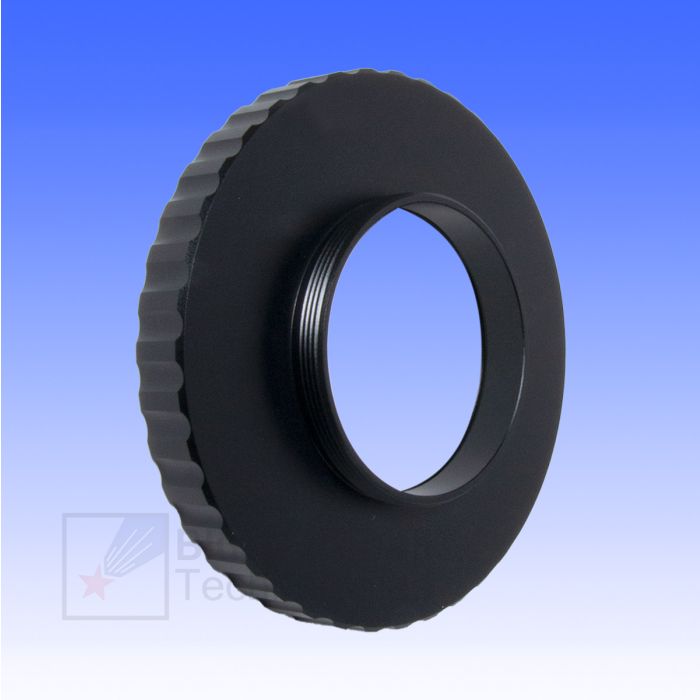

- Adapter with Celestron's large 3.28" female SCT threads on one side and a standard 2" male small SCT thread on the other side
- Celestron's 9.25" EdgeHD and all 11" and 14" SCT/EdgeHD telescopes come with a similar adapter but we are offering this for those who might need a replacement
- Also features a short M48 female thread inside the large female SCT thread. This can be used to attach 2" filters inside the adapter on the telescope side.
Features:
- Precision machined, black anodized aluminum
- Large knurled grip pattern on the outside
Specifications:
- Weight = 2.6oz
- Total length = 17.5mm (0.69")
- Optical length (Total length - small male SCT thread length) = 10.5mm (0.41")
- Large female thread specification = 3.28"-16TPI
- Length of large female SCT thread (including unthreaded undercut) = 7mm (0.28")
- Small male SCT thread specification = 2"-24TPI
- Length of male SCT thread (including unthreaded undercut) = 7mm (0.28")
- M48 filter thread specification = M48x0.75
- Length of female M48 thread = 2mm (0.08")
- Clear aperture = 47mm (1.85")
- Maximum outside diameter = 92mm (3.62")
