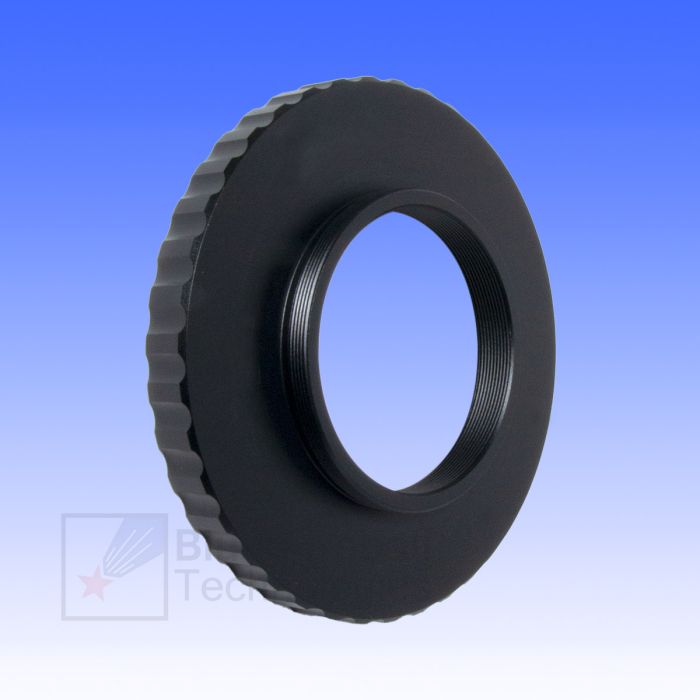

Blue Fireball Large 3.28" Celestron SCT Female Thread to M54x0.75 Male Thread Adapter
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Description/Uses:
- Adapter with Celestron's large 3.28" female SCT threads on one side and an M54x0.75 male thread on the other side
- For use with Celestron's 9.25" EdgeHD and all 11" and 14" SCT/EdgeHD telescopes. Allows you to use M54 threaded cameras and accessories directly on the telescope without stepping through SCT adapters, which you have to do if you use the included small 2" SCT adapter that these telescopes come with. For EdgeHD scopes, you will need to add additional spacers (not included) to adhere to the correct back focus requirements of those scopes.
- Also features a short M48 female thread inside the M54 male thread. This can be used to attach 2" filters inside the adapter on the telescope side.
- Not for use with Sky-Watcher's M54x1 threaded accessories
Features:
- Precision machined, black anodized aluminum
- Large knurled grip pattern on the outside
Specifications:
- Weight = 2.1oz
- Total length = 15mm (0.59")
- Optical length (Total length - M54 male thread length) = 9mm (0.35")
- Large female thread specification = 3.28"-16TPI
- Length of large female SCT thread (including unthreaded undercut) = 7mm (0.28")
- Male M54 thread specification = M54x0.75
- Length of male M54 thread (including unthreaded undercut) = 6mm (0.24")
- M48 filter thread specification = M48x0.75
- Length of female M48 thread = 8mm (0.31")
- Clear aperture = 47mm (1.85")
- Maximum outside diameter = 92mm (3.62")
