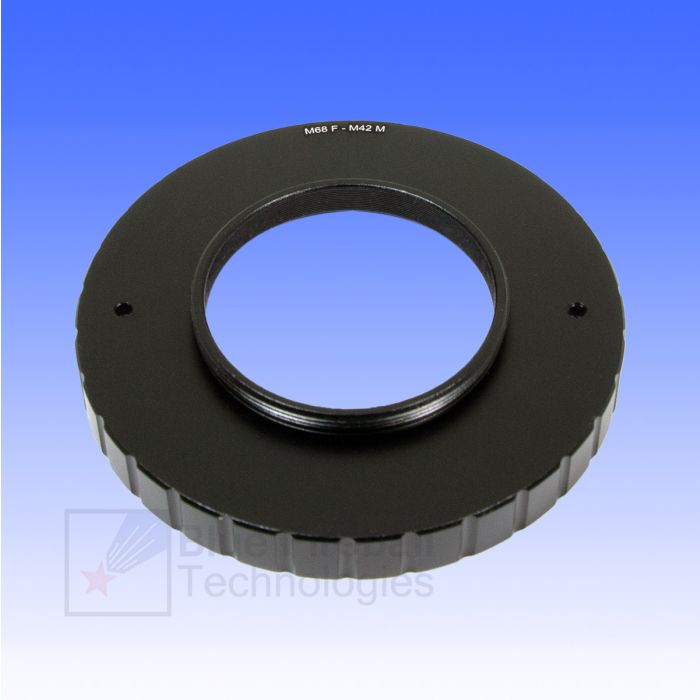

Blue Fireball M42x0.75 T/T2 Male to M68x1 Female / M48x0.75 Female Thread Adapter
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Description/Uses:
- Adapter for use with cameras with large sensors and accessories with M68x1 threads
- Features an M68x1 female thread on one side and a T/T2 M42x0.75 male thread on the other side
- Not for use with M68x0.75 threads
Features:
- Precision machined, black anodized aluminum
- Features an M48x0.75 female thread on the inside of the M68 thread side where you can include 2" astronomy filters or other male threaded M48 accessories
Specifications:
- Weight = 1.2oz
- Total length/thickness = 13mm (0.51")
- M42 T/T2 male thread specification = M42x0.75
- Length of M42 male thread (including unthreaded undercut) = 4mm (0.16")
- M68 female thread specification = M68x1
- Length of M68 female thread = 6mm (0.24")
- Optical length = 9mm (0.35")
- Clear aperture = 37.9mm (1.49")
- Maximum outside diameter = 73mm (2.87")
- Internal M48 female thread specification = M48x0.75
- Length of M48 female thread = 1.5mm (0.06")
- Inside clear diameter for M48 filter/accessory = 66.9mm (2.63")
- Inside clear depth for M48 filter/accessory = 6mm (0.24")
