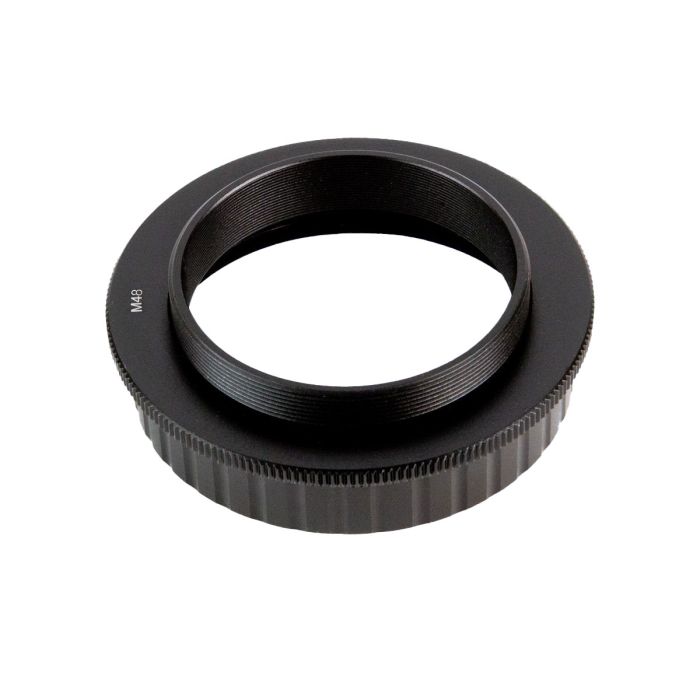

Blue Fireball M56 Female & M52 Female to M48 Male Thread Adapter (For Takahashi FC-60)
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Description/Uses:
- Photo adapter for Takahashi FC-60 refractor with M48 male threads.
- Features an M56x0.75 female thread on one side and an M48x0.75 male thread on the other side.
- Recessed 5mm below the M56 female thread is an M52x0.75 female thread, so this might be able to function as an M52x0.75 female to M48x0.75 male thread adapter (please check specifications below for clearance requirements).
- Also comes with an M48x0.75 female threaded lock/orientation control ring which allows you to vary the spacing or orientation of your imaging cammera or other M48 threaded accessory.
Features:
- Precision machined, black anodized aluminum
Specifications:
- Total length = 20.0mm (0.79")
- M56 female thread specification = M56x0.75
- Length of M56 female thread (including unthreaded undercut) = 5mm (0.20")
- M52 female thread specification = M52x0.75
- Length of M52 female thread (including unthreaded undercut) = 5mm (0.20")
- M48 male thread specification = M48x0.75
- Length of M48 male thread (including unthreaded undercut) = 8mm (0.31")
- Optical length = 12.1mm (0.48") minimum assuming that entire M48 thread is used up and M48 lock ring is not utilized. Optical length will be longer if this is not the case.
- Lock ring female thread specification = M48x0.75
- Thickness of lock ring = 3mm (0.12")
- Clear aperture = 44mm (1.73")
- Maximum outside diameter = 60mm (M56/M52-M48 component); 74.7mm (lock ring)
- Weight = 1.6oz (combined); 0.9oz (M56/M52-M48 component); 0.7oz (lock ring)
Notes:
- The M48 lock ring has slightly oversized threads so it might feel loose by itself on the M48 male thread. However, it will lock securely against your camera or M48 threaded accessory.
