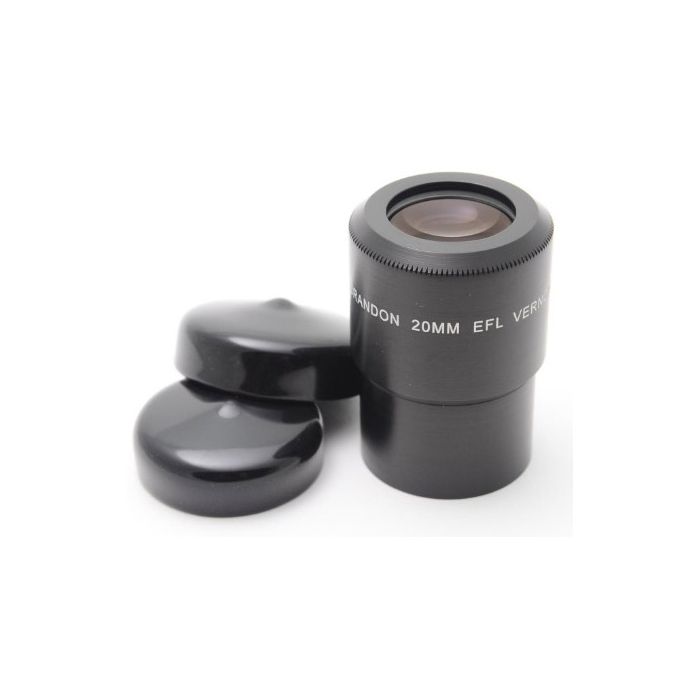

Brandon 1.25" Eyepiece with Flat Top - 20mm
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Effective focal length (EFL): 20mm
- Apparent field of view (AFOV): 45 degrees, as calculated from the focal length and field stop diameter
- Eye relief: about 17mm
- Field stop diameter: 15.75mm
- Weight: 2.9 oz
Brandon eyepieces, made by Vernonscope in the USA, are noted for their exceptional contrast and extremely dark background, two reasons why Questar Corporation has been including them with their telescopes since 1971. All Brandon eyepieces are parfocal.
The famous Brandon oculars incorporate the original optical designs of Chester Brandon and are acclaimed by leading astronomers as unquestionably the finest oculars in the world. In a test of many eyepieces, noted deep-sky observer, Ron Morales, rated Brandon eyepieces #1 for contrast which is perhaps the single most important characteristic for any eyepiece.
Some question why Brandon lenses are not multi-coated. In the past, several sets of Brandons were made with 7-layer multi-coatings with no improvement. In fact, not using multi-coating eliminates or greatly reduces the phenomenon known as narrow angle light scatter. Multi-coatings have more narrow angle light scatter than standard eyepiece coatings. This effect readily can be seen when viewing bright objects like Venus, Mars, or Jupiter, where this scatter greatly interferes with low-contrast detail.
Using Vernonscope's Brandon eyepieces, you also will notice a significant difference in the background darkness immediately surrounding a bright object, especially important for planetary or double-star observing. In addition, lunar detail such as the bands of Aristarchus are much better defined.
All Brandon eyepieces are assembled and tested in Raleigh, NC, to assure consistent high quality.
Leave the world of ordinary eyepieces behind and step up to Brandons!
Please note: Brandon eyepieces are threaded for filters, but Brandon uses a proprietary filter thread and not the industry-standard M28.5x0.6 filter thread. Brandon sells 1.25" color and neutral density (ND) filters that can be directly threaded to Brandon eyepieces. However, the use of other non-Brandon filters on these eyepieces requires the purchase of an optional thread conversion adapter.
Manufacturer part: VB20FT
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Brandon Ocular |
| Focal Length | 20mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 45° |
| Eye Relief (Designed) | 17mm |
| Filter Threads | Brandon-proprietary filter thread |
| Coatings | Fully Coated |
| Lens Elements | X |
| Lens Groups | X |
| Barrel Type | Smooth sided |
| Protective Plastic Storage Container | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size | Agena 42x60mm |
| End Caps | 2 |
| Field Stop Diameter | 15.75mm |
| Parfocal | Yes |
| Rubber Eye Guard | No |
| Weight | 2.9 oz |
| Country of Manufacture | USA |
