BuckeyeStargazer EAF Mounting Bracket for GSO 2" Dual Speed Crayford Focuser
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please note that this is a 3d printed plastic part.
This bracket #EAF-GSO-2CRF-M allows you to mount a ZWO Electronic Automatic Focuser (EAF) onto your standard 2" Dual Speed Crayford Focuser. Besides being sold separately, these very popular focusers can be found on many GSO telescopes and GSO-made scopes sold under the Orion, TPO, Astro-Tech, Apertura, iOptron and other brand names.
Note that this adapter is NOT for use with any GSO linear bearing focuser model.

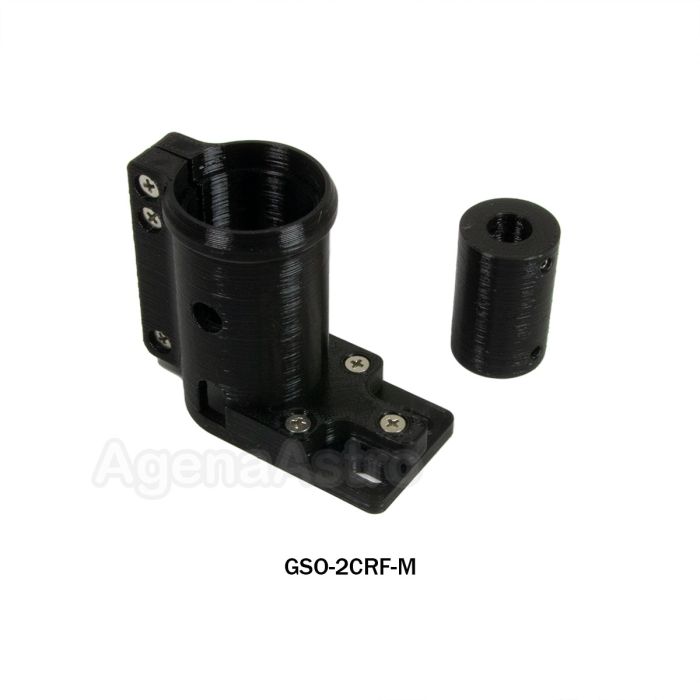

The system consists of two parts: a bracket for your telescope and a coupler that attaches the EAF onto the focuser pinion. Connections are held securely with stainless steel M3 set screws. Where necessary, bracket mounting screws are provided. The ZWO supplied M4 screws are used to attach the EAF to the bracket. Note that the user will need to have a hex key/Allen key for the M3 set screws (not provided).
Installation instructions (not included with the item):
- Remove the focuser knob
- Slide the coupler onto the focuser pinion
- Slide the bracket onto the round body of the focuser, align coupler set screws with the side access holes and tighten the three screws to clamp the bracket onto the focuser body
- Slide the EAF pinion into the coupler and fasten the EAF to the bracket using the ZWO supplied M4 bolts
- Using the side access holes on the bracket, gently tighten the coupler set screws. Do not over tighten the set screws. Note: you may have to adjust the horizontal position of either the coupler or the bracket to find the best fit.
