BuckeyeStargazer Mounting Bracket: For Pegasus Ultimate Powerbox (v1 Only)
Sku:
PAOA-BE-PUPBv1-Bracket-Bundle
Mfg #:
PUPBv1-Bracket
Item Can Ship:
Worldwide
The price depends on the chosen options
Final product price
In Stock
(Only 1 left)
Stock listed above is accurate & shown in real time
Ships by Next Business Day
Free Shipping
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
SKU:
PAOA-BE-PUPBv1-Bracket-Bundle
Mfg #:
PUPBv1-Bracket
Item Can Ship:
Worldwide
Description
Description
Note: This is a 3d-printed part.
Have you ever wanted to mount your Pegasus Pocket Powerbox, Powerbox Micro, Powerbox Advance, or Ultimate Powerbox to a Losmandy or Vixen rail, Synta dovetail shoe, etc.? Now you can with this mounting solution.
The system consists of two parts: (1) A bracket for your Powerbox and (2) one of several different attachments.

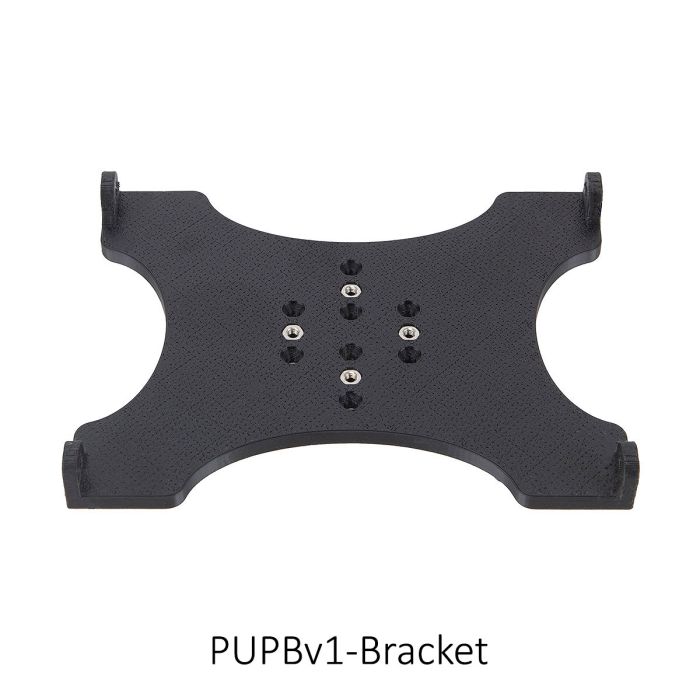

(1) The PPBA-Bracket Fits the original (v1) Ultimate Powerbox. Uses the existing enclosure screws.
(2) Attachments bolt onto the bracket and present several options. Available in black only regardless of the color shown in the photos above. Select one of the following attachment options at the time of checkout (included):
- LSaddle: Losmandy saddle that clamps onto Losmandy/"D" rails
- VSaddle: V-type saddle that clamps onto a Vixen bar/rail
- VBar: Vixen type bar that slips into a V-type clamp
- ADM-MDS-Saddle: ADM MDS saddle that clamps to a MDS style bar
- ArcaSwiss-Saddle: Arca-Swiss saddle that clamps onto an Arca-Swiss rail
- ArcaSwiss-Bar: Arca-Swiss bar that slips into an Arca-Swiss clamp
- Synta-Bar-20mm: Synta/Vixen bar that slips into a Synta/Vixen finder base, 20mm tall
- Synta-Bar-50mm: Synta/Vixen bar that slips into a Synta/Vixen finder base, 50mm tall
- MiniPC-NUC-85: Allows attachment of a NUC MiniPC with 85mm hole spacing to an Ultimate or Advance Powerbox bracket
- MiniPC-NUC-94: NUC's with special 94mm screw hole spacing (models with 8i7HNK, 8i7HVK, 6i7KYK in the model name)
- MiniPC-Beelink-32: Allows attachment of a NUC MiniPC with 32mm hole spacing to an Ultimate or Advance Powerbox bracket
- MiniPC-MeLEQ2-80: MeLE Quieter 2 and 3 MiniPC mounting attachment, 80mm hole spacing
BuckeyeStargazer's items are made of PETG plastic and can handle temperatures of up to 80°C (175°F).
Specifications
Specifications
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
