BuckeyeStargazer Raspberry Pi Case & Mounting Attachment
Sku:
PAPI-BE-Pi4b-Case-Bundle
Mfg #:
Pi4b-Case
Item Can Ship:
Worldwide
The price depends on the chosen options
Final product price
In Stock
(Only 1 left)
Stock listed above is accurate & shown in real time
Ships by Next Business Day
Free Shipping
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
SKU:
PAPI-BE-Pi4b-Case-Bundle
Mfg #:
Pi4b-Case
Item Can Ship:
Worldwide
Description
Description
Please note that this is a 3d printed plastic part.
Have you ever wanted to mount your Raspberry Pi to a tripod leg, Losmandy or Vixen rail, Arca-Swiss saddle or Synta dovetail shoe (or others)? Now you can with these lightweight yet sturdy mounting solutions.
The system consists of two parts:

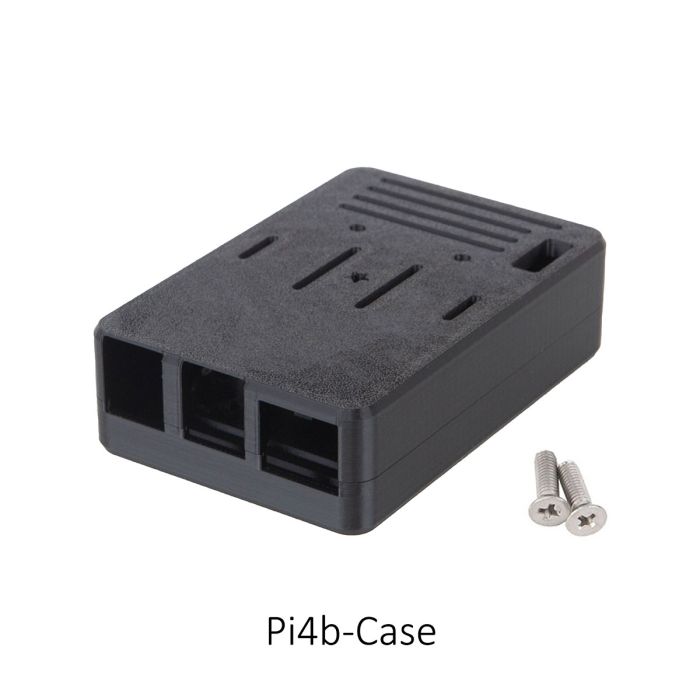

- A bracket for your Raspberry Pi 4b: Custom designed case for the Raspberry Pi 4b. The top of the case includes two mounting holes with M3 nuts for a 30mm fan (not pictured). Note that the case itself is not meant to fit the Pi with the fan inside it.
- One of several different rail or tripod attachments:
Rail Attachment Choices:
- LSaddle: Losmandy saddle that clamps onto Losmandy/"D" rails
- VSaddle: V-type saddle that clamps onto a Vixen bar/rail
- VBar: Vixen type bar that slips into a V-type clamp
- ADM-MDS-Saddle: ADM MDS saddle that clamps to a MDS style bar
- ArcaSwiss-Saddle: Arca-Swiss saddle that clamps onto an Arca-Swiss rail
- ArcaSwiss-Bar: Arca-Swiss bar that slips into an Arca-Swiss clamp
- Synta-Bar-20mm: Synta/Vixen bar that slips into a Synta/Vixen finder base, 20mm tall
- Synta-Bar-50mm: Synta/Vixen bar that slips into a Synta/Vixen finder base, 50mm tall
Tripod Attachment Choices: These attachments push fit onto a tripod leg and hold it securely. Please measure the diameter of your tripod leg carefully before ordering.
- Tripod-1.00 : 1.00" legs
- Tripod-1.20: 1.20" diameter legs (Skywatcher AZ-GT, A25, SolarQuest)
- Tripod-1.25: 1.25" legs (Skywatcher Star Adventurer, iOptron SmartStar, iPano, SkyGuider Pro, SkyTracker, SmartEQ/Cube)
- Tripod-1.50: 1.50" legs (iOptron ZEQ25, CEM25, MiniTower, iEQ30, SkyGuide)
- Tripod-1.75: 1.75" legs (iOptron LiteRoc; Sky-Watcher AZ-EQ5/EQM-35/HEQ5)
- Tripod-2.00: 2.00" legs (Skywatcher AZ EQ6, EQ6-RPro; iOptron MiniTower-Pro, iEQ45/CEM60; Meade Standard Field Tripod; Celestron Heavy Duty Tripod, AVX Tripod, CGX Tripod)
- Tripod-2.36: 2.36" diameter legs (Skywatcher EQ8)
- Tripod-2.75: 2.75" diameter legs (Celestron CGX-L)
- Tripod-3.00: 3.00" diameter legs (Meade Giant Field Tripod; Losmandy HD Tripod)
- Tripod-TriPier: iOptron Tri-Pier (NOTE: This will NOT fit the Tri-Pier 360)
- Tripod-LosLW-v2: Losmandy LW Tripod (2011 and later)
- Tripod-BerlebachPlanet : Berlebach Planet Tripod
BuckeyeStargazer's items are made of PETG plastic and can handle temperatures of up to 80°C (175°F).
Specifications
Specifications
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
Reviews / Q&A
Reviews / Q&A
Description
Reviews / Q&A
Description
Please note that this is a 3d printed plastic part.
Have you ever wanted to mount your Raspberry Pi to a tripod leg, Losmandy or Vixen rail, Arca-Swiss saddle or Synta dovetail shoe (or others)? Now you can with these lightweight yet sturdy mounting solutions.
The system consists of two parts:
- A bracket for your Raspberry Pi 4b: Custom designed case for the Raspberry Pi 4b. The top of the case includes two mounting holes with M3 nuts for a 30mm fan (not pictured). Note that the case itself is not meant to fit the Pi with the fan inside it.
- One of several different rail or tripod attachments:
Rail Attachment Choices:
- LSaddle: Losmandy saddle that clamps onto Losmandy/"D" rails
- VSaddle: V-type saddle that clamps onto a Vixen bar/rail
- VBar: Vixen type bar that slips into a V-type clamp
- ADM-MDS-Saddle: ADM MDS saddle that clamps to a MDS style bar
- ArcaSwiss-Saddle: Arca-Swiss saddle that clamps onto an Arca-Swiss rail
- ArcaSwiss-Bar: Arca-Swiss bar that slips into an Arca-Swiss clamp
- Synta-Bar-20mm: Synta/Vixen bar that slips into a Synta/Vixen finder base, 20mm tall
- Synta-Bar-50mm: Synta/Vixen bar that slips into a Synta/Vixen finder base, 50mm tall
Tripod Attachment Choices: These attachments push fit onto a tripod leg and hold it securely. Please measure the diameter of your tripod leg carefully before ordering.
- Tripod-1.00 : 1.00" legs
- Tripod-1.20: 1.20" diameter legs (Skywatcher AZ-GT, A25, SolarQuest)
- Tripod-1.25: 1.25" legs (Skywatcher Star Adventurer, iOptron SmartStar, iPano, SkyGuider Pro, SkyTracker, SmartEQ/Cube)
- Tripod-1.50: 1.50" legs (iOptron ZEQ25, CEM25, MiniTower, iEQ30, SkyGuide)
- Tripod-1.75: 1.75" legs (iOptron LiteRoc; Sky-Watcher AZ-EQ5/EQM-35/HEQ5)
- Tripod-2.00: 2.00" legs (Skywatcher AZ EQ6, EQ6-RPro; iOptron MiniTower-Pro, iEQ45/CEM60; Meade Standard Field Tripod; Celestron Heavy Duty Tripod, AVX Tripod, CGX Tripod)
- Tripod-2.36: 2.36" diameter legs (Skywatcher EQ8)
- Tripod-2.75: 2.75" diameter legs (Celestron CGX-L)
- Tripod-3.00: 3.00" diameter legs (Meade Giant Field Tripod; Losmandy HD Tripod)
- Tripod-TriPier: iOptron Tri-Pier (NOTE: This will NOT fit the Tri-Pier 360)
- Tripod-LosLW-v2: Losmandy LW Tripod (2011 and later)
- Tripod-BerlebachPlanet : Berlebach Planet Tripod
BuckeyeStargazer's items are made of PETG plastic and can handle temperatures of up to 80°C (175°F).
