BuckeyeStargazer SCT Mounting Brackets for ZWO EAF
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Please note that this is a 3d printed plastic part.
This bracket allows you to mount a ZWO Electronic Automatic Focuser (EAF) onto your telescope.

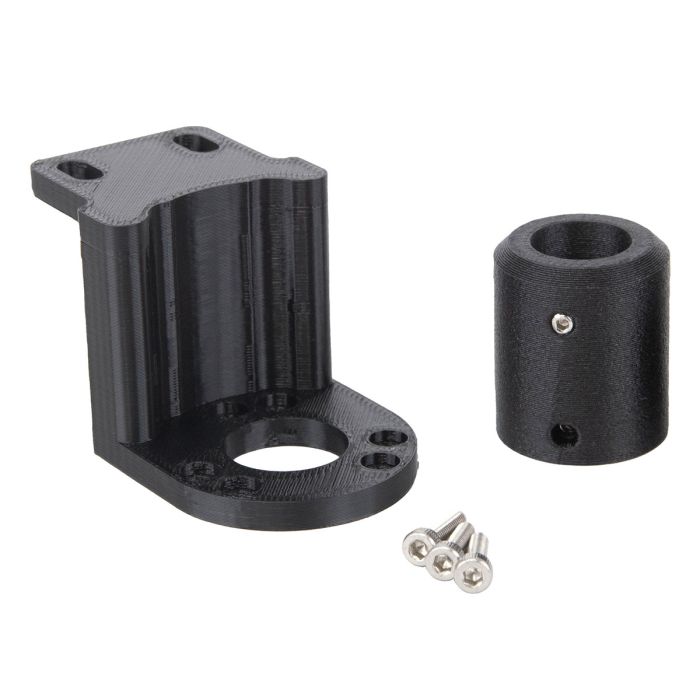

The system consists of two parts: a bracket for your telescope and a coupler that attaches the EAF onto the focuser pinion. Connections are held securely with stainless steel M3 set screws. Where necessary, bracket mounting screws are provided. The ZWO supplied M4 screws are used to attach the EAF to the bracket. Note that the user will need to have a hex key/Allen key for the M3 set screws (not provided).
Brackets:
- EAF-C6.8.9.25-RASA8: ZWO EAF bracket for modern Celestron C6/C8/C9.25/RASA8 scopes that have 27mm between focuser mounting screws. Mounting screws included.
- EAF-C11.14-RASA11v2: ZWO EAF bracket for modern Celestron C11/C14/RASA11v2 scopes that have 34mm between focuser mounting screws. Mounting screws included. Not for use with RASA11v1.
- EAF-C6.8.9.25-Classic: ZWO EAF bracket for classic Celestron C6/C8/C9.25 scopes that have 23mm between focuser mounting screws. No mounting screws included (use existing Celestron screws to attach the bracket).
- EAF-C11.14-Classic: ZWO EAF bracket for classic Celestron C11/C14 scopes that have 34mm between focuser mounting screws. No mounting screws included (use existing Celestron screws to attach the bracket).
- EAF-C5: ZWO EAF bracket for Celestron C5.
- EAF-MLXGPS: ZWO EAF bracket for Meade LX200GPS scopes. Mounting screws included.
- EAF-MLXACF: ZWO EAF bracket for Meade LX200ACF ACF scopes. Mounting screws included.
- EAF-MLXClassic: ZWO EAF bracket for Meade LX200 Classic scopes. Mounting screws included.
- EAF-MLX850: ZWO EAF bracket for Meade LX600 and LX850 scopes.
Quick focus release brackets:
Utilizing a belt drive system and innovative push fit flexible drive gear knob, the quick brackets will allow you to easily disengage the belt drive for manual focusing. This is especially handy when switching between configurations with different focal lengths.
- EAF-C6.8.9.25.R8-QUICK: EAF QUICK bracket for modern Celestron C6/C8/C9.25/RASA8 scopes that have 27mm between focusers mounting screws.
- EAF-C11.14.R11v2-QUICK: EAF QUICK bracket for modern Celestron C11/C14/RASA11v2 scopes that have 34mm between focuser mounting screws.
- EAF-C6.8.9.25-Classic-QUICK: EAF QUICK bracket for classic Celestron C6/C8/C9.25 scopes that have 23mm between focuser mounting screws.
- EAF-C11.14-Classic-QUICK: EAF QUICK bracket for classic Celestron C11/C14 scopes (non-Fastar) that have 34mm between focuser mounting screws.
See pictures for illustrations of "modern" vs "classic" Celestron focuser mounting brackets.
Celestron "classic" note: A few classic models have a rectangular recess around the focuser. The EAF bracket will fit, but you will need to mount the EAF and coupler onto the bracket first, then put the the bracket onto the focuser.
