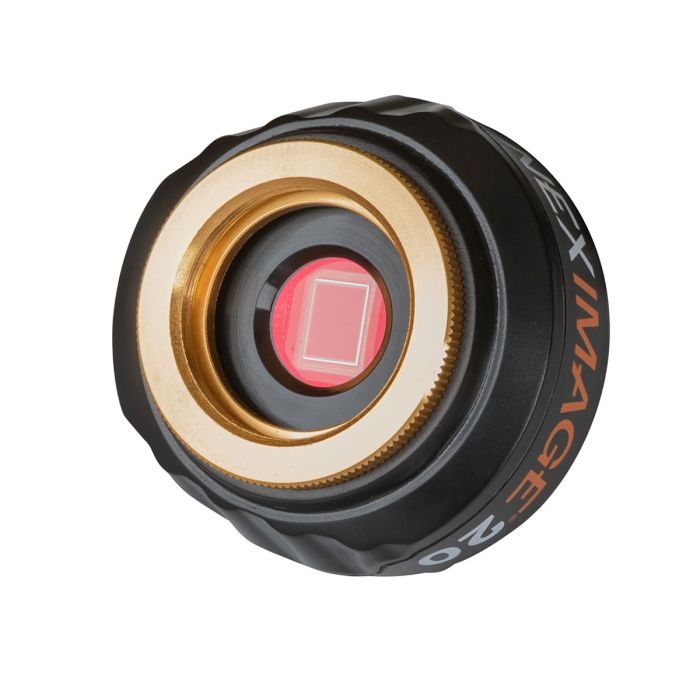

Celestron NexImage 20 Solar System Color Imaging Camera
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- CAPTURE ULTRA-HIGH-RES IMAGES & VIDEO: Intuitive yet powerful, this camera captures detailed 20 MP (5240 x 3840) stills and smooth AVI video of the planets, Moon, and Sun (with a solar filter). Easily stack your frames, create high-quality prints, or share your results online.
- HIGH-PERFORMANCE SENSOR FOR SHARPER DETAIL: The AR2020 back-illuminated CMOS sensor features 1.4 µm pixels on a 7.3 x 5.4 mm sensor. With 8.7 ke⁻/lux-sec sensitivity, it captures crisp detail even in challenging seeing conditions.
- INSTANTLY COMPATIBLE WITH YOUR TELESCOPE: NexImage 20 slides directly into your telescope’s 1.25” eyepiece holder using the included nosepiece—no adapters needed. Capture sharp, high-resolution photos and smooth planetary videos right at the focal plane.
- ZOOM IN ON THE DETAIL WITH REGION OF INTEREST (ROI): Crop the frame to capture just your target—perfect for small objects like planets. ROI increases frame rate for smoother video, reduces file size, and speeds up stacking and post-processing.
- EASY USB CONNECTION TO YOUR COMPUTER: Simply connect the NexImage 20 to your Windows PC via the included USB-A to USB-C cable.
- DUAL-PURPOSE: IMAGING + AUTOGUIDING: NexImage 20 doubles as a capable autoguider, helping your telescope stay locked on target during long-exposure astrophotography. For advanced users with additional guiding hardware, it adds precision tracking to your setup.
- iCAP SOFTWARE INCLUDED: Capture, preview, and save your images and video with iCap—Celestron’s dedicated imaging software for NexImage. Easily adjust exposure, gain, and frame rate, and take full control of your imaging workflow from your Windows PC.
Capture your own stunning images of the planets, Moon, and Sun (with solar filter) with the Celestron NexImage 20. Our team engineered this high-performance USB camera for serious astrophotography. With a powerful 20 MP back-illuminated CMOS sensor, NexImage 20 captures ultra-high-resolution images at 5240 x 3840 pixels, giving you crisp, detailed results ready for stacking, printing, and sharing online.
NexImage 20 is one of the best values in Solar System imaging today, delivering impressive detail and producing images that rival those from cameras costing hundreds more. It's an excellent way to get started with astroimaging—even from light-polluted city skies. If you can see a planet through your telescope, you can capture it with NexImage 20!
Advanced Sensor Technology
At its core is the AR2020 sensor, optimized for low-light conditions with 1.4 µm square pixels on a 7.3 x 5.4 mm sensor. This combination delivers impressive sensitivity (8.7 ke⁻/lux-sec) and allows you to capture fine surface features, even when atmospheric seeing isn’t ideal.
Includes a free download of Celestron’s iCap software to fine-tune exposure, gain, frame rate, and more—unlocking the sensor’s full potential.
Easy Installation
Even if you’re brand new to astroimaging, getting started with NexImage 20 is fast and straightforward. After installing the driver and iCap software, assemble the camera by threading it onto the included 1.25” nosepiece. Then insert it into your telescope’s eyepiece holder, connect the USB-C cable to the camera, and plug the USB-A end into your PC. That’s it; you’re ready to capture your first high-resolution images and videos!
Region of Interest for Speed & Efficiency
Imaging the Full Moon or Sun will use a large portion of the NexImage 20 sensor. But if you’re pointing your telescope at the planets, the Region of Interest (ROI) feature is a game changer. Instead of using the entire sensor, ROI lets you crop to focus on just your target. This boosts frame rates for smoother video while reducing file size. It also speeds up post-processing, especially when you’re stacking multiple frames.
Built-In Autoguiding Capability
Beyond imaging, NexImage 20 can perform double-duty in your advanced astroimaging kit. Use it as a precise autoguider for long-exposure, deep-sky astrophotography. With additional guiding hardware (not included), NexImage 20 helps advanced users lock onto their target and maintain tracking accuracy over time.
Specifications
- Color or Monochrome: Color
- Power Requirements: Powered by USB
- USB: High-Speed USB 3.0, cable 10' length
- Camera Housing Construction: ABS with aluminum connection ring
- Optical Window: IR Cutoff Filter
- Pixel Size: 1.4 micron square
- A/D Conversion: 10-bit RAW
- Imaging Sensor: Sony AR2020 Back-Illuminated CMOS
- Camera Resolution (in Pixels): 5240x3840
- Total Number of Pixels: 20 MP
- Mounting: 1.25" barrel and C-thread
- Sensor Size: 7.3mm x 5.4mm (9mm diagonal)
- Shutter: Electronic Rolling Shutter
- Software Compatibility: iCap | IC Capture | DirectShow | oaCapture
- Operating Environment: -40° - 104°F (-40° - 40°C)
- Sub-Framing: Hardware ROI
- Exposure Range: 0.0001 to 10 seconds
- Frames per second: Up to 90 (8 fps at full frame)
- Back Focus Distance: 13.1mm (0.51") with nosepiece, 10.6mm (0.41") without nosepiece
- Recommended/Best Usage: Getting started in lunar, solar, and planetary imaging
- Weight: 2.0 oz (57 g)
- Included Items: NexImage 20 camera body| 1.25" nosepiece| USB cable| Instruction manual
- California Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
