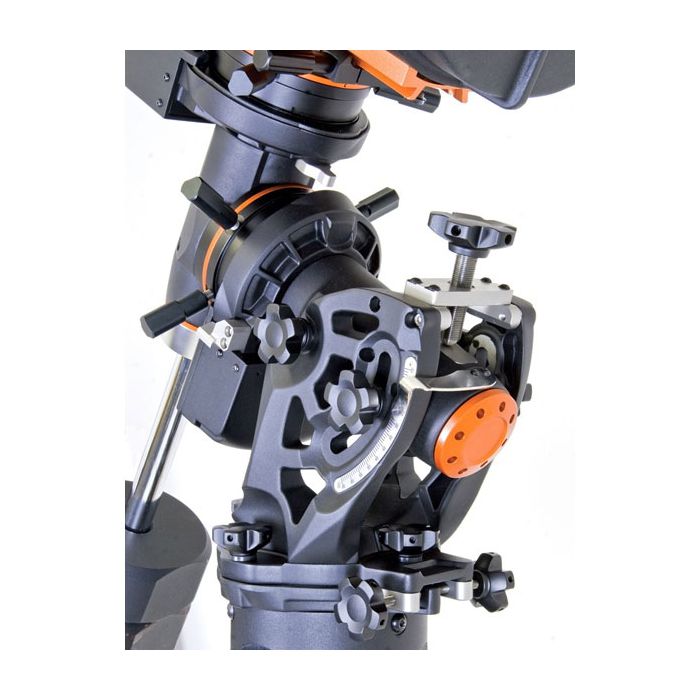

Celestron CGE Pro Computerized Mount without Tripod
Sku:
ZZPAMT-ZZCE-91529
Mfg #:
91529
$4,499.00
Out of Stock
Availability: Item has been discontinued by the manufacturer
Free Shipping
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
SKU:
ZZPAMT-ZZCE-91529
Mfg #:
91529
Description
Description
GENERAL FEATURES
- Holds a maximum instrument capacity of 90 lbs
- Smooth +/- 5 arc second typical unguided periodic error, which can be further reduced with PPEC
- Permanent Programmable Periodic Error Correction (PEC) - corrects for periodic tracking errors inherent to all worm drives
- CGE PRO computerized Equatorial mount
- One 22 lbs counterweight
- Weighs 107 lbs
- Tripod not included, ready to bolt on to your custom pier
COMPUTERIZED MOUNT FEATURES
- Proven NexStar computer control technology
- 40,000 object database with over 100 user-definable objects and expanded information on over 200 objects
- New All-Star Polar Alignment routine for both Northern and Southern Hemispheres
- Software Features include: Database Filter Limits, Hibernate, five alignment methods and user-defined slew limits
- Custom Rate 9 feature allows you set maximum slew rate
- Tandem mode allows you to star align the mount even when positioned for tandem scope use
- Flash upgradeable hand control software and motor control units for downloading product updates over the Internet
- Custom database lists of all the most famous deep-sky objects by name and catalog number; the most beautiful double, triple and quadruple stars; variable stars; solar systems; objects and asterisms
- Double line, 16-character Liquid Crystal Display Hand Control with backlit LED buttons for easy operation of goto features
- 12 VDC Servo Motors with integrated optical encoders
- Drive Motors - High quality motors with seven slot skewed armature to minimize magnetic cogging for quiet operation and long life. Precision made cut-steel gears in gearbox for improved tracking precision
- Bearing and Shaft - Main shafts are made from 1.57" diameter steel tubing with .40" wall thickness with two preloaded 2.68" O.D. tapered roller bearings on each axes
- Precision worm drive system - .75" pitch dia. precision made steel worm preloaded with two .87" OD ball bearings to minimize run-out (a source of periodic error). 255 tooth 6" pitch dia. precision made worm wheel with enveloping brass teeth
- Spring loaded DEC worm to minimize backlash and for easy guiding
- 4 point RA and DEC clutch system for no-slip pointing precision
- Autoguide port, PC port and Auxiliary ports located on the electronic pier for long exposure astrophotography
- One 4.72" O.D. thrust bearing and one 4.13" O.D. thrust bearing on each axes provide a large thrust surface for additional stability
- Rugged 9-pin thread on motor cables
- Latitude range: 10° to 65° Northern or Southern Hemispheres
- RS-232 communication port on hand control to control the telescope via a personal computer
- Includes NexRemote telescope control software, for advanced control of your telescope via computer
- GPS-compatible with optional SkySync GPS Accessory (93969)
Specifications:
- EQ Mount Weight 75 lbs (34 kg)
- Counterweight Bar 5 lbs (2.27 kg)
- Weight of Counterweights 1 x 22 lbs
- Weight (lbs) 154 lbs (70 kg)
- Payload Capacity 90 lbs (41 kg)
- Motor Drive DC Servo motors with encoders, both axes
- Slew Speeds Nine slew speeds 5.5 deg/s, 2 deg/s, 0.5 deg/s, 64x, 16x, 8x, 4x, 1x, 0.5x
- Tracking Rates Sidereal, Solar and Lunar
- Tracking Modes EQ North and EQ South
- Alignment Procedures 2-Star Align, Solar System Align, Last Alignment, Quick Align, 1-Star Align,
- Computer Hand Control Double line, 16 character Liquid Crystal Display; 19 backlit LED buttons
- Database 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
- Power Requirements 12 VDC 3.5A
- Internal Clock Yes
- GPS Optional SkySync GPS Accessory
Product carries full one year Meade factory limited warranty (within US/Canada only).
Manufacturer part number: 91529
