Daystar Filters Flat Cap Imaging Diffuser - Available in 12 Sizes
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Warning: The Daystar Flat Cap is NOT a solar filter. Not for use in a concentrated beam. Eye or equipment damage will result unless used in combination with a safe solar filter or solar telescope. FlatCap must be the first component to encounter light.

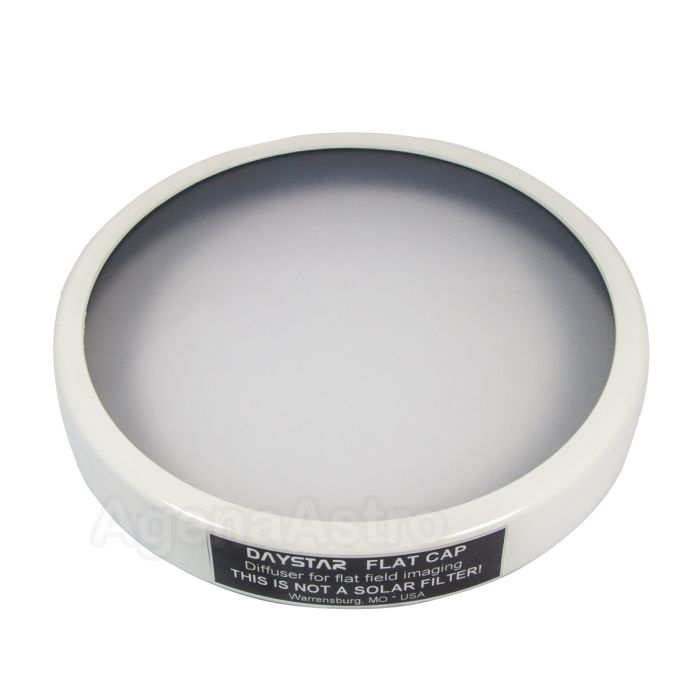

The DayStar FlatCap is a Gaussian diffuser that is temporarily installed over the front of your telescope when taking flat field reference images. By strongly blurring the Sun, the only details you will see in the reference image are from defects in your imaging train that can be removed in software.
FlatCap is sold by inside diameter of the mounting cap. Measure the outside diameter (OD) of the frontmost component of your telescope or ERF, and then round up to the next larger size. For example, a telescope with a 160mm front should use model FC170, and then optionally install the included felt pads for a secure fit. Do not buy based on the aperture of your telescope. Measure the front of the tube/dewshield/ERF very carefully before purchase to select the correct size.
Specifications:
- Construction: Spun Aluminum mounting ring with polymer diffuser
- Intensity distribution: Gaussian
- Divergence angle: 4 degrees FWHM
- Exposure time adjustment factor: 100x longer
- Maximum field of view: 1 degree with Sun backlight
- Wavelength transmission range: 350-800nm
- Operating temperature: -10 to 100°C (14-212°F)
Size Table:
- FC90 FlatCap: fits 80-89mm tube/dewshield OD or 63mm ERF
- FC100 FlatCap: fits 90-99mm tube/dewshield OD
- FC110 FlatCap: fits 100-109mm tube/dewshield OD or 80mm ERF
- FC120 FlatCap: fits 110-119mm tube/dewshield OD or 90mm ERF
- FC130 FlatCap: fits 120-129mm tube/dewshield OD or 100mm ERF
- FC140 FlatCap: fits 130-139mm tube/dewshield OD
- FC150 FlatCap: fits 140-149mm tube/dewshield OD
- FC160 FlatCap: fits 150-159mm tube/dewshield OD or 130mm ERF
- FC170 FlatCap: fits 160-169mm tube/dewshield OD
- FC180 FlatCap: fits 170-179mm tube/dewshield OD or 150mm ERF
- FC190 FlatCap: fits 180-189mm tube/dewshield OD
- FC210 FlatCap: fits 190-209mm tube/dewshield OD
Note: Newton’s Rings or intereference fringes will not be corrected by flat fields; use Daystar's Interference Eliminator adapter to remove these before performing flat field correction.
