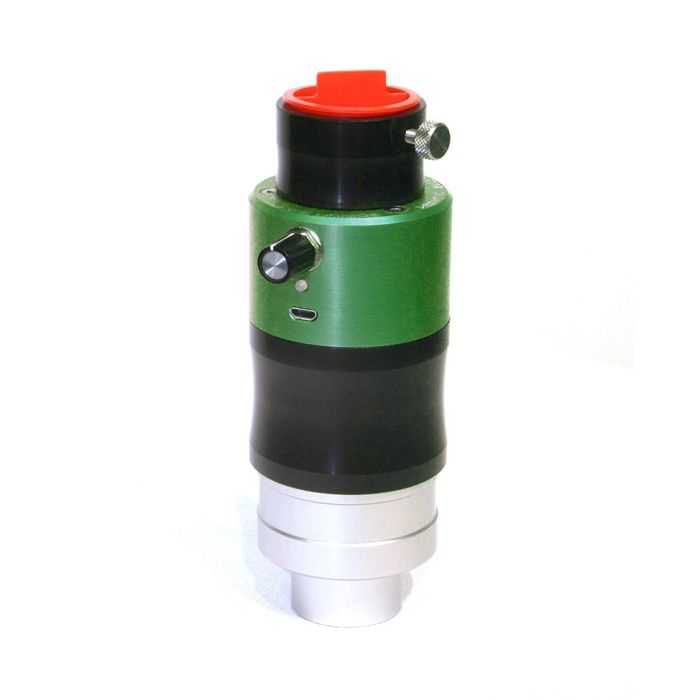

DayStar Original Quark Eyepiece Solar Filter for Refractors: Magnesium I b2 Line Model
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
By popular demand, we are introducing a MgI b2 line version of the Quark, for use in refractors F/4-F/9. Magnesium, a bright green color is easily visible in the center of the human eye's highest sensitivity. Studies of the Mg line relate to boundary layers between granulation and spicule. In addition to heavy surface mottling and high contrast granulation, the Mg line also shows plague in equal or higher detail as the Calcium line. Magnesium wavelength studies will reveal Zeeman splitting in absorption of magnetized areas of active regions.
This new, All-In-One design marries high quality components of a telecentric barlow, adapters, snouts and Daystar MgI b2 line filter into one simple assembly. Through design efficiency and optimization, now users can enjoy the known high quality optics of DayStar* at an affordable price.
For use on refractors of F/4 to F/9, the user needn't worry about configurations. Just insert in your diagonal, add an eyepiece and view. The QUARK contains a custom Daystar Instruments 4.2X telecentric barlow lens fully optimized in coatings and optical design. This highly specialized telecentric lens offers superior field flatness. Exact filter bandpass will vary based on final telescope application. No specific FWHM bandpass is designated, however the etalon will be approximately 0.3-0.5 angstroms. Now observers can buy a filter based on their desired observing goals instead of their budget. The fully optimized design eliminates the need for any adapters. It's all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark can now operate all day off a small, palm-sized optional battery pack.
*The QUARK assembly is a product of DayStar Instruments, using DayStar Filters' Fabry Perot etalon technology.
- 1.25" or 2.0" combo eyepiece snouts with safety indent slot directly into your diagonal
- Standard 1.25 eyepiece drawtube output with optional 2" and SCT accessories available.
- Brass compression ring to protect eyepiece. Uses USB power, 5v 1.5amp Includes 90-240VAC wall adapter with international plug adapters.
- Tuning knob allows wing shifting +/- 0.5Å with detents at every 0.1Å LED indicator for power, warming, ready, fault 5 year warranty,
- Optional 8-hour battery pack available. Integrated, fully baffled 2 element telecentric 4.2X barlow
- Integrated 12mm blocking filter 21mm clear filter aperture
- Best performance with F/4 - F/8 refractors
- Full disk viewing possible on refractors up to ~450mm focal length refractors
- No aperture limitations. May be used on larger refractors for higher magnification views
- Ships in convenient Twist-Case for safe, dust-free storage.
- Not suited for off-axis application.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
By popular demand, we are introducing a MgI b2 line version of the Quark, for use in refractors F/4-F/9. Magnesium, a bright green color is easily visible in the center of the human eye's highest sensitivity. Studies of the Mg line relate to boundary layers between granulation and spicule. In addition to heavy surface mottling and high contrast granulation, the Mg line also shows plague in equal or higher detail as the Calcium line. Magnesium wavelength studies will reveal Zeeman splitting in absorption of magnetized areas of active regions.
This new, All-In-One design marries high quality components of a telecentric barlow, adapters, snouts and Daystar MgI b2 line filter into one simple assembly. Through design efficiency and optimization, now users can enjoy the known high quality optics of DayStar* at an affordable price.
For use on refractors of F/4 to F/9, the user needn't worry about configurations. Just insert in your diagonal, add an eyepiece and view. The QUARK contains a custom Daystar Instruments 4.2X telecentric barlow lens fully optimized in coatings and optical design. This highly specialized telecentric lens offers superior field flatness. Exact filter bandpass will vary based on final telescope application. No specific FWHM bandpass is designated, however the etalon will be approximately 0.3-0.5 angstroms. Now observers can buy a filter based on their desired observing goals instead of their budget. The fully optimized design eliminates the need for any adapters. It's all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark can now operate all day off a small, palm-sized optional battery pack.
*The QUARK assembly is a product of DayStar Instruments, using DayStar Filters' Fabry Perot etalon technology.
- 1.25" or 2.0" combo eyepiece snouts with safety indent slot directly into your diagonal
- Standard 1.25 eyepiece drawtube output with optional 2" and SCT accessories available.
- Brass compression ring to protect eyepiece. Uses USB power, 5v 1.5amp Includes 90-240VAC wall adapter with international plug adapters.
- Tuning knob allows wing shifting +/- 0.5Å with detents at every 0.1Å LED indicator for power, warming, ready, fault 5 year warranty,
- Optional 8-hour battery pack available. Integrated, fully baffled 2 element telecentric 4.2X barlow
- Integrated 12mm blocking filter 21mm clear filter aperture
- Best performance with F/4 - F/8 refractors
- Full disk viewing possible on refractors up to ~450mm focal length refractors
- No aperture limitations. May be used on larger refractors for higher magnification views
- Ships in convenient Twist-Case for safe, dust-free storage.
- Not suited for off-axis application.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
DayStar Original Quark Eyepiece Solar Filter for Refractors: Magnesium I b2 Line Model # DSZMG
