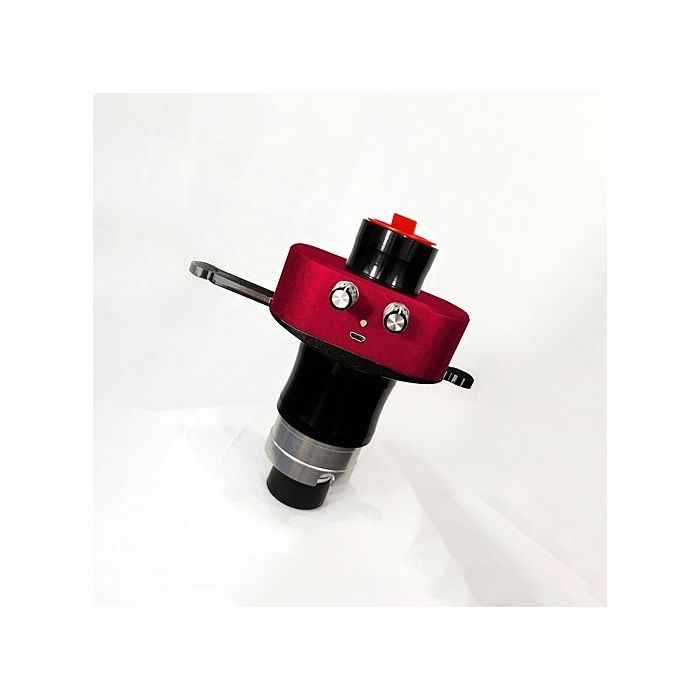

DayStar Quark Gemini Switchable Dual Bandpass Prominence and Chromosphere Filter
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Daystar Quark Gemini brings the best contains both Prominence and Chromosphere bandpass filters for instant slide-action switching between either view.
- Now, observers can enjoy the best of both options in one easy to use tool with no equipment swapping or refocusing of any kind.
- Push the slider arm side to side like in an eye exam to see the broad stroked prominences of wider bandpass, then the high contrast of narrow bandpass.
Quark Gemini offers BOTH "prominence" or "chromosphere" all-in-one.
For use on refractors of F/4 to F/8**, the user needn't worry about configurations. Just insert in your diagonal, add an eyepiece and view.
The patent pending QUARK* contains a custom Daystar Instruments 4.2X telecentric barlow lens fully optimized in coatings and optical design specifically for the Hydrogen Alpha wavelength. This highly specialized telecentric lens offers superior field flatness.
Exact filter bandpass will vary based on final telescope application, so QUARK* assemblies are qualified with one element to show best prominences and the other to show best surface contrast (chromosphere). No specific FWHM bandpass is designated.
Outreach astronomers can use the prom vs chrom switch to demonstrate each feature with an extra teaching moment about wing shift going on in fast moving prominences. Imagers can use the same switch to create comparison images without the need to exchange equipment or refocus with short lived features.
The fully optimized design eliminates the need for any adapters. It's all combined in one lightweight eyepiece sized device. The new, compact design configuration eliminates unnecessary components, weight and associated costs. We even reduced power consumption, so the Quark* can now operate all day off a small, palm-sized optional battery pack. Baffles have been added to increase contrast and AR coatings are optimized for the 656nm wavelength.
Features:
- Contains TWO separate Fabry Perot Etalon elements which may be shifted safely via push-pull into view.
- A hand-matched pair of narrower (<0.5Å FWHM) and wider (>0.6Å FWHM) etalons shall be SE grade and independently tuneable.
- Ships with male combo 1.25" or 2.0" combo eyepiece snouts with safety indent slot directly into your diagonal
- Ships with standard 1.25 female eyepiece drawtube output. Optional interchangeable 2" and SCT accessories available.
- Brass compression ring to protect eyepiece.
- Uses USB power, 5v 2.0amp
- Includes 90-240VAC wall adapter with international plug adapters.
- Two tuning knobs allow wing shifting +/- 0.5Ã with detents at every 0.1Ã
- LED indicator for power, warming, ready, fault
- 5 year warranty,
- Optional 8-hour battery pack available.
- Integrated, fully baffled 2 element telecentric 4.2X barlow optimized for 656nm
- Integrated 12mm blocking filter
- 22mm clear filter aperture
- Best performance with F/4 - F/8 refractors
- Full disk viewing possible on refractors up to ~450mm focal length refractors
- No aperture limitations. May be used on larger refractors for higher magnification views
- Ships in watertight pelican style equipment case for dust & humidity-free storage.
- Not suited for off-axis application.
Manufacturer part number: DSZ4G
