Eclipse Makview4 105mm f/13 Maksutov-Cassegrain Telescope
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
| "..an example of optical excellence.." "..views were very sharp and full of contrast, bearing high magnifications well." "..well suited to lunar and planetary observation...as well as high resolution imaging." - Ade Ashford on the Makview6 in First Light - A look at this month's Hottest new product, BBC Sky at Night magazine, U.K., Dec 2005 Click here to read this review |
Maksutov-Cassegrain (Mak) telescopes are versatile optical instruments. They provide very sharp, high contrast images from a compact tube. In addition to astronomical uses, Maks are also popular for terrestrial/wildlife viewing.

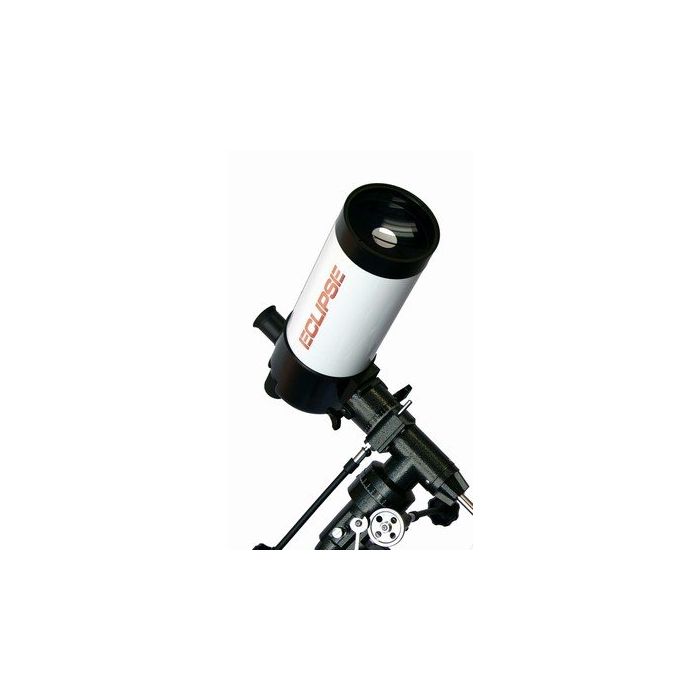

Eclipse's MAKVIEW4 is a splendid little 105mm f/13 telescope. It uses high quality BK7 glass and features a wavefront of 1/5 wave (corresponding to a surface accuracy of 1/10 wave) or better. This Mak is capable of high magnification views as well. Planets and Lunar targets are commonly viewed above 200x.
Physical finish and construction are among the best you will find at this price. The integrated flip mirror system is also perfect for attaching a digital camera and viewing through an eyepiece at the same time. The telescope comes complete with 2 high quality plossl eyepieces (6.5mm and 20mm), a 6 x 30 finderscope, and an internal flip diagonal system. The Eclipse MAKVIEW4 telescope can also be used as a spotting scope.
This telescope is offered in an OTA package with the listed accessories only. However, it can be easily mounted on photo-tripods capable of carrying its weight or on many of the popularly available telescope mounts such as those from Celestron, Synta, Vixen, etc. (not included).
| Primary mirror diameter | 105mm |
| Focal length, f ratio | 1365mm, f/13 |
| Near focusing distance | 11'-6" (3.5m) |
| Theoretical resolution | 1.29" |
| Limiting visual stellar magnitude | 12.1 |
| Image scale | 1.07 degree/inch |
| Coatings | Transmitting mirror - MgF2; Correcting Lens - aluminum anti-reflection coating |
| Visual back | 1.25" |
| Finderscope | 6x30mm |
| Diagonal | 1.25" w/Flip Mirror System |
| Eyepiece(s) | 20mm (68x) and 6.5mm (210x) Plossl eyepieces |
| Physical secondary mirror obstruction | 33mm (31.4% by diameter) |
| Optical tube dimensions (diameter x length) | 5" x 13" |
| Weight | 4.4lbs (OTA only) |
| Other included items/ features | Aluminum case (with 2 locking keys) |
