Explore Scientific 68&
Availability: Item has been discontinued by the manufacturer
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
About Explore Scientific's 68-degree Argon-purged Waterproof Eyepieces:
Using advanced computer design, combinations of low dispersion and high refractive index optical glasses, and durable multilayer deposition coatings, Explore Scientific 68° Series Argon-Purged Waterproof extreme wide field eyepieces are optimized to produce high contrast, high resolution, and superior flat field characteristics. The visual effect of these eyepieces with their long eye-relief and their 68° apparent field is truly a full-immersion experience. The 68° Series eyepieces come with a removable and foldable soft silicone rubber eyecup for the comfort of the observer, and as experienced astronomers know, eye comfort is critical when trying to observe at the visual limits of the telescope.
Protection from the Outdoors - By making the eyepiece body Argon-purged, the waterproof eyepiece internal elements will remain as pristine as the day they were assembled.
Argon atoms are "larger" than that of Nitrogen and therefore they are less likely to "leak" or diffuse their way through the seals over the life of the eyepiece. The atomic radius of Argon is larger than Nitrogen by 0.13 angstroms and has a larger atomic volume by 11.2 cubic centimeters/molecule. Argon also has superior inertness vs Nitrogen (i.e. forming few or no chemical compounds with other elements) that prevents adverse reactions with eyepiece components and therefore extends the longevity of the internal components, and also prevents chemical reactions with other elemental contaminants that may be introduced through a weakened seal. And finally, because Argon is less conductive of heat than Nitrogen, Argon cools slower thereby buffering the effects of rapid temperature changes of the optics.
The sealed, dry environment is impervious to internal fogging and contaminants such as fungus growing in between the lens elements. Explore Scientific's waterproof eyepiece is easier to clean, and there is no risk of cleaning solution migrating from the top of the lens and seeping around edges to be trapped in between elements. To insure a perfect seal, every eyepiece is tested in one meter of water for 30 minutes.

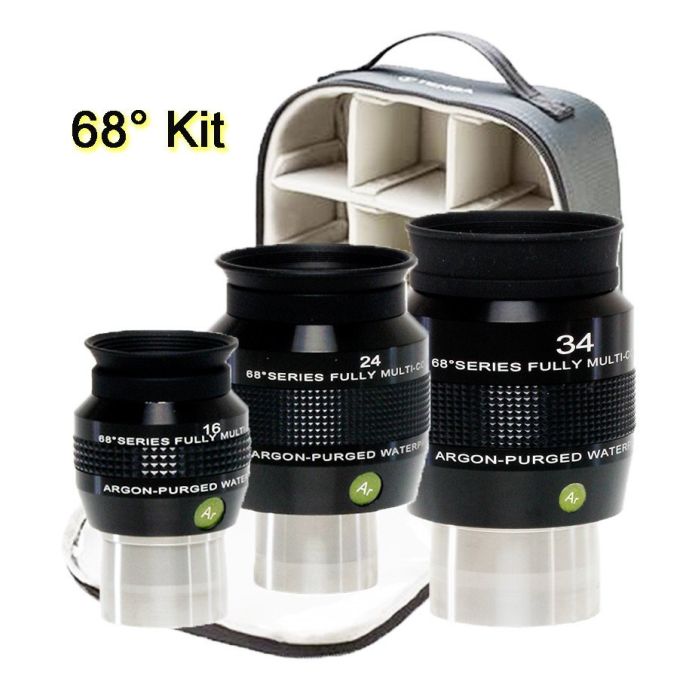

This kit includes a 68° 16mm, a 68° 24mm and a 68° 34mm Argon-purged waterproof eyepiece, along with a soft sided case. These eyepieces are individually boxed in Explore Scientific's Will Tirion "famous" star map box along with the soft-sided case inside an outer box.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Explore Scientific 68° Argon-Purged Waterproof Series |
| Focal Length | 16mm, 24mm, and 34mm |
| Barrel Size | 16mm - 1.25", 24mm - 1.25", and 34mm - 2" |
| Apparent Field of View (Mfg Specified) | 68° |
| Eye Relief (Designed) | 16mm - 11.9mm, 24mm - 18.4mm, and 34mm - 26.4mm |
| Coatings | EMD (Enhanced Multilayer Deposition) Coatings |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Blackened Lens Edges | Yes |
| Barrel Type | Tapered barrel |
| Optical Design | 6 Elements; Combination of: Dense Crown, Light Crown, Dense Flint, and Lanthanum Optical Glasses |
| End Caps | 2 |
| Parfocal | Yes |
| Rubber Eye Guard | Rubber Folding Type |
| Weight | 16mm - 5.5oz, 24mm - 11.7oz, and 34mm - 1lb-8oz |
| Country of Manufacture | China |
| Hide Found a better Shipped Price on Frontend? | No |
About Explore Scientific's 68-degree Argon-purged Waterproof Eyepieces:
Using advanced computer design, combinations of low dispersion and high refractive index optical glasses, and durable multilayer deposition coatings, Explore Scientific 68° Series Argon-Purged Waterproof extreme wide field eyepieces are optimized to produce high contrast, high resolution, and superior flat field characteristics. The visual effect of these eyepieces with their long eye-relief and their 68° apparent field is truly a full-immersion experience. The 68° Series eyepieces come with a removable and foldable soft silicone rubber eyecup for the comfort of the observer, and as experienced astronomers know, eye comfort is critical when trying to observe at the visual limits of the telescope.
Protection from the Outdoors - By making the eyepiece body Argon-purged, the waterproof eyepiece internal elements will remain as pristine as the day they were assembled.
Argon atoms are "larger" than that of Nitrogen and therefore they are less likely to "leak" or diffuse their way through the seals over the life of the eyepiece. The atomic radius of Argon is larger than Nitrogen by 0.13 angstroms and has a larger atomic volume by 11.2 cubic centimeters/molecule. Argon also has superior inertness vs Nitrogen (i.e. forming few or no chemical compounds with other elements) that prevents adverse reactions with eyepiece components and therefore extends the longevity of the internal components, and also prevents chemical reactions with other elemental contaminants that may be introduced through a weakened seal. And finally, because Argon is less conductive of heat than Nitrogen, Argon cools slower thereby buffering the effects of rapid temperature changes of the optics.
The sealed, dry environment is impervious to internal fogging and contaminants such as fungus growing in between the lens elements. Explore Scientific's waterproof eyepiece is easier to clean, and there is no risk of cleaning solution migrating from the top of the lens and seeping around edges to be trapped in between elements. To insure a perfect seal, every eyepiece is tested in one meter of water for 30 minutes.
This kit includes a 68° 16mm, a 68° 24mm and a 68° 34mm Argon-purged waterproof eyepiece, along with a soft sided case. These eyepieces are individually boxed in Explore Scientific's Will Tirion "famous" star map box along with the soft-sided case inside an outer box.
| Product Banner Type | discontinued |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Eyepiece Series | Explore Scientific 68° Argon-Purged Waterproof Series |
| Focal Length | 16mm, 24mm, and 34mm |
| Barrel Size | 16mm - 1.25", 24mm - 1.25", and 34mm - 2" |
| Apparent Field of View (Mfg Specified) | 68° |
| Eye Relief (Designed) | 16mm - 11.9mm, 24mm - 18.4mm, and 34mm - 26.4mm |
| Coatings | EMD (Enhanced Multilayer Deposition) Coatings |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Blackened Lens Edges | Yes |
| Barrel Type | Tapered barrel |
| Optical Design | 6 Elements; Combination of: Dense Crown, Light Crown, Dense Flint, and Lanthanum Optical Glasses |
| End Caps | 2 |
| Parfocal | Yes |
| Rubber Eye Guard | Rubber Folding Type |
| Weight | 16mm - 5.5oz, 24mm - 11.7oz, and 34mm - 1lb-8oz |
| Country of Manufacture | China |
| Hide Found a better Shipped Price on Frontend? | No |
