Please note: Farpoint's Universal Binocular Mount (UBM) is available in several different packages, with or without additional accessories. Please be sure to order the correct package for your needs based on the item name.
- UBM mount & Balance weights # FP130 (sold separately)
- UBM mount, Balance weights & FAR-Sight mount # FP129 (sold separately)
- UBM mount, Balance weights & Swing hinge # FP135 (this item)
- UBM mount, Balance weights, FAR-Sight mount & Swing hinge # FP134 (sold separately)

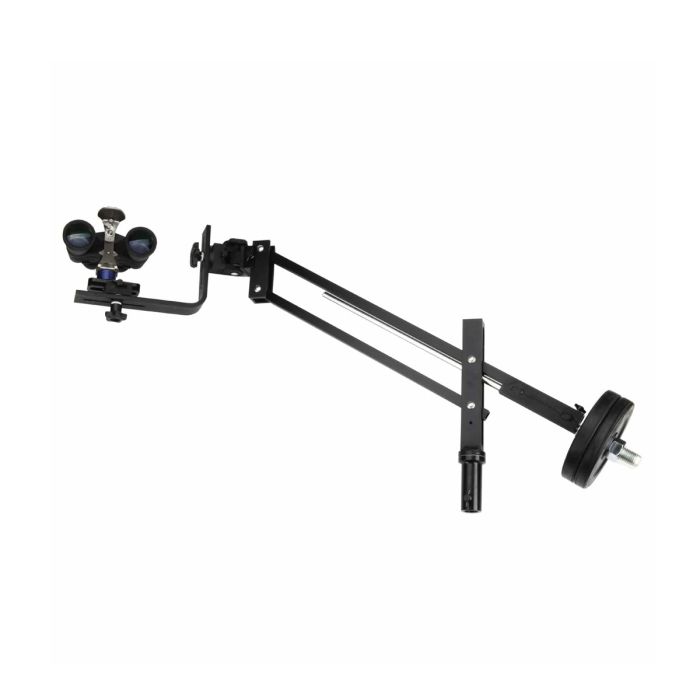

Besides making night sky observation much more comfortable, a parallelogram mount gives a big range of eyepiece height without adjusting the tripod- and without loss of target (ideal for sharing the view with kids). The UBM (Universal Binocular Mount) is an aluminum parallelogram-type mount. Like its predecessor the Unimount, they are 100% made in the USA. While observing the night sky, you’ll feel like the mount is not even there. Because all axis’ are in perfect balance, the binocular simply “floats”, while you effortlessly point it in any direction.
We highly recommend the Swing Hinge as it provides a 5th degree of motion for an even better observing experience.
For binoculars that have a tripod adapter socket on the front of the body, order the Farpoint FAR-sight. The Far-Sight comes with one Standard Mounting Screw that mounts on your binocular. If you have additional binoculars or need a different type screw, optional screws are available.
The UBM does not include a tripod.
For any size binoculars, Farpoint's Adjustable Carbon Fiber Tripod is their recommended tripod.
Binoculars up to 80-100mm probably will not need additional counterweights as the UBM already comes with two 5 pound weights. For heavier binoculars, the UBM can hold one additional 5 pound counterweight.
This product includes:
- Farpoint’s universal binocular mount
- Tripod adapter for tripods with 3/8″-16 mounting screw
- Two 5-lb counterweights for safe mounting of your binocular, and
- Swing hinge
The Parallelogram has a 12 pound capacity. The UBM's total weight, including the two 5lb. counterbalance weights, is 16.4 lbs. The collapsed length is 35", and fully extended measures approximately 51".
If your binoculars have the tripod mount in-line with the optics, you will need the FarSight or an "L-Bracket". If your binoculars have the tripod mount on the bottom (90 degrees from the optical path) you don't need the FarSight or an "L-Bracket", as both would be incompatible. No adapter is needed for bottom-mounted binoculars as they will mount directly on the UBM.
