IMPORTANT NOTE: This adapter is only compatilbe with current FOT flatteners in which the 2" nosepiece can be unscrewed from the upper body. Please check your flattener for this BEFORE you order this adapter. Earlier flatteners/reducers sold by Founder Optics have the nosepiece glued to the body, as a result of which you cannot use this adapter with those units.

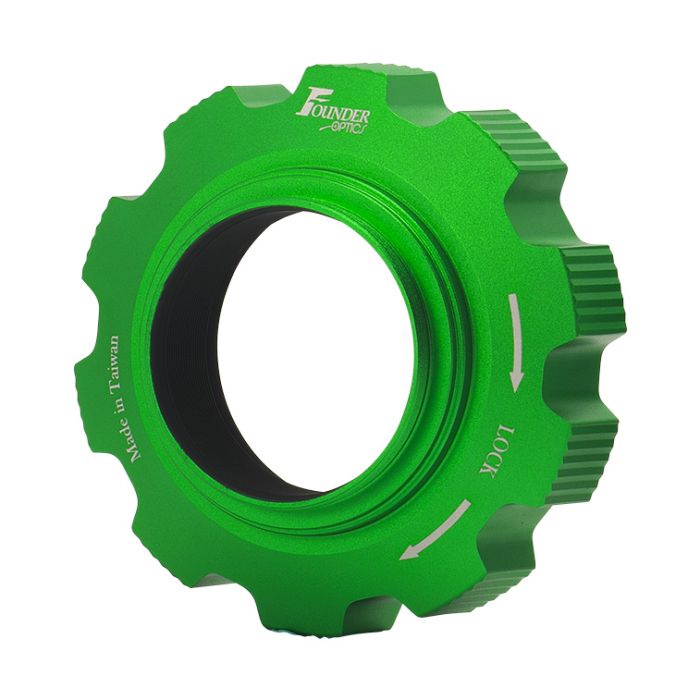

Founder Optics 2.7" Dual Thread Adapter with M48x0.75 Male Thread to Attach Field Flattener to FOT106 Telescope # DTA-FF2.7. Field flattener sold separately.
- Designed for Founder Optics reducer and field flattener use
- Best choice for advanced refractor astrophotography
- Captures the best image through the mechanical stability connection
- Different from traditional mechanical connection - stabilizes connection by using thread adapter instead of tension adapter or screw
- Reduces the gap from every mechanical unit to get a good collimation for the best image shot
- High precision machining thread to give the best connection between draw tube and field flattener/reducer
- Adjust adapter ring to position camera in the correct direction. (only 2’’ will need to adjust as 2 pieces. 2.7’’ is one piece)
How to use:
Step 1: Remove 2’’ barrel from the field flattener/reducer
Step 2: Fix the T2 ring mount on the M42/M48 thread (if for DSLR camera) and also remove the barrel adapter from the telescope.
Step 3: Connect the adapter with the flattener/reducer (andT2 ring mont) to the telescope.
Step 4: Connect to the camera (CCD or DSLR camera).
Disassembly:
- Remove the camera from the T2 ring mount first.
- Rotate the whole set of dual threaded adapter and the field flattener/reducer counterclockwise, then separate all the components step by step.
