Founder Optics 2" Dual Thread Adapter with M54x0.75 Male Thread to Attach Reducer to FO...
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
IMPORTANT NOTE: This adapter is only compatilbe with current FOT reducers in which the 2" nosepiece can be unscrewed from the upper body. Please check your reducer for this BEFORE you order this adapter. Earlier flatteners/reducers sold by Founder Optics have the nosepiece glued to the body, as a result of which you cannot use this adapter with those units.

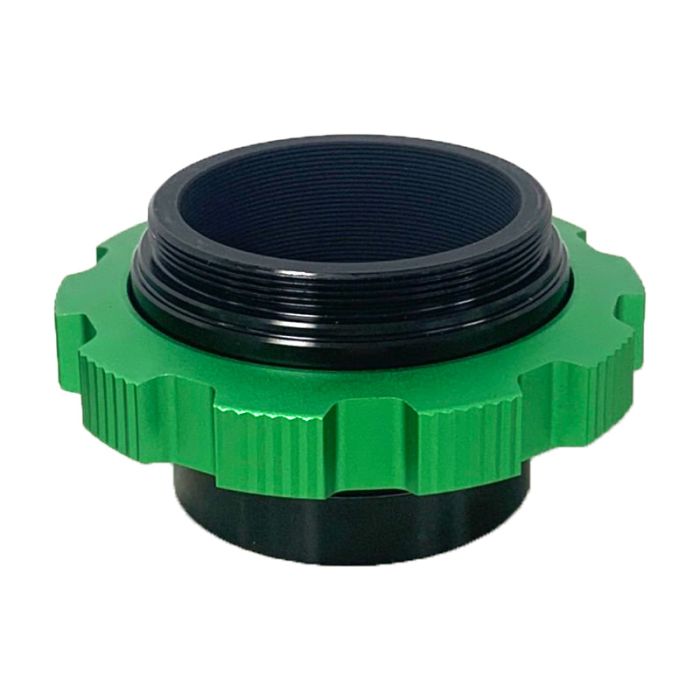

Founder Optics 2" Dual Thread Adapter with M54x0.75 Male Thread to Attach Field Flattener to FOT86 Telescope # DTA-RED2. Field flattener sold separately.
- Designed for Founder Optics reducer and field flattener use
- Best choice for advanced refractor astrophotography
- Captures the best image through the mechanical stability connection
- Different from traditional mechanical connection - stabilizes connection by using thread adapter instead of tension adapter or screw
- Reduces the gap from every mechanical unit to get a good collimation for the best image shot
- High precision machining thread to give the best connection between draw tube and field flattener/reducer
- Adjust adapter ring to position camera in the correct direction. (only 2’’ will need to adjust as 2 pieces. 2.7’’ is one piece)

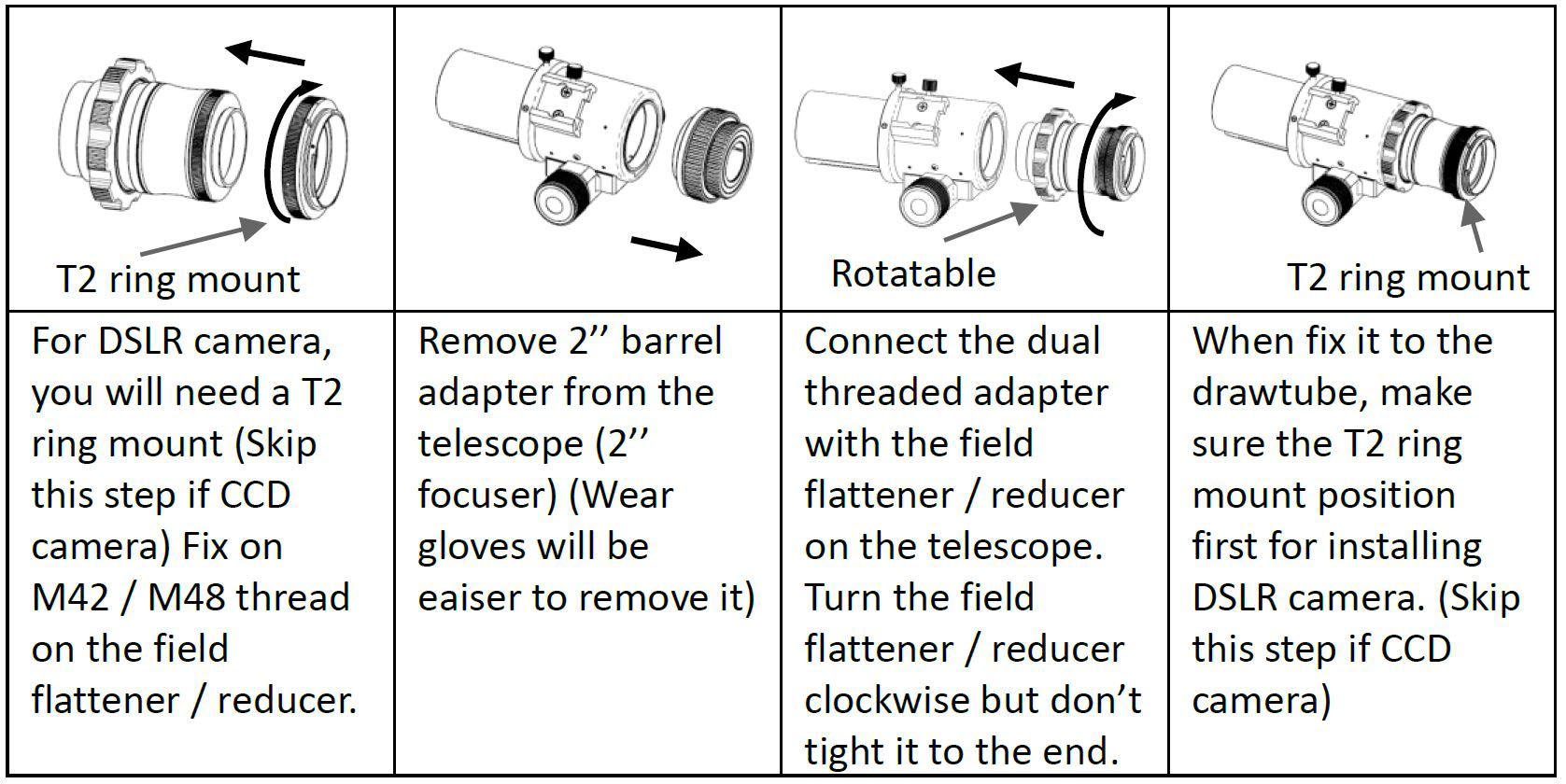

How to use:

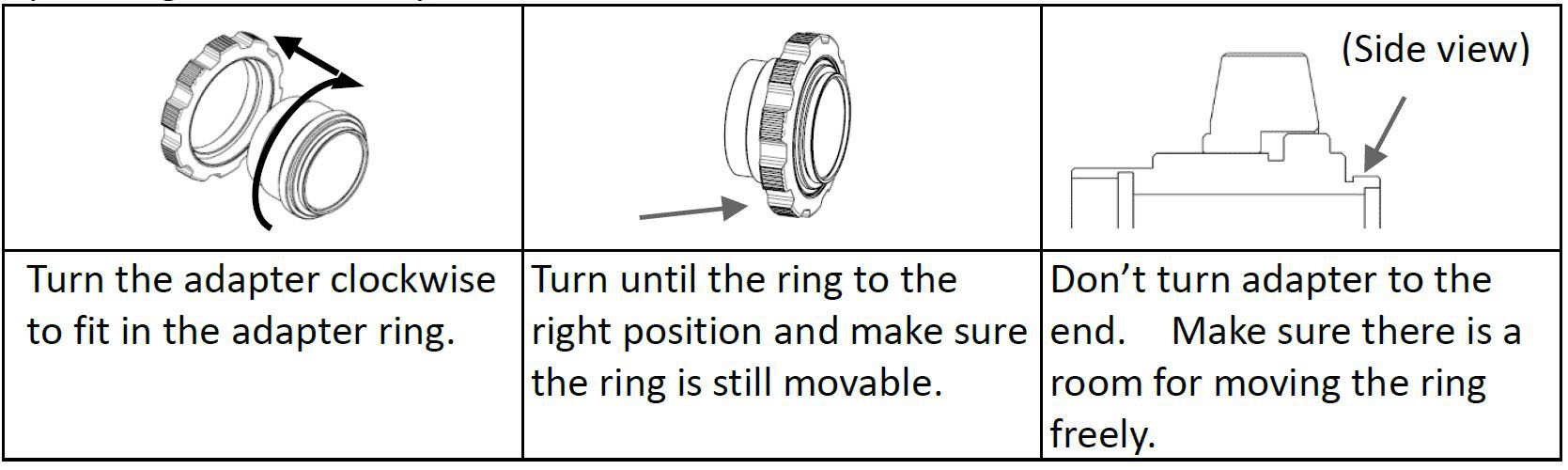

Step 1: Get ready the dual thread adapter. (Manufacturer will set this up for you, you will receive the product with the ring at the right position already. This step is just for your reference if you remove the ring by accident.)

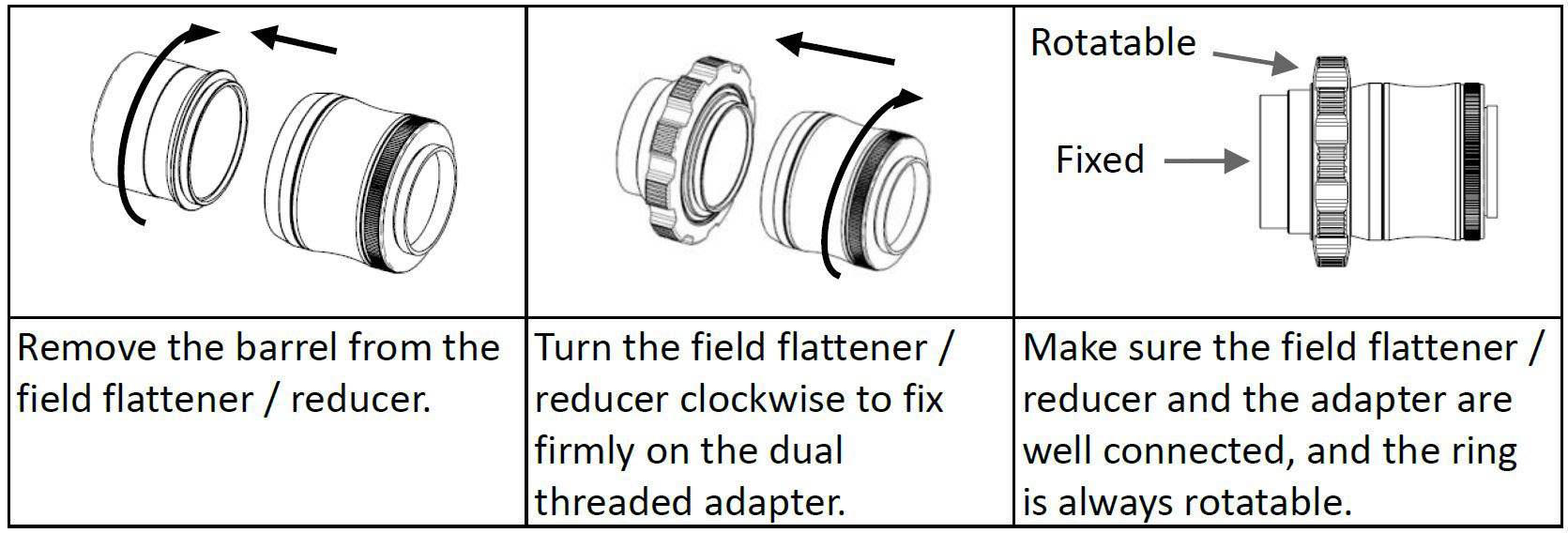

Step 2: Remove 2’’ barrel from field flattener/ reducer and install the dual thread adapter.
Step 3: Connect the adapter with the flattener/reducer (and T2 ring mount) to the telescope.

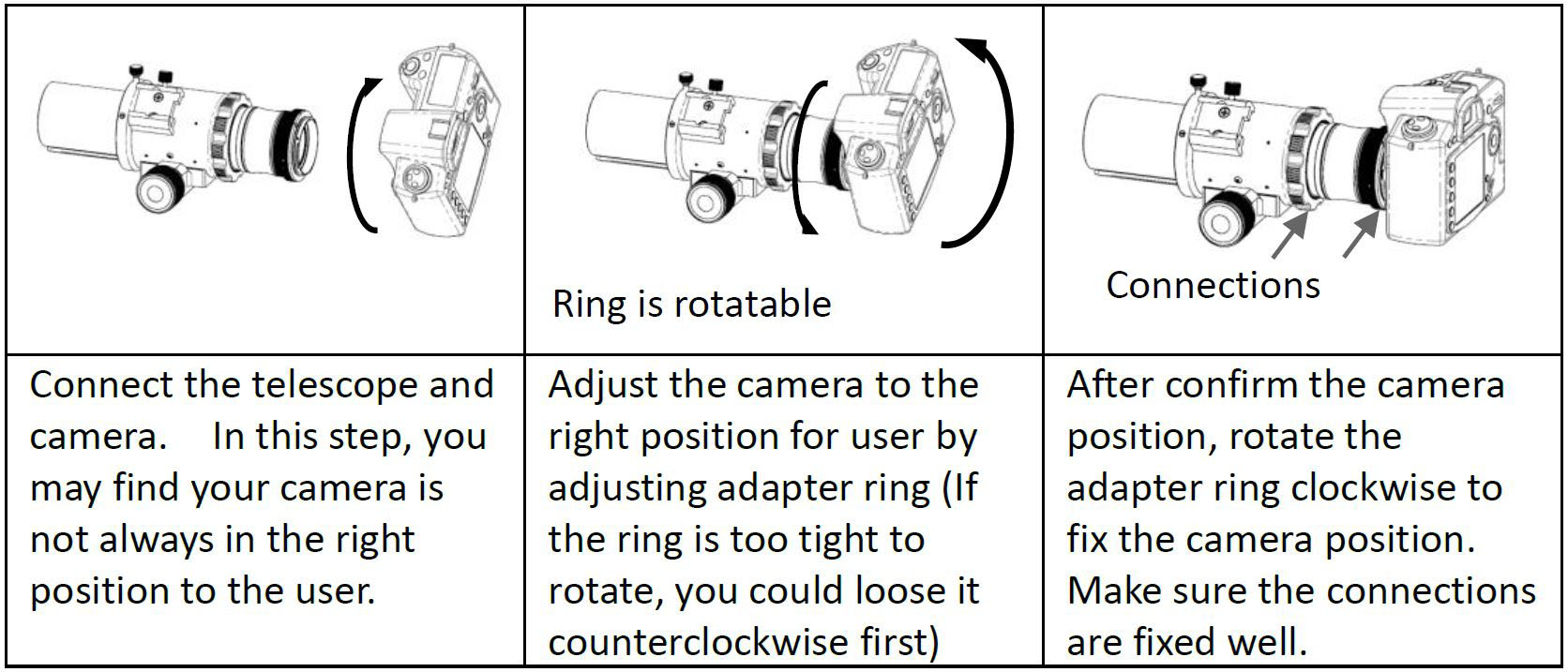

Step 4: Connect to the camera (CCD or DSLR camera).
Disassembly:
- Remove the camera from the T2 ring mount first.
- Rotate the adapter ring counterclockwise to release the whole set of the dual threaded adapter and the field flattener/reducer, then separate all the components step by step.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
IMPORTANT NOTE: This adapter is only compatilbe with current FOT reducers in which the 2" nosepiece can be unscrewed from the upper body. Please check your reducer for this BEFORE you order this adapter. Earlier flatteners/reducers sold by Founder Optics have the nosepiece glued to the body, as a result of which you cannot use this adapter with those units.
Founder Optics 2" Dual Thread Adapter with M54x0.75 Male Thread to Attach Field Flattener to FOT86 Telescope # DTA-RED2. Field flattener sold separately.
- Designed for Founder Optics reducer and field flattener use
- Best choice for advanced refractor astrophotography
- Captures the best image through the mechanical stability connection
- Different from traditional mechanical connection - stabilizes connection by using thread adapter instead of tension adapter or screw
- Reduces the gap from every mechanical unit to get a good collimation for the best image shot
- High precision machining thread to give the best connection between draw tube and field flattener/reducer
- Adjust adapter ring to position camera in the correct direction. (only 2’’ will need to adjust as 2 pieces. 2.7’’ is one piece)
How to use:
Step 1: Get ready the dual thread adapter. (Manufacturer will set this up for you, you will receive the product with the ring at the right position already. This step is just for your reference if you remove the ring by accident.)
Step 2: Remove 2’’ barrel from field flattener/ reducer and install the dual thread adapter.
Step 3: Connect the adapter with the flattener/reducer (and T2 ring mount) to the telescope.
Step 4: Connect to the camera (CCD or DSLR camera).
Disassembly:
- Remove the camera from the T2 ring mount first.
- Rotate the adapter ring counterclockwise to release the whole set of the dual threaded adapter and the field flattener/reducer, then separate all the components step by step.
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
Founder Optics 2" Dual Thread Adapter with M54x0.75 Male Thread to Attach Reducer to FOT86 Telescope # DTA-RED2
