Important note:
- Canon "M" mirrorless cameras have an FFD (flange focal distance) of 18mm. To couple these with corrective telescope optics (such as flatteners or correctors) with a 55mm back focus requirement, your "M" T-ring should have an optical path length of 55 - 18 = 37mm.
- However, this adapter has a low profile design with an optical length of only 10mm (not 37mm). This allows you to insert additional M48-threaded accessories (such as OAGs or filter wheels/filter drawers) with a total optical path length of up to 27mm.
- You may need to insert additional M48x0.75 spacers (not included) in addition to other accessories between the corrective optics and this T-ring to get to 27mm so that your camera sensor can be placed at 55mm from the corrective optics' male thread to meet the 55mm back focus requirement.
- For example, to use this with ZWO's popular FD-M42-II filter drawer that has an optical length of 21mm, and ignoring the effect of filter thickness on lengthening the back focus requirement marginally, your imaging traing will be:
Corrective optic > M48 thread spacer (6mm optical length) > ZWO filter drawer (21mm optical length) > this T ring (10mm optical length) > Canon "M" camera (18mm FFD) so that 6+21+10+18 = 55mm.
Description:

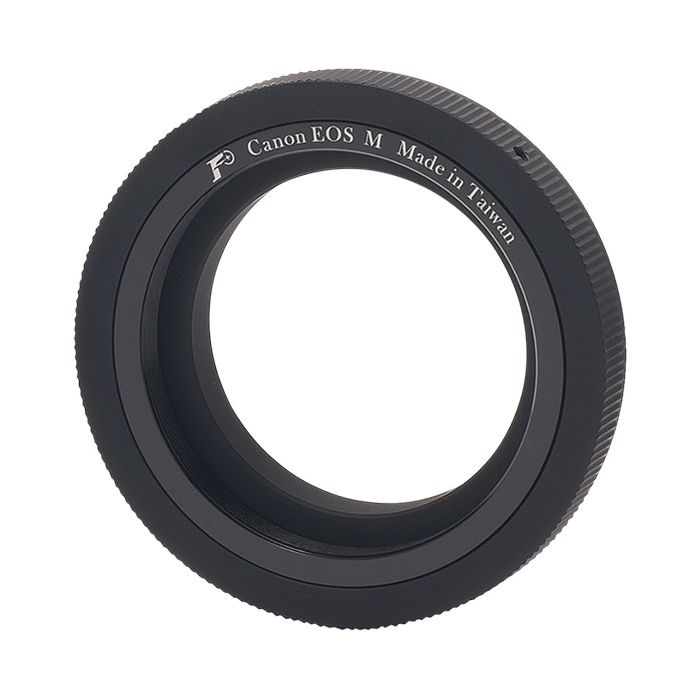

- Founder Optics low profile T-Ring to convert your Canon mirrorless EOS-M camera's EF-M mount to a 48mm thread for attachment to various astronomy accessories such as prime focus adapters, corrective optics, guiders, etc.
- Fits Canon EOS SLR/DSLR mirrorless cameras with EF-M lens mounts
- M48 female thread on T-ring has a nominal diameter of 48mm and a thread pitch of 0.75mm
- Not for use with Canon EOS EF/EF-S or EOS-R mount cameras
- Compatible with 48mm T-threaded accessories
- Not for use with the smaller, more common standard 42mm T-threaded adapters and accessories which have a male M42x0.75 thread
- High-precision CNC-machined aluminum and black anodized
- Optical path length: 10mm
- Clear aperture: 40.60mm
- Weight: Xg / Xoz
| Free Shipping Graphic | Free US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
Important note:
- Canon "M" mirrorless cameras have an FFD (flange focal distance) of 18mm. To couple these with corrective telescope optics (such as flatteners or correctors) with a 55mm back focus requirement, your "M" T-ring should have an optical path length of 55 - 18 = 37mm.
- However, this adapter has a low profile design with an optical length of only 10mm (not 37mm). This allows you to insert additional M48-threaded accessories (such as OAGs or filter wheels/filter drawers) with a total optical path length of up to 27mm.
- You may need to insert additional M48x0.75 spacers (not included) in addition to other accessories between the corrective optics and this T-ring to get to 27mm so that your camera sensor can be placed at 55mm from the corrective optics' male thread to meet the 55mm back focus requirement.
- For example, to use this with ZWO's popular FD-M42-II filter drawer that has an optical length of 21mm, and ignoring the effect of filter thickness on lengthening the back focus requirement marginally, your imaging traing will be:
Corrective optic > M48 thread spacer (6mm optical length) > ZWO filter drawer (21mm optical length) > this T ring (10mm optical length) > Canon "M" camera (18mm FFD) so that 6+21+10+18 = 55mm.
Description:
- Founder Optics low profile T-Ring to convert your Canon mirrorless EOS-M camera's EF-M mount to a 48mm thread for attachment to various astronomy accessories such as prime focus adapters, corrective optics, guiders, etc.
- Fits Canon EOS SLR/DSLR mirrorless cameras with EF-M lens mounts
- M48 female thread on T-ring has a nominal diameter of 48mm and a thread pitch of 0.75mm
- Not for use with Canon EOS EF/EF-S or EOS-R mount cameras
- Compatible with 48mm T-threaded accessories
- Not for use with the smaller, more common standard 42mm T-threaded adapters and accessories which have a male M42x0.75 thread
- High-precision CNC-machined aluminum and black anodized
- Optical path length: 10mm
- Clear aperture: 40.60mm
- Weight: Xg / Xoz
