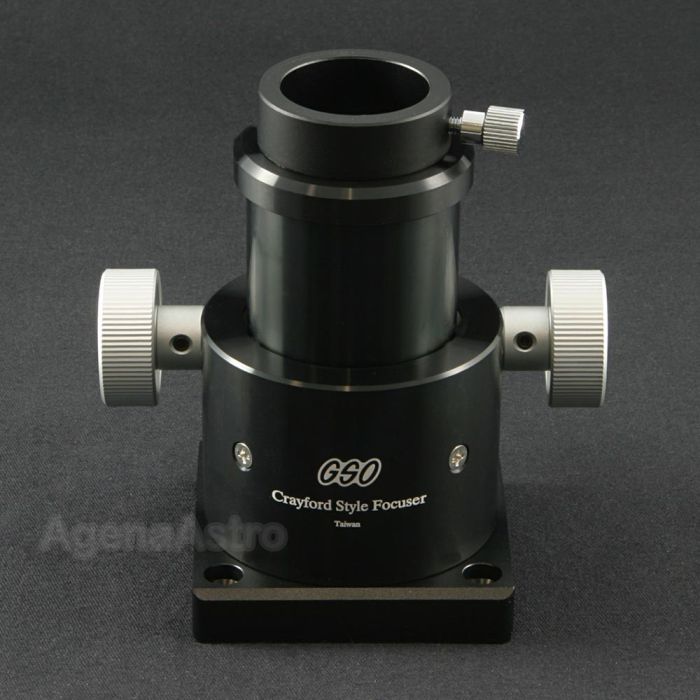

GSO 1.25" Crayford Focuser (with 176mm base plate) for Reflectors - Single Speed
Availability: Please contact us for an update
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
New part #: PAF-GS-NEW1-DW156; Previous part #: PAF-GS-CRF
New from GSO! This high quality, single-speed 1.25" Crayford focuser for reflector telescopes from Guan Sheng Optical (GSO) is a joy to use. You will wonder how you ever lived without it once you install it! It will greatly aid in achieving precise focus for visual observations and astrophotography and you will experience very smooth and precisely controlled focuser motion with zero backlash and zero image shift.
CNC machined from aluminum and anodized black, this focuser comes with a base plate to attach to your reflector telescope. The inner drawtube glides on 4 precision bearings and a roller shaft and provides 47mm of focus travel. The inner barrel is baffled and painted a flat black to minimize reflections for maximum contrast.
The focuser also has two large thumbscrews. The thumbscrew on the telescope side can be used to lock the focuser, allowing the use of heavy accessories or cameras without fear or slippage or losing focus. The other thumbscrew on the eyepiece end can be used to adjust the tension of the focuser to achieve a focusing "feel" that you like. At the easiest (lightest) setting, the focuser moves very smoothly. At tighter settings, you can still use heavier accessories without sacrificing much of the smooth focuser action.
Focuser Specifications (With 176mm Base Plate):
• Minimum focuser height = 3.01" (77mm)
• Maximum focuser height = 4.88" (124mm)
• Tube travel = 1.86" (47mm)
• Focuser weight = 14oz (397gm)
• Focus knob diameter = 1.24" (31.6mm)
• Microfocus knob diameter = N/A
• Outer drawtube diameter (on telescope side - your telescope tube cutout must exceed this) = 1.83" (46.6mm)
• Millimeter markings on focuser drawtube: No
• Rotatable: No (But body can be rotated by loosening two allen screws that connect the focuser to the base plate)
• Dust plug: One 1.25" dust plug included
• Brass compression rings: No
176mm Base Plate Specifications:
- Base plate curve diameter: 6.93" (176mm)
- Base plate dimensions: 2.8" x 2.8" (71mm x 71mm)
- Hole Spacing (center-to-center along telescope tube/optical axis): 57mm (2.25")
- Hole Spacing (center-to-center perpendicular to telescope tube; straight line measurement): 55mm (2.16")
- Hole Spacing (center-to-center perpendicular to telescope tube; measured along curve of base plate): 56mm (2.20")
- Diameter of cutout hole for focuser body: 2.4" (60.9mm)
Please note: Most GSO Crayford focusers have or will soon develop two bearing marks/lines on the upper side of the drawtube. This is caused by wear on the barrel anodizing where is makes contact with the roller bearings. In some focusers, you have to look hard to find these marks. In others, it is very prominent, even for brand new items received from GSO. This does not indicate a defective or used product and is essentially just cosmetic.
