GSO 2" 0.5x Focal Reducer
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- 0.5x focal reducer effectively halves the focal length of a telescope, enabling lower magnification, a wider field of view, and shorter exposure times for astrophotography
- Threads into eyepieces, camera adapters, and other accessories with standard M48x0.75 threads
- Fully multi-coated optics held in a black-anodized aluminum filter cell
- Can be used with additional spacers (available separately) to achieve further focal reduction
- Intended for use with with longer-focal-ratio telescopes and eyepieces of narrow to moderately-wide apparent fields of view

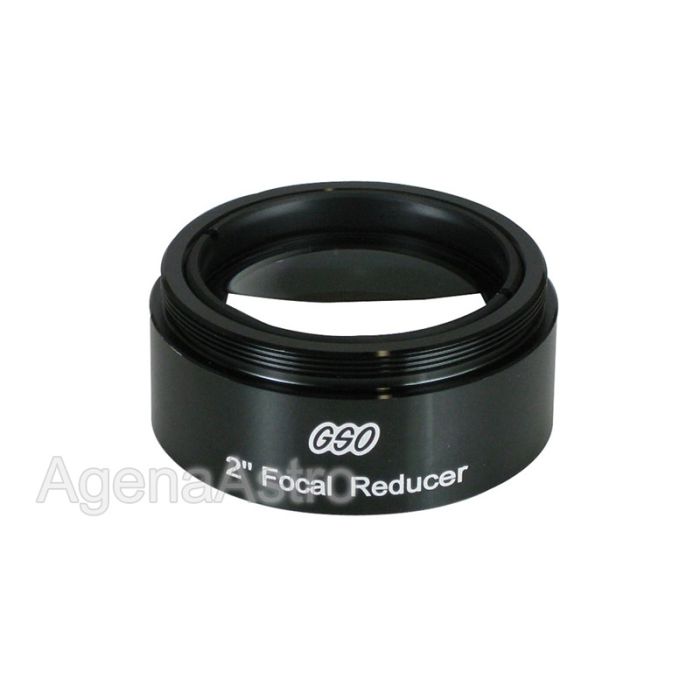

GSO's new 2" 0.5x focal reducer screws on to any accessory (such as eyepieces, camera adapters, etc.) that accepts standard 2" threaded filters (with M48x0.75 specification threads) and provides a nominal reduction of 0.5x. Use of this focal reducer effectively halves the focal ratio of your telescope, resulting in a wider field of view and significantly shortened exposure times for astrophotography. For example, use of this reducer will convert an f/10 telescope into an f/5 scope.
The 2-element reducer features fully multi-coated optics in a black-anodized aluminum filter cell. It also has additional 2" female threads (again, M48x0.75) so you can screw/stack additional 2" filters on to this reducer. This focal reducer will work well for visual use too when coupled with the right kind of eyepieces and telescopes (it is not recommended for very fast scopes or very wide angle eyepieces for visual applications).
Specifications:
- Total length (including external thread) = 21mm (0.83")
- Total length (excluding external thread) = 16mm (0.63")
- Clear Aperture = 37.4mm (1.47")
- Weight = 2.4 oz.
- Made in Taiwan.
The actual reduction will vary a little over or under 0.5x depending on exactly where the focal reducer is placed in the optical path. The exact focal length specification of this reducer has not been provided by the manufacturer, but we estimate it to be approximately 105-107mm. Hence, the "working distance" of this specific reducer is estimated to be 53mm, i.e., this reducer will provide a reduction of 0.5x when the center of its lens assembly is placed 53mm from the focal plane of the eyepiece or imaging device. Move the focal reducer closer to the eyepiece/camera and its reduction factor will increase. Move it away and the reduction provided will decrease.
By using additional spacers or extension tubes (sold separately), you can vary the amount of reduction you obtain with this reducer as follows:
|
Extra Spacer Length
|
Nominal Reduction Provided
|
|
0" / 0mm
|
0.50x
|
|
0.25" / 6.4mm
|
0.44x
|
|
0.5" / 12.7mm
|
0.38x
|
|
0.75" / 19.1mm
|
0.32x
|
|
1" / 25.4mm
|
0.26x
|
Note that the use of any optical element like barlows and focal reducers changes the focus point of your telescope, requiring additional in-focus or out-focus travel. The exact amount of focus travel required will depend on the optics and mechanics of your specific set-up (telescope, diagonal (if used), barlow/reducer, and eyepiece). Hence, be aware that you may not be able to reach focus with all eyepieces or in all configurations with a given barlow/reducer. In our tests, when screwed into an eyepiece, this focal reducer required approximately 22mm of additional in-focus travel which is significant for refractors and Newtonian reflector telescopes.
