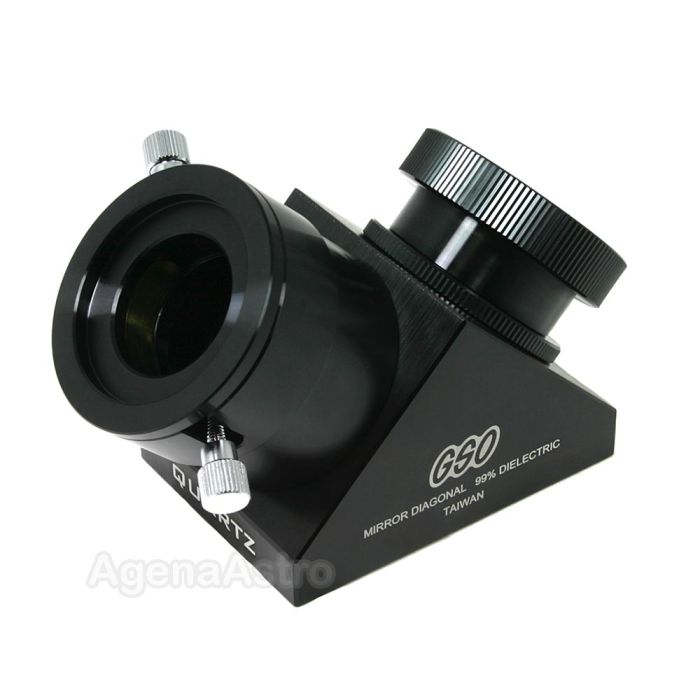

GSO 2" 90-deg 99% Quartz Dielectric Mirror Diagonal for SCTs
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Premium 2" diagonal with durable dielectric coatings for 99% reflectivity for bright images and long lifetime
- 1/12-wave quartz mirror offers good thermal stability and minimal focus shift during long observing or imaging sessions
- All-metal body with SCT barrel
- Comes with 2"-1.25" eyepiece adapter for maximum flexibility
- Includes foam-fitted storage box and end caps
If you want a high-end mirror diagonal for your Schmidt-Cassegrain telescope, this GSO 2" Quartz Dielectric Diagonal Mirror is an excellent choice. GSO's 2" SCT diagonal features dielectric coatings with 99% reflectivity across the visible spectrum and a 1/12 wave quartz mirror. The all metal diagonal body is CNC machined. The combined result is a superb diagonal offering excellent mechanical and optical quality at a great price. Dielectric coatings are more durable than regular or enhanced aluminum coatings, so you will enjoy years of excellent performance from this product. Diagonals with comparable quality and specifications often sell for $200 or more in today's astronomy market.
High quality diagonal mirrors are usually made of BK7 glass. Quartz glass goes a notch higher - it offers greater thermal stability, resulting in minimal thermal expansion and contraction as compared to other glass types. The result is a minimal, if any, shift in focus due to temperature changes over long observation sessions, making this quartz diagonal ideal for photographic and imaging applications.
You can attach this diagonal directly to Schmidt-Cassegrain telescopes and many Maksutov-Cassegrain telescopes, as long as there is a SCT male thread on the telescope. The standard SCT thread is a 2"x24 tpi thread.
A 1.25"-2" adapter is included so you can use this diagonal with 1.25" or 2" eyepieces. The 1.25" and 2" holders both feature a brass compression ring, so your eyepiece barrels will not be scratched by the set screw. The 1.25"-2" adapter is also threaded to accept 2" filters. The clear aperture is 38.2mm. The diagonal comes in a very nice foam-fitted storage box and includes 2 end caps. Weight = 1lb-4oz. (with 1.25" adapter); 1lb-1oz. (without 1.25" adapter). Made in Taiwan.
Please note: Even though the eyepiece holder and the SCT adapter of this diagonal have standard SCT (2"x24TPI) threads that will work with other SCT threaded items, the threads on the body of the diagonal are NOT standard SCT threads. The thread diameter on the diagonal body is 2" but the thread pitch is very slightly different (not 24TPI) and has not been specified. GSO ensures that these components that they machine fit together, but SCT-threaded adapters from other brands will not thread on properly or at all to GSO's 2" diagonal bodies in most cases due to this marginally different thread pitch.
