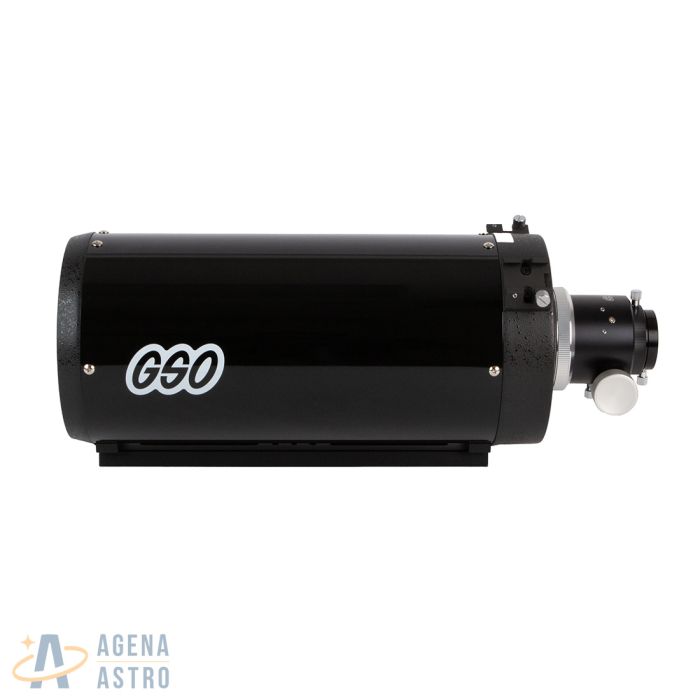

GSO 6" f/12 Classical Cassegrain Reflector Telescope OTA (Black)
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Classical Cassegrain telescope with 6” aperture and focal ratio of f/12, ideal for visual observation and imaging of the Moon, planets, double stars, planetary nebulae, and other compact celestial objects
- Fully and rigorously tested on site for cosmetics, mechanical operation, and optical performance by a master optician to ensure excellent overall telescope operation and customer satisfaction (an Agena exclusive service)
- Folded optical design packs a focal length of 1836mm into an optical tube only 437mm long
- No glass corrector plate means no chromatic aberration and fast temperature equalization and resistance to dew formation
- Lightweight tube and optics for a total weight of just under 14lbs, ideally matched to many mid-capacity alt-az and equatorial mounts
- Dual-speed EAF-compatible 2” Crayford focuser with 1.25” adapter and non-marring compression rings
- Includes two Vixen-style finder bases for finder scope or guide scope, Vixen-style mounting dovetail bar, and front and rear dust caps
1. A Modern Take on a Classic Telescope Design
First conceived in 1672, the classical Cassegrain telescope uses a parabolic primary mirror and a hyperbolic secondary mirror to fold a long focal length into a relatively compact open optical tube. This simple design is ideal for visual observations of the Moon, planets, double stars, planetary nebulae, compact globular clusters, and other objects that are well framed in the tighter fields of view that result from a long focal length.
This 6" f/12 Cassegrain from GSO is a modern take on the classical Cassegrain design. With a focal length of 1836mm, it's ideal for crisp and razor-sharp visual observation and imaging. This telescope offers views that rival apochromatic refractors at a tiny fraction of the price. Despite its long focal length, the optical tube of this telescope is just 17.2" (437mm) long, not including the focusers.
Compared to more complex Maksutov-Cassegrain designs, which include a thick and heavy corrector plate, this scope is not only far less expensive, it's also much lighter, just under 14lbs, which matches well with nearly any mid-capacity altazimuth or equatorial mount. Unlike compound telescopes like Maksutov or Schmidt-Cassegrains, these telescopes have fixed mirrors so there's no image shift or mirror flop during focusing, even at very high magnifications. And since they are purely reflecting telescopes, there is no chromatic aberration visible, even when observing bright objects.
2. Full Optical and Mechanical Testing and Quality Control - An Agena Exclusive!
GSO telescopes are available from several suppliers, but Agena does much more than simply move the telescope boxes from GSO to you. Each GSO Cassegrain telescope at Agena undergoes a thorough physical, mechanical, and optical evaluation at our shop upon arrival - all at no extra cost to you.
Every GSO telescope is inspected to ensure good cosmetics, collimation, smooth focuser operation, and to make sure all parts are included by the manufacturer. Most importantly, we also check each telescope using a rigorous three-point on-site optical evaluation consisting of the following optical bench tests to ensure that your telescope delivers excellent optical performance:
Foucault Test: This knife-edge test is performed at the center of curvature of the primary mirror to evaluate the quality of the mirror's conic shape.
Ronchi Test: We then perform a Ronchi grating test at the center of curvature at inside focus, at focus, and outside focus. This is a qualitative method to evaluate primary mirror smoothness and figure.
Star test: Finally, we collimate the complete telescope and perform an autocollimation test with an artificial star to examine the overall system's image performance at the focus point.
This testing is performed and certified by a master optician to make sure each GSO instrument sold by Agena has excellent optical performance before it ships. Note that these tests are qualitative and no detailed test reports are included. The telescope will be in perfect collimation when it leaves our warehouse but may require some adjustment after delivery.
3. Diffraction Limited Quartz Primary and Secondary Mirrors for Razor-Sharp Views
Both the parabolic primary and hyperbolic secondary mirrors are made from thermally-stable quartz and ground and polished to a surface accuracy that is diffraction limited or better. Each mirror has enhanced aluminum coatings overcoated with a protective layer of quartz for long life. And each has a reflectivity of better than 96%, similar to Ritchey-Chretien, Schmidt-Cassegrain, and other scopes that cost far more. The secondary mirror is mounted in a four-vane spider, and the central obstruction is about 33%, comparable to most Schmidt-Cassegrain telescopes.
These telescopes are ideal for visual observation, but they can also be used for lunar and planetary imaging. While these telescopes do not exhibit spherical aberration, like Newtonians they will have some coma especially at the lowest magnifications or with astronomy cameras with large chips.
4. Internal Light Baffles for High Contrast
Computer optimization results in eight contrast-enhancing glare-stop baffles in the optical tube as well as multiple glare-stop micro baffles in the secondary mirror light shield. The scope also includes four baffles in the primary mirror baffle tube, resulting in excellent dark sky backgrounds and extremely good image contrast.
5. 2" Dual-Speed Crayford Focuser and Accessories
The solid 10:1 dual-speed 2" Crayford-style dual-speed focuser handles small to mid-sized astronomy cameras and webcams. It also has a tension knob and a locking knob to allow you to secure the cameras and accessories.
The ridged focus knobs give you a good feel and grip, even with gloved hands in cold weather, and the 10:1 fine focus knob lets you snap your image into perfect focus. The drawtube of the focuser is engineered to have minimal wear and minimal flexure with most cameras. It offers 41mm of focus travel and includes a focusing scale on the top of the drawtube to make it easy to return to the correct focus position during each observing session.
This telescope features GSO's latest EAF-compatible focuser design so you can attach the ZWO EAF directly without the need for any additional adapters. The bottom of the focuser now incorporates a flat surface with additional screw holes to allow users to easily and directly mount the ZWO EAF using the standard mounting bracket that the EAF comes with. The housing in this version is also made of aluminum for a secure, robust fit. Imagers can now use the EAF to precisely control the focuser's movement for visual or critical imaging applications. Note that the EAF is not included.
The focuser in this telescope is not decoupled from the primary mirror cell and baffle. Users wishing to decouple the focuser from the rest of the OTA for finer alignment/squaring can do so with the optional # FF670 collimation tilt adapter (see "Related Accessories" section above) that GSO sells separately.
The telescope includes two 1” and one 2” extension rings for situations when you need further backfocus, or when you want to reduce the extension of the focuser’s drawtube to minimize its deflection under heavier loads. It also comes with a 1.25"-2” adapter with compression ring so you can use cameras with 1.25" nose pieces.
6. Open Metal Tube for Fast Temperature Equalization and Reduced Dew FormationThe black tube of this classical Cassegrain is made from rolled steel for good thermal stability and it's capped with end rings of die-cut aluminum for protection and rigidity. The scope includes a dust cap, a shoe for a finder scope, and a Vixen-style dovetail rail for mounting.
Because there's no corrector plate on this classical Cassegrain design, the optics are far less susceptible to dewing, and they exhibit much faster temperature equalization because of the open optical tube. The absence of a corrector plate also means this telescope is ideal for imaging planets in the IR to pick up additional detail not seen at visible wavelengths.
7. Specifications
- Optical design: Classical Cassegrain Reflector
- Aperture: 153mm (6")
- Illuminated primary mirror diameter: 151.1mm (5.95")
- Focal ratio: f/12
- Focal length: 1836mm
- Primary mirror: Parabolic primary mirror; minimum 96% reflectivity; protective quartz layer
- Secondary mirror: Minimum 96% reflectivity; protective quartz layer; center dot marked for collimation
- Secondary mirror holder: 4-vane all metal spider; 3 collimation screws for alignment of secondary mirror
- Secondary mirror diameter: 55mm
- Secondary mirror holder diameter: 63.5mm
- Secondary obstruction (by diameter / by area): 42.0% / 17.6%
- Available back focus (distance of focal plane from surface of 1.25" eyepiece adapter, with focuser full racked in): 149.2mm. Add 10mm if 1.25" eyepiece adapter is removed.
- Tube outside diameter: 7.6"
- Tube length: 17.2"
- Tube Material: Steel
- Focuser: 2" EAF-compatible dual-speed Crayford # DW409. Not threaded. Eyepiece holder and drawtube are a single piece.
- Tube weight (with all included accessories): 13lbs 14oz
- Shipped size / weight: 26"x12"x13" / 18lbs 4oz
- Inspected for collimation and focuser operation at Agena AstroProducts
- Warranty: 2 years
