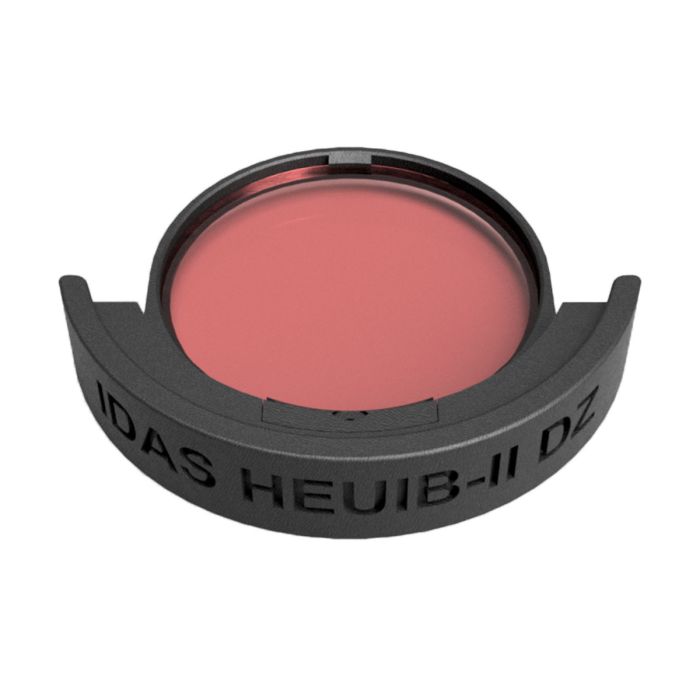

IDAS H-a Enhancement Filter with UV/IR Cut - ZWO 42mm and 54mm (Gen 2) Filter Drawer Mount
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
About IDAS HEUIB-II-DZ Filters:
The IDAS DZ framed filters are mounted in a 3d printed holder and designed to be inserted directly into the following ZWO filter drawers:
- ZWO FD-M54-II (M54 Filter Drawer Gen / Type II)
- ZWO FD-M42-II (M42 Filter Drawer Gen / Type II)
The clear aperture of the 2" version of this IDAS filter is 43mm. You can certainly use that with ZWO's filter holder in the above filter drawers. However, these 3d cell-mounted DZ filters have a larger clear aperture of 47mm, reducing the chances of vignetting when used with full frame cameras. All DZ filters have a glass subtrate that is 2mm thick.
IDAS H-a Enhancement Filter with UV/IR Cut Filter:
The HEUIB-II is a UV/IR-cut filter enhanced for shooting H-alpha nebulae at wave length of 656.3nm. This filter should NEVER be used for solar observation.
This will reduce the interference from the red end spectrum associated with regular astronomical IR-cut filters such as UIBAR-III, and as a result enhance the wave length of H-alpha nebulae. Even in comparison with our conventional HEUIB filter, HEUIB-II has less interference from the red end spectrum as a result of the increase in the red spectrum suppression range. Thus, the image of nebulae at the H-alpha region will get enhanced.
The HEUIB-II filter utilizes the IGAD (ion-Gun AssistDeposition) coating technology which has been applied to our regular LPS-P2 and LPS-V4 series. The IGAD technology densifies the multi-layers - the heart of interference filters - resulting in the physical properties that cannot be obtained from the conventional multi-layers.
- Highly durable thin layers of which hardness equals to quartz glasses. Tremendously improved adherence between the substrate and the multi-layers set.
- Absolutely almost no aging variation in optical spectral characteristics due to temperature and humidity change as far as used in the regular human living environments.
*This product is an interference filter. Its spectrum characteristics will be subject to the incidence of incoming light. Please carefully read the following instruction for proper use:
When the HEUIB-II is placed before the lens:
Use a lens having the light incidence angle of 17 degrees or lower (field angle of 34 degrees or lower).
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
About IDAS HEUIB-II-DZ Filters:
The IDAS DZ framed filters are mounted in a 3d printed holder and designed to be inserted directly into the following ZWO filter drawers:
- ZWO FD-M54-II (M54 Filter Drawer Gen / Type II)
- ZWO FD-M42-II (M42 Filter Drawer Gen / Type II)
The clear aperture of the 2" version of this IDAS filter is 43mm. You can certainly use that with ZWO's filter holder in the above filter drawers. However, these 3d cell-mounted DZ filters have a larger clear aperture of 47mm, reducing the chances of vignetting when used with full frame cameras. All DZ filters have a glass subtrate that is 2mm thick.
IDAS H-a Enhancement Filter with UV/IR Cut Filter:
The HEUIB-II is a UV/IR-cut filter enhanced for shooting H-alpha nebulae at wave length of 656.3nm. This filter should NEVER be used for solar observation.
This will reduce the interference from the red end spectrum associated with regular astronomical IR-cut filters such as UIBAR-III, and as a result enhance the wave length of H-alpha nebulae. Even in comparison with our conventional HEUIB filter, HEUIB-II has less interference from the red end spectrum as a result of the increase in the red spectrum suppression range. Thus, the image of nebulae at the H-alpha region will get enhanced.
The HEUIB-II filter utilizes the IGAD (ion-Gun AssistDeposition) coating technology which has been applied to our regular LPS-P2 and LPS-V4 series. The IGAD technology densifies the multi-layers - the heart of interference filters - resulting in the physical properties that cannot be obtained from the conventional multi-layers.
- Highly durable thin layers of which hardness equals to quartz glasses. Tremendously improved adherence between the substrate and the multi-layers set.
- Absolutely almost no aging variation in optical spectral characteristics due to temperature and humidity change as far as used in the regular human living environments.
*This product is an interference filter. Its spectrum characteristics will be subject to the incidence of incoming light. Please carefully read the following instruction for proper use:
When the HEUIB-II is placed before the lens:
Use a lens having the light incidence angle of 17 degrees or lower (field angle of 34 degrees or lower).
