IDAS Night Glow Suppression Filter - ZWO 42mm and 54mm (Gen 2) Filter Drawer Mount
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
About IDAS NGS1-DZ Filters:
The IDAS DZ framed filters are mounted in a 3d printed holder and designed to be inserted directly into the following ZWO filter drawers:
- ZWO FD-M54-II (M54 Filter Drawer Gen / Type II)
- ZWO FD-M42-II (M42 Filter Drawer Gen / Type II)
The clear aperture of the 2" version of this IDAS filter is 43mm. You can certainly use that with ZWO's filter holder in the above filter drawers. However, these 3d cell-mounted DZ filters have a larger clear aperture of 47mm, reducing the chances of vignetting when used with full frame cameras. All DZ filters have a glass subtrate that is 2mm thick.
IDAS Night Glow Suppression Filter:
The NGS1 is the world-first filter that suppresses both man-made and night glow interferences to the green, orange and red ranges. This is the same filter that was previously sold as the IDAS LPS-D3.
Night Glow: OI (557.7nm, 630.0nm, 636.4nm), NaI (589.0nm, 589.6nm)
The NGS1 the successor of the conventional IDAS light pollution cut filters, and thus can suppress the inteference from white LED lights. This filter is also effective against low- and high-pressure sodium lamp pollutions.
Night glow interferenced image (photo taken by Shigemi Numasawa):
Image ideally processed to reproduce the NGS1:effect
The NGS1 is designed based on the same concept as of the other IDAS light pollution cut filters so that it maxmizes the transfer of the light emissions from various emission nebulae, C2 comae of comet heads and CO+ ionized tails of comet tails as well as coninuous spectrum emissions from space. Its transmittance range is intentionally shifted to the longer wave length side. allowing margins for "the shift tendency towards the shorter wave length side against oblique incidences" typically associated with thin-film interference filters. The NGS1 can almost fully transfer the abovementioned nebular emission lines under the conditions , for example, where the incidence of the parallel flux is kept below 14 degrees, or a lens of the F value 2 or faster (or 1.4 or faster depending on lens) is used before this filter.
The NGS1 filter utilizes the IGAD (ion-Gun AssistDeposition) coating technology which has been applied to our coventional light pollution cut filters. The IGAD technology densifies the multi-layers - the heart of interference filters - resulting in the physical properties that cannot be obtained from the conventional multi-layers.
- Highly durable thin layers of which hardness equals to quartz glasses. Tremendously improved adherence between the
substrate and the multi-layers set. - Absolutely almost no aging variation in optical spectral characteristics due to temperature and humidity change as
far as used in the regular human living environments.
*This product is an interference filter. Its spectrum characteristics will be subject to the incidence of incoming light. Please carefully read the following instruction for proper use:

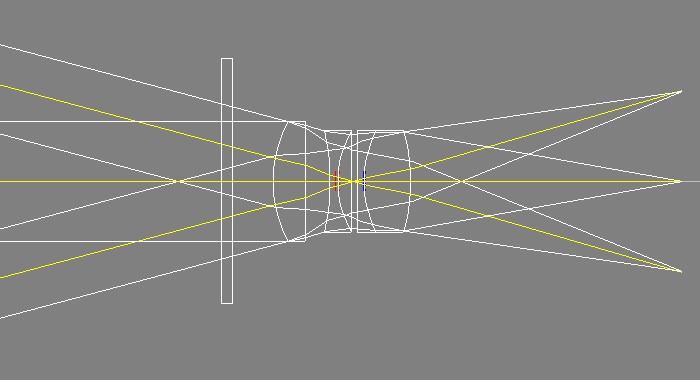

When the NGS1 is placed before the lens:
Use a lens having the light incidence angle of 14 degrees or lower (field angle of 34 degrees or lower).
Specifications:
- M48 x 0.75
- Filter thickness: 2.0mm (Previous version NGS1-48mmS was 2.5mm thick)
- Lightweight frame
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
About IDAS NGS1-DZ Filters:
The IDAS DZ framed filters are mounted in a 3d printed holder and designed to be inserted directly into the following ZWO filter drawers:
- ZWO FD-M54-II (M54 Filter Drawer Gen / Type II)
- ZWO FD-M42-II (M42 Filter Drawer Gen / Type II)
The clear aperture of the 2" version of this IDAS filter is 43mm. You can certainly use that with ZWO's filter holder in the above filter drawers. However, these 3d cell-mounted DZ filters have a larger clear aperture of 47mm, reducing the chances of vignetting when used with full frame cameras. All DZ filters have a glass subtrate that is 2mm thick.
IDAS Night Glow Suppression Filter:
The NGS1 is the world-first filter that suppresses both man-made and night glow interferences to the green, orange and red ranges. This is the same filter that was previously sold as the IDAS LPS-D3.
Night Glow: OI (557.7nm, 630.0nm, 636.4nm), NaI (589.0nm, 589.6nm)
The NGS1 the successor of the conventional IDAS light pollution cut filters, and thus can suppress the inteference from white LED lights. This filter is also effective against low- and high-pressure sodium lamp pollutions.
Night glow interferenced image (photo taken by Shigemi Numasawa):
Image ideally processed to reproduce the NGS1:effect
The NGS1 is designed based on the same concept as of the other IDAS light pollution cut filters so that it maxmizes the transfer of the light emissions from various emission nebulae, C2 comae of comet heads and CO+ ionized tails of comet tails as well as coninuous spectrum emissions from space. Its transmittance range is intentionally shifted to the longer wave length side. allowing margins for "the shift tendency towards the shorter wave length side against oblique incidences" typically associated with thin-film interference filters. The NGS1 can almost fully transfer the abovementioned nebular emission lines under the conditions , for example, where the incidence of the parallel flux is kept below 14 degrees, or a lens of the F value 2 or faster (or 1.4 or faster depending on lens) is used before this filter.
The NGS1 filter utilizes the IGAD (ion-Gun AssistDeposition) coating technology which has been applied to our coventional light pollution cut filters. The IGAD technology densifies the multi-layers - the heart of interference filters - resulting in the physical properties that cannot be obtained from the conventional multi-layers.
- Highly durable thin layers of which hardness equals to quartz glasses. Tremendously improved adherence between the
substrate and the multi-layers set. - Absolutely almost no aging variation in optical spectral characteristics due to temperature and humidity change as
far as used in the regular human living environments.
*This product is an interference filter. Its spectrum characteristics will be subject to the incidence of incoming light. Please carefully read the following instruction for proper use:
When the NGS1 is placed before the lens:
Use a lens having the light incidence angle of 14 degrees or lower (field angle of 34 degrees or lower).
Specifications:
- M48 x 0.75
- Filter thickness: 2.0mm (Previous version NGS1-48mmS was 2.5mm thick)
- Lightweight frame
