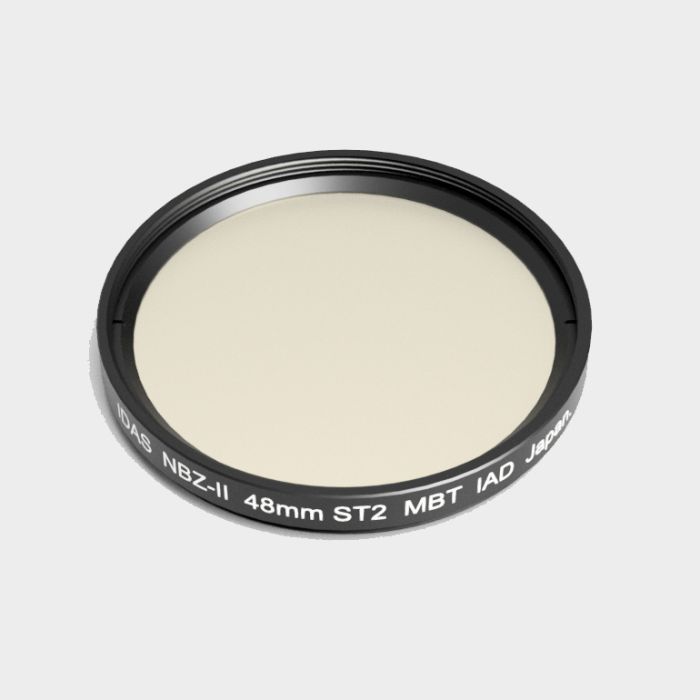

IDAS NBZ-II 10nm Ha & 8nm OIII Dual Band Filter - 2" Mounted
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
The IDAS NBZ-II is a new dual band nebula booster filter - the successor to the NBZ (NBZex) filter. The FWHM of the NBZ-II is 8nm (+/=0.4nm) at OIII, and 10nm (+/-0.4nm) at H-alpha respectively. This has the same anti-Haloing characteristics as the NBZ did. A test report of the actually measured optical properties is provided with each individual NBZ-II filter piece shipped.
The transmittance curve of interference filters will naturally shift towards the shorter wave length side against oblique light incidence, and this tendency will be more noticeable as the incidence angle becomes higher as shown in the 3rd photo above.
Some of the competitive 7nm or narrower filters will decrease in transmittance by 50% or more when used in a fast optical system (around f/2), while the NBZ=II retains 80% or more of the transmittance under the same conditions. So this new NBZ-II filter can be used in systems that are as fast as f/1.9.
The shift tendency will be stronger in optical systems that have a central obstruction. Taking this into consideration, we have designed the NBZ-II as you can see from the simulation in the 4th photo above.
Specifications:
- 2" mounted; M48mm x 0.75mm
- Glass thickness: 2.0mm
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- NBZ II Filter
- Individual spectrographic test report
The IDAS NBZ-II is a new dual band nebula booster filter - the successor to the NBZ (NBZex) filter. The FWHM of the NBZ-II is 8nm (+/=0.4nm) at OIII, and 10nm (+/-0.4nm) at H-alpha respectively. This has the same anti-Haloing characteristics as the NBZ did. A test report of the actually measured optical properties is provided with each individual NBZ-II filter piece shipped.
The transmittance curve of interference filters will naturally shift towards the shorter wave length side against oblique light incidence, and this tendency will be more noticeable as the incidence angle becomes higher as shown in the 3rd photo above.
Some of the competitive 7nm or narrower filters will decrease in transmittance by 50% or more when used in a fast optical system (around f/2), while the NBZ=II retains 80% or more of the transmittance under the same conditions. So this new NBZ-II filter can be used in systems that are as fast as f/1.9.
The shift tendency will be stronger in optical systems that have a central obstruction. Taking this into consideration, we have designed the NBZ-II as you can see from the simulation in the 4th photo above.
Specifications:
- 2" mounted; M48mm x 0.75mm
- Glass thickness: 2.0mm
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- NBZ II Filter
- Individual spectrographic test report
IDAS NBZ-II 10nm Ha & 8nm OIII Dual Band Filter - 2" Mounted # NBZ-II 48ST2
