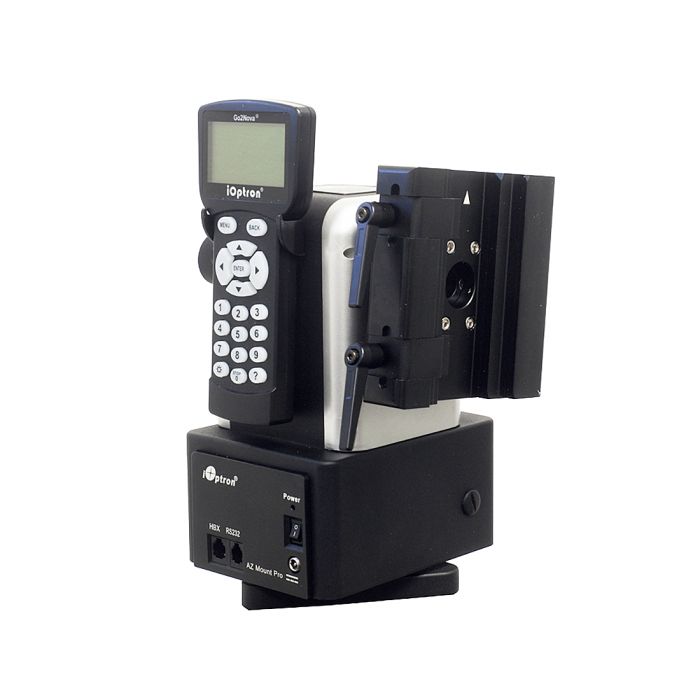

iOptron AZ Mount Pro GoTo Alt-Az Mount - Head Only
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Introducing the iOptron # 8920 AZ Mount Pro featuring "level and go" intuitive GOTO setup.
We call it "level and go", the term used to describe iOptron new AZ Mount Pro's simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable pight object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.
Features:
- On board rechargeable lithium ion battery for up to 10 hours of use
- 33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
- Whisper quiet low-power consumption stepper motors
- Go2Nova® 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
- Zero backlash driver system
- Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
- Serial port for computer control and firmware upgrades
- Retractable counter weight shaft
- Position memorization at power interruption
- Die-cast aluminum body
- 3-Point easy level adjustment (need part #8340-PIER for a pier top, or #8340 for a MT tripod, not included)
- 6 inch dual dovetail saddle (Losmandy/Vixen styles)
- Stands a mere 10 inches tall (mount head only)
- Built-in 32-channel GPS receiver
- Automatic position and angular detection sensors
- 100 ~ 240V Battery Charger included
- Aluminum Hard Case
- includes (8954) Alt lock levers
- Counterweight and tripod not included
Technical Specifications:
- Mount: AltAzimuth Mount
- Body Materials: Die-cast Aluminum
- System: GoToNova®
- Primary Payload: 33 lb
- Secondary Payload: 10 lb
- Mount Weight: 13 lb (including CW shaft and battery)
- Gear: Aluminum worm wheel/Brass worm gear
- Motor: 128X microstep stepper motor
- Transmission: Sychronous belt
- Resolution: 0.1 arc second
- Tracking: Automatic
- Tracking Rate: celestial, solar, lunar and user defined
- Hand controller: Go2Nova® 8407 with over 212,000 object database
- Slew Speed: 1x, 2×,8×,16x, 64×,128x, 256×,512x and MAX(~10º/sec, 2400X)
- GPS: 32-channel GPS
- Sensors: Position and angular detection
- Level indicator: Yes
- Dovetail Saddle: 6" Losmandy/Vixen dual saddle
- Optional secondary Vixen saddle
- Battery: Built-in rechargeable Li-ion battery (11.1V, 4.4AH)
- Battery Running Time: 10 hour at 20ºC
- Battery Charger: 100-240V AC input /12.6V DC 2000mA output (Included)
- Wireless Control: Yes, full control via built-in WIFI adapter
- Firmware Upgrade: Yes, via serial port
- Computer Control: Yes. PC via ASCOM and Mac/Tablet/SmartPhone via WIFI
- Counterweight: Not included (Optional 10lb CW #3006-10)
- Tripod/Pier/Tri-Pier: Not included
- Tripod Center Bolt Hole: M12-1.75
- Warranty: Two year limited for mount
- 90 day limited for battery
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Telescope mount – with built-in GPS, WIFI and rechargeable battery (11.1V, 4400mAh)
- Hand controller (HC) – Go2Nova® 8407
- 6” Vixen/Losmandy dual dovetail saddle
- Controller cables X1
- RS232-RJ9 serial cable
- AC adapter for battery charging – 100-240V
- Aluminum carrying case
- 2” heavy duty tripod with 3 leveling screws (#8900 only, as shown)
- 4.5kg counterweight (#8900 only)
- Two year warranty on the mount, 90 day warranty on the battery
Introducing the iOptron # 8920 AZ Mount Pro featuring "level and go" intuitive GOTO setup.
We call it "level and go", the term used to describe iOptron new AZ Mount Pro's simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable pight object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.
Features:
- On board rechargeable lithium ion battery for up to 10 hours of use
- 33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
- Whisper quiet low-power consumption stepper motors
- Go2Nova® 8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD screen
- Zero backlash driver system
- Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari wireless control
- Serial port for computer control and firmware upgrades
- Retractable counter weight shaft
- Position memorization at power interruption
- Die-cast aluminum body
- 3-Point easy level adjustment (need part #8340-PIER for a pier top, or #8340 for a MT tripod, not included)
- 6 inch dual dovetail saddle (Losmandy/Vixen styles)
- Stands a mere 10 inches tall (mount head only)
- Built-in 32-channel GPS receiver
- Automatic position and angular detection sensors
- 100 ~ 240V Battery Charger included
- Aluminum Hard Case
- includes (8954) Alt lock levers
- Counterweight and tripod not included
Technical Specifications:
- Mount: AltAzimuth Mount
- Body Materials: Die-cast Aluminum
- System: GoToNova®
- Primary Payload: 33 lb
- Secondary Payload: 10 lb
- Mount Weight: 13 lb (including CW shaft and battery)
- Gear: Aluminum worm wheel/Brass worm gear
- Motor: 128X microstep stepper motor
- Transmission: Sychronous belt
- Resolution: 0.1 arc second
- Tracking: Automatic
- Tracking Rate: celestial, solar, lunar and user defined
- Hand controller: Go2Nova® 8407 with over 212,000 object database
- Slew Speed: 1x, 2×,8×,16x, 64×,128x, 256×,512x and MAX(~10º/sec, 2400X)
- GPS: 32-channel GPS
- Sensors: Position and angular detection
- Level indicator: Yes
- Dovetail Saddle: 6" Losmandy/Vixen dual saddle
- Optional secondary Vixen saddle
- Battery: Built-in rechargeable Li-ion battery (11.1V, 4.4AH)
- Battery Running Time: 10 hour at 20ºC
- Battery Charger: 100-240V AC input /12.6V DC 2000mA output (Included)
- Wireless Control: Yes, full control via built-in WIFI adapter
- Firmware Upgrade: Yes, via serial port
- Computer Control: Yes. PC via ASCOM and Mac/Tablet/SmartPhone via WIFI
- Counterweight: Not included (Optional 10lb CW #3006-10)
- Tripod/Pier/Tri-Pier: Not included
- Tripod Center Bolt Hole: M12-1.75
- Warranty: Two year limited for mount
- 90 day limited for battery
| Product Banner Type | new |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- Telescope mount – with built-in GPS, WIFI and rechargeable battery (11.1V, 4400mAh)
- Hand controller (HC) – Go2Nova® 8407
- 6” Vixen/Losmandy dual dovetail saddle
- Controller cables X1
- RS232-RJ9 serial cable
- AC adapter for battery charging – 100-240V
- Aluminum carrying case
- 2” heavy duty tripod with 3 leveling screws (#8900 only, as shown)
- 4.5kg counterweight (#8900 only)
- Two year warranty on the mount, 90 day warranty on the battery
iOptron AZ Mount Pro GoTo Alt-Az Mount - Head Only # 8920
