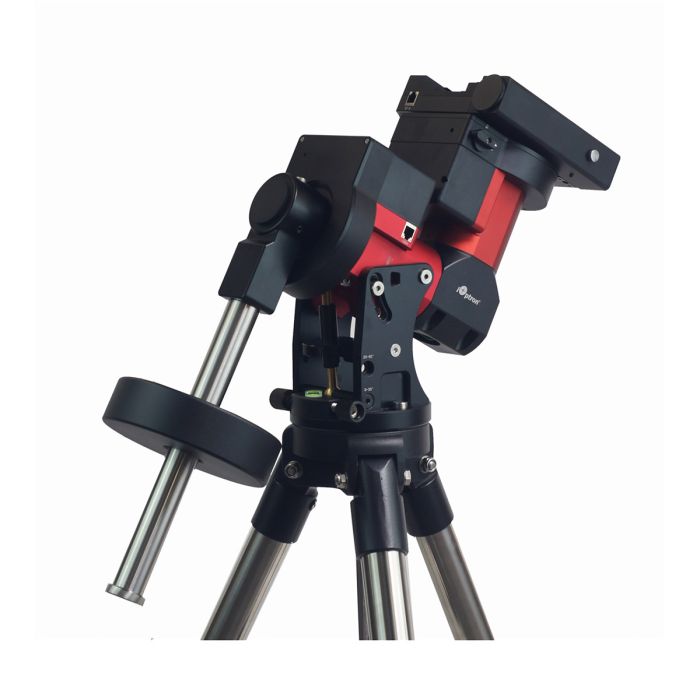

The iOptron® CEM40G mount is the next generation of center-balanced equatorial mounts with a built-in iGuider guiding camera. This mount is incredibly eye-pleasing, and its beauty is found in more than its appearance. The functionality of the mount is superb. Weighing in at only 17.4 lbs., the CEM40G can support a payload of up to 40lbs.! That's incredible!
Innovative iOptron Technology
Make way for an innovative mount! This mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.
This iOptron CEM40G mount has a dual saddle that accommodates Losmandy and Vixen-style dovetail plates. The CEM40 also uses iOptron's ultra-quiet, low-power consumption stepper motor drive system, aiding the mount in providing precise tracking.
Computerized Mount Features
The iOptron CEM40 mount uses the Go2Nova® 8407 hand controller to navigate the night sky. This incredible technology helps observers find celestial objects with the aid of the mount's 212,000+ object database! For those looking for a telescope that has the capability of tracking and finding beautiful night sky objects, this mount is a must have tool.
With the included tripod, 11lbs counterweight, and the mount's computerized technology, observers are just an OTA away from a spectacular viewing experience!
(This mount uses #8027 counterweight.)
Features
- Unique design, Center-Balanced equatorial mount (CEM) for maximum payload and minimum mount weight
- Built-in iGuider guiding camera
- Idea for both visual observation and astrophotography
- Maximum payload of 40 lbs (18 kg) with the mount weight of only 17.4 lbs (7.9 kg)
- All metal, CNC machined with red/black anodized
- Easy to use quick-lock gear clutches
- Integrated iPolarTM electronic polar finder
- Low periodic error (< ± 7 arc seconds)
- Permanent periodic error correction (PPEC)
- Precision stepper motor for precise GOTO and accurate tracking
- Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology with built-in heater
- Integrated ST-4 autoguiding port
- 32-channel Global Positioning System (GPS)
- USB communication port
- Cable management system
- 6" Losmandy D & Vixen dual dovetail saddle
- LiteRoc 1.75 inch heavy-duty stainless steel tripod (7kg)
- Hard case for mount head
- Optional WiFi for mount control via SmartPhone/Tablet/Computer
- NEW iOptron subsidized TheSky Imaging Edition
Specifications:
- Mount Center-Balanced Equatorial Mount
- Max payload*: 40 lb (18 kg), exclude counterweight
- Mount weight: 17.4 lb (7.9 kg)
- Payload/Mount weight: 2.28
- Structure Material: All metal, CNC machined
- Exterior Finish Anodized red/black
- Latitude adjustment range 0º ~ 60º(special CW shaft mounting if <10° )
- Azimuth adjustment range: ± 6º
- Tracking accuracy (PE)**: <±7 arcsec
- PEC PPEC
- Period: 400 sec
- Worm diameter Φ17mm, Brass
- Right Ascension worm wheel: Φ110mm, 216 teeth, zero backlash
- Declination worm wheel: Φ110mm, 216 teeth, zero backlash
- Right Ascension axis shaft: Φ45mm steel
- Declination axis shaft: Φ45mm steel
- Right Ascension bearings: Φ68mm
- Declination bearings: Φ68mm
- Counterweight shaft Φ28X280 mm, Stainless Steel (1.2 kg)
- Counterweight 11lbs (5kg)X1
- Motor Precision stepper motor, 1.8º/128X micro-step
- Motor resolution: 0.08 arcsec (200 PPS)
- Transmission: Synchronous belt
- Hand Controller Go2Nova® 8407+, 8 line 21 character LCD
- Star Database 212,000+, star identification
- Power DC 12V, 5A (5.5mm/ 2.5mm plug)
- AC adapter: 100V ~ 240V (included)
- Power consumption 0.6A(Tracking), 0.9A(GOTO)
- Power-down memory Yes
- Polar scope Internal iPolar TM electronic polar scope
- Meridian treatment: Stop (0-10° pass), flip
- Zero position Automatic zero search
- Dovetail saddle 6" Losmandy D & Vixen
- Max slew speed: 4.5°/sec (1080x)
- Guiding scope/camera: Built in guiding scope and camera, iGuiderTM
- Guiding port: ST-4
- Communication port: USB
- GPS Yes
- WiFi: External (optional)
- Cable Management: DC12V (3A), ST4,USB
- Tripod: LiteRoc 1.75" Stainless Steel(7kg)
- optional tri-pier
- Hard case Included (Mount head)
- Operation temperature -10ºC ~ 40ºC
- Warranty: Two year limited
* OTA size and length dependent
** Measured with encoder on the bench, 400 seconds
| Product Banner Type | sale |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- CEM40 mount with internal iPolarTM electronic Polar Scope
- Hand Controller (HC) – Go2Nova® 8410
- Counterweight – 11 lbs (5 kg, #8027)
- Stainless steel counterweight shaft
- GPS module
- RJ11 coiled cables, x2
- USB cable
- AC adapter – 100-240V (DC output 12V/5A) with 2.5/5.5mm DC plug
- Alignment peg (located in mount head package)
- 1.5” or LiteRocTM heavy duty tripod and accessory tray
- Optional hard case
- Quick Start Guide
