iOptron CEM70EC-NUC Equatorial Mount Head with iPolar & Hard Case
Availability: Discontinued by vendor. No longer available.
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

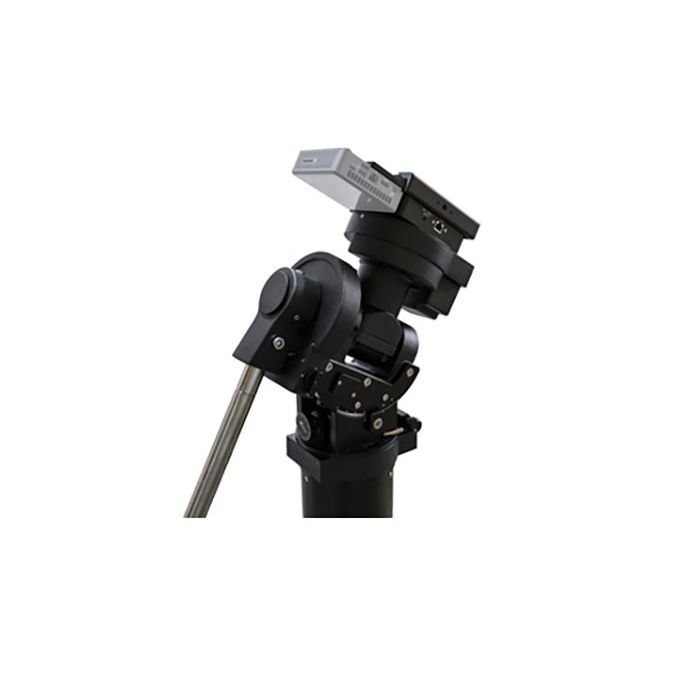

Introducing iOptron CEM70EC-NUC equatorial mount!
Need more versatility of an equatorial mount without cable tangling? Tired of connection error with some third party control interface? iOptron NUC-ready mounts are coming! A CEM70EC-NUC is ready to mate with Intel® NUC minicomputer (thickness≤38mm) at the front of dovetail saddle seamlessly with the cable management system.
Following up on the success of the iOptron CEM60 center balance equatorial mount, we at iOptron are excited to introduce two new medium payload center balance mounts. The CEM70 and CEM70G are new standard bearers for equatorial mounts in the 70lb payload segment. Both models are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.
Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC is a solid performer for observers and imagers alike.
Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera, and cumulatively assure users the CEM70 and 70G designed with their needs in mind.
Features
- A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
- Ideal for both visual observation and astrophotography
- Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
- Easy to use and reliable gear clutches
- Precision altitude and azimuth adjustment.
- Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
- iPolarTM electronic polar scope
- Go2Nova® 8407+ V2 controller with Advanced GOTONOVA® GOTO Technology with built in heater
- High precision tracking with low periodic error (PE<0.3 arcsec rms)
- Realtime periodic error correction (RPEC)
- 32-channel Global Positioning System (GPS)
- USB connection
- Integrated ST-4 autoguiding port
- Advanced cable management system for mount and NUC
- Spring loaded 8" Vixen/Losmandy dual saddle with NUC mounting adapter
- NEW iOptron subsidized TheSky Imaging Edition
PACKAGE CONTENTS
Box 1 of 2: #C704AN0
- 1x CEM70EC-NUC mount head in hard case with accessories
Box 2 of 2: #7226
- 1x 9.5kg counterweight
Specifications:
- Mount: Center-balanced Equatorial Mount (CEM)
- Payload*: 31.8kg (70 lbs), exclude counterweight
- Mount weight: 13.6kg (30 lbs)
- Payload/Mount weight ratio 2.33
- Material: All metal
- Latitude adjustment range: 0°~ 65°
- Azimuth adjustment range: ± 4°
- PE (by encoder)**: < 0.3 arcsec rms
- Worm period: 348 sec
- PEC: Realtime PEC (RPEC)
- Right Ascension worm wheel: Φ151mm, 248 teeth
- Declination worm wheel: Φ151mm, 248 teeth
- Worm: Φ21.2mm
- Right Ascension axle: Φ55mm, steel
- Declination axle: Φ55mm, steel
- Right Ascension bearings: Φ80mm
- Declination bearings: Φ80mm
- Counterweight shaft: Φ28x 415 mm (SS, 1.9kg)
- Counterweight: 9.5 kg (20 lbs) x1
- Mount base size: Φ152mm
- Motor drive: Precision stepper motor w/128 micro-step
- Resolution: 0.07 arc seconds
- Slew speed: 3.75°/sec (900x) max.
- Hand Controller: Go2Nova® 8407+, 8 line 21 character LCD
- Power requirement: DC 12V, 5A (5.5mm/2.5mm plug)
- Power consumption: 0.6A(Tracking),0.8A(GOTO)
- Polar Scope: Internal electronic polar scope, iPolar
- Meridian treatment: Stop (0-10° pass), auto flip
- Zero position: Automatic zero search
- Park position: Horizontal, vertical, current, alt/azi input
- Level indicator: YES
- Dovetail saddle: 8" Losmandy D & Vixen
- GPS: YES
- Guiding port: ST-4
- Communication port: USB2.0
- Cable management: DC12V (3A),DC (5A), GUIDE,USB
- For NUC: DC 19V, LAN and USB
- Operation temperature range: -10°C ~ +40°C
- Hard case: YES
- Pier/Tripod: Optional LiteRoc tripod or pier
- Warranty: Two year limited
| Manufacturer | iOptron |
|---|---|
| Product Banner Type | special |
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
- CEM70EC mount with internal iPolarTM electronic Polar Scope
- Hand Controller (HC) – Go2Nova® 8410
- Counterweight – 21 lbs (9.5 kg)
- Stainless steel counterweight shaft
- Built-in GPS module
- Hand controller coiled cables
- USB cable
- AC adapter – 100/240V (DC output 12V/5A, indoor use only)
- Hard case
- Quick Start Guide
