iOptron GEM28 Mount with iPolar & 1.5" Tripod
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

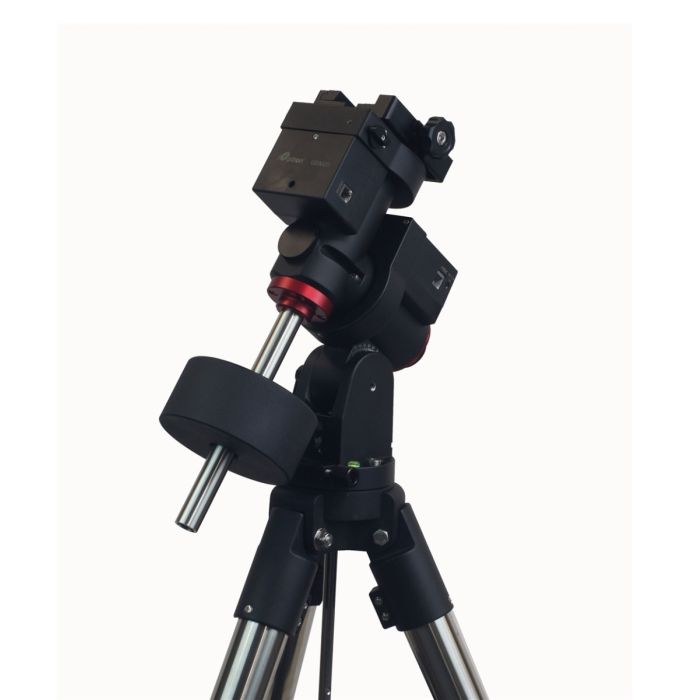

Introducing iOptron’s new compact next-generation German equatorial mounts the GEM28!
Like their predecessors, the GEM28 is designed with portability in mind, weighing in at only 10 lbs it can support up to a 28lb payload an incredible 2.8 mount weight to payload ratio. We achieved this using design methods developed to reduce mount mass in our CEM family of mounts. The German EQ versions were created to satisfy consumer that prefer a more traditional mount and to function at higher latitudes.
Building on the legacy of earlier GEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves), Built-in Wi-Fi enabling unparallel connectivity and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the GEM28 delivers precise pointing and accurate tracking. The GEM28 sets the new standard for compact German equatorial goto mounts.
The GEM28 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. The 212,000 object library ensures you’ll never run out of targets to see or image. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.
The GEM28A mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. It comes with a 1.5" heavy duty stainless steel tripod.
Shipping Box #1: G281A-GEM28 Head w/ iPolar/Tray (G281A)
Shipping Box #2: 8281-CEM26/GEM28 1.5" Tripod w/o Tray (C26/G28 1.5T)
Features
- German equatorial design, latitude range of 10° ~ 70°
- Ideal for both visual observation and astrophotography
- Low periodic error (< ± 10 arc seconds)
- Payload of 12.7 kg (28 lbs) with the mount-only weight of 4.5 kg (10 lbs)
- CNC machined and cast metal body
- Spring loaded gear system
- Large easy to use quick-lock gear clutches
- Stepper motor with low power consumption
- Integrated iOptron iPolarTM electronic polar scope
- Polar alignment routine for those who can’t see the Pole Star
- Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi
- USB port for firmware upgrade and computer control
- Standard 1.5 inch heavy-duty stainless steel tripod (5kg)
- Die-cast metal tripod spreader with accessory tray
- Optional 32-channel Global Positioning System (GPS)
- Optional hard carrying case
- Optional iGuiderTM autoguiding system (#3360)
Specifications:
- Mount: German Equatorial Mount
- Payload *: 28 lbs (12.7kg), exclude counterweight
- Mount weight: 10 lbs (4.5kg)
- Payload/Mount weight: 2.80
- Structure Material: All metal, Casting + CNC machined
- Exterior Finish: Powder coating
- Periodic error (PE) **: <±10 arcsec
- PEC: Yes, Permanent PEC
- Worm period: 600 sec
- Right Ascension worm wheel: Φ88mm, 144 teeth aluminum
- Declination worm wheel: Φ88mm, 144 teeth aluminum
- Right Ascension axis shaft: Φ35mm steel
- Declination axis shaft: Φ35mm steel
- Right Ascension bearing: Φ55mm ball bearing
- Declination bearing: Φ55mm ball bearing
- Worm gears: Φ15.2mm, Brass
- Motor drive: 1.8º stepper motor, 128X microdivision
- Resolution: 0.17 arc seconds
- Transmission: Synchronous belt
- Latitude adjustment range: 10º ~ 70º
- Azimuth adjustment range: ± 6º
- Polar Scope: iPolar TM electronic polar scope
- Level indicator: Level bubble
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Slew speed: 1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec)
- Power consumption: 0.6A(Tracking), 0.9A(GOTO)
- Power requiremention: 12V DC, 5A
- AC adapter: 100V ~ 240V (included)
- Power-down memory: Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- PC computer control: Yes (ASCOM)
- Counterweight shaft: Φ20X200mm (M16), Stainless Steel
- Shaft extension: Φ20X120mm (M16), Stainless Steel
- Counterweight: 10 lbs (4.5kg)
- Tripod: 1.5" Stainless Steel (5kg)
- Dovetail saddle: 3.8" Vixen-style, center adjustable
- GPS: Optional external 32-channel GPS
- Autoguiding: Optional external iGuider 1
- Operation temperature: -10ºC ~ 40ºC
- Warranty: Two year limited
* OTA size and length dependent, smaller than 6" in diameter recommended
** Measured with encoder on bench, 10 minutes
| Manufacturer | iOptron |
|---|---|
| Free Shipping Graphic | Free Contiguous US Shipping |
| Hide Found a better Shipped Price on Frontend? | No |
