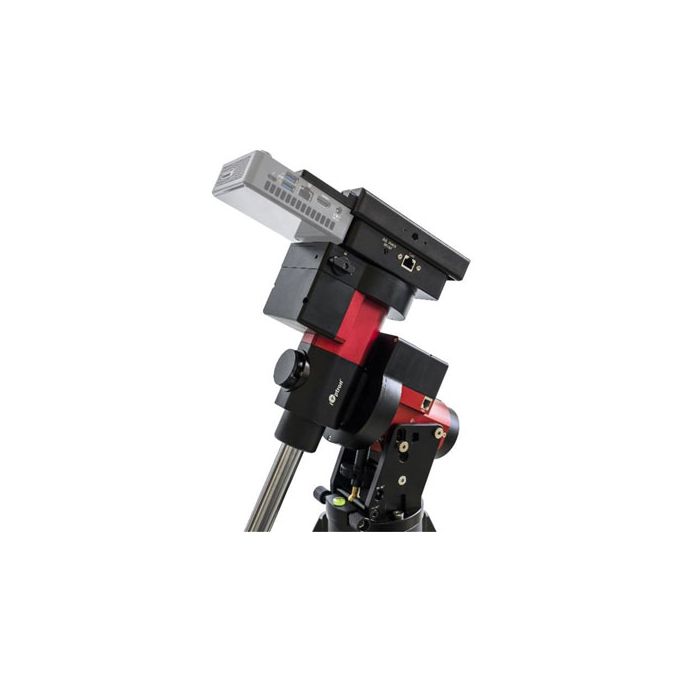

iOptron GEM45EC-NUC Mount with iPolar, Case & 1.75" LiteRoc Tripod
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Introducing iOptron GEM45EC-NUC equatorial mount!
Need more versatility of an equatorial mount without cable tangling? Tired of connection error with some third party control interface? iOptron NUC-ready mounts are coming! A GEM45EC-NUC is ready to mate with Intel® NUC minicomputer (thickness≤38mm) at the front of dovetail saddle seamlessly with the cable management system.
Innovative ideas applied to a time tested design, the iOptron® GEM45EC next generation German equatorial mounts. A sharp looking CNC body is the first indicator the GEM45 is a top quality mount in both form and function.
Utilizing experiences gained during development of our CEM series, we were able to remove unnecessary bulk giving the GEM45 an incredible 2.2 payload to mount weight ratio. This compact 18 lbs mount can precisely GOTO an object and track with up to 45 lbs of gear onboard. With its integrated electronic polar scope (iPolarTM), polar alignment is a snap, even when the pole star is obscured. Large levers on the quick-lock drive engagement system make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the GEM45's internal advanced cable management system. A 6" dual dovetail saddle accommodates Losmandy and Vixen style dovetail plates. GEM45EC mounts utilize reliable stepper motor drive systems with our low power consumption technology. Looking for ultra precise tracking, the GEM45EC with its high resolution encode delivers a PE<0.25 arcsec rms.Our new LiteRoc 1.75" tripod delivers rock solid stability in a lighter, more compact package. A 212,000+ object library with star identification, GPS, Wi-Fi (requires optional iStarFi adapter) are a few of the desirable features standard on a GEM45 mount.
Features
- German equatorial mount with innovative features
- Idea for both visual observation and astrophotography
- Maximum payload of 45 lbs (20 kg) with the mount weight of only 18 lbs (8.2 kg)
- All metal, CNC machined with red/black anodized
- Easy to use quick-lock gear clutches
- Integrated iPolarTM electronic polar finder
- Low periodic error (< 0.25 arc seconds rms)
- Realtime periodic error correction (RPEC)
- Precision stepper motor for precise GOTO and accurate tracking
- Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology and built-in heater
- Integrated ST-4 autoguiding port
- 32-channel Global Positioning System (GPS)
- USB communication port
- Advanced cable management system for mount and NUC
- 6" Losmandy D & Vixen dual dovetail saddle with NUC mounting adapter
- Optional WiFi for mount control via SmartPhone/Tablet/Computer
- All new LiteRoc 1.75" tripod with improved stability and leg locks
- Hard case
- NEW iOptron subsidized TheSky Imaging Edition
Shipping Contents
- iOptron® GEM45EC-NUC mount
- Go2Nova® 8407+ Hand Controller
- One 11lbs (5 kg) counterweight
- Stainless steel counterweight shaft
- Internal iPolar electronic polar scope
- GEM45 GPS module
- AC adapter (100V-240V)
- 2X coiled control Cable (6P6C RJ11 to RJ11, straight wired)
- USB cable
- LiteRoc 1.75" tripod with improved stability and leg locks
- Hard case
- Quick Start Guide
Specifications
- Mount: German Equatorial Mount
- Max payload*: 45 lbs (20 kg), exclude counterweight
- Mount weight: 18 lbs (8.2 kg)
- Payload/Mount weight: 2.2
- Structure Material All metal, CNC machined
- Exterior Finish: Anodized red/black
- Latitude adjustment range: 14º ~ 68º
- Azimuth adjustment range: ± 6º
- Tracking accuracy (PE)**: <0.25 arcsec rms
- PEC: RPEC
- Period: 400 sec
- Worm diameter: Φ17mm, Brass
- Right Ascension worm wheel: Φ110mm, 216 teeth, zero backlash
- Declination worm wheel: Φ110mm, 216 teeth, zero backlash
- Right Ascension axis shaft: Φ45mm steel
- Declination axis shaft: Φ45mm steel
- Right Ascension bearings: Φ68mm
- Declination bearings: Φ68mm
- Counterweight shaft: Φ28X280 mm, Stainless Steel (1.2 kg)
- Counterweight: 11lbs (5kg) X1
- Motor: Precision stepper motor, 1.8º/128X micro-step
- Motor resolution: 0.08 arcsec (200 PPS)
- Transmission: Synchronous belt
- Hand Controller: Go2Nova® 8407+, 8 line 21 character LCD
- Star Database: 212,000+, star identification
- Power: DC 12V, 5A (5.5mm/2.5mm plug)
- AC adapter: 100V ~ 240V (included)
- Power consumption: 0.6A(Tracking), 0.9A(GOTO)
- Power-down memory: Yes
- Polar scope: Internal iPolar TM electronic polar scope
- Meridian treatment: Stop (0-20° pass), flip
- Zero position: Automatic zero search
- Dovetail saddle: 6" Losmandy-D & Vixe dual saddle
- Max slew speed: 4.5°/sec (1080X)
- Guiding port: ST-4
- Communication port: USB
- GPS: Yes
- WiFi: External (optional)
- Guiding scope/camera: Optional external iGuider 1
- Cable Management: DC12V (3A),DC (5A), GUIDE,USB
- For NUC: DC 19V, LAN and USB
- Tripod: LiteRoc 1.75" Stainless Steel(~8kg), optional Tri-pier
- Tripod mounting thread: M12
- Hard case: Included
- Operation temperature: -10ºC ~ 40ºC
- Warranty: Two year limited
