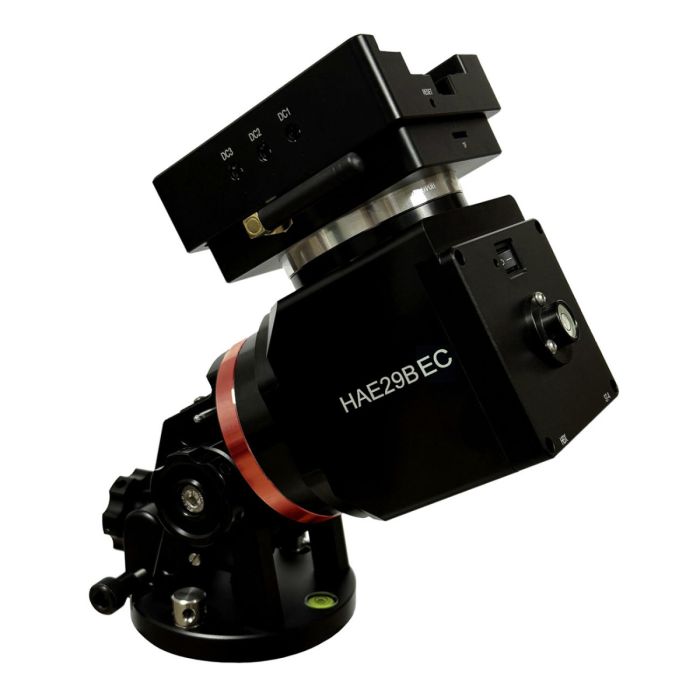

iOptron HAE29B-EC Strain Wave AZ/EQ Dual Mount Head with iMate
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Advanced strain wave gear system technology
- Onboard iMate computer
- Payload capacity of 13 kg (29 lbs) with the mount weight of 3.8 kg (8.4 lbs, include dovetail saddle)
- CNC machined
- Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
- 360 second gear period
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi (for iMate connection)
- USB port for firmware upgrade and computer control
- Carrying case
- Two year warranty
The newest member of iOptron strain wave gear mount family - AZ/EQ dual mount HAE29B EC! This light weight, compact, medium payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 8lbs with a payload capability 29.7lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE29 brings this vision to reality.
Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE29s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction break to safely stop movement during a planned or unplanned power interruption.
The new “B” iMate HAE29 model mounts feature a powerful 64-bit ARM based on-board computer with Wi-Fi, preloaded KStars planetarium software, Ekos control and automation tool with INDI drivers. This hardware-software combination will support the use of most current and future devices allowing the user choice of brand and model (cameras, focusers, filter wheels, etc.).
With 32GB eMMC storage along with a slot for an up to 64 GB TF(microSD) memory, the iMate has the ability to control and capture an entire automated imaging session. The iMate is cross-platform; use it with Windows, IOS, Linux, Android etc .
All HAE iMate dual SWG Alt-az/Eq mounts now have an internal main board and no longer requires a handset for operation.All the accessories can be connected to the iMate and there is no cable drags when the mount is operating.
An HAE29B mount can also be controlled by a computer via the USB-C port on the mount base, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a Mac OS software.
The HAE29B EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.
Specifications
- Mount: Strain Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- Reduction ratio: RA 480:1, DEC 360:1
- Payload w/o CW *: 29 lbs (13 kg)
- Mount weight: 8.4 lbs (3.8 kg) with dovetail saddle
- Payload/Mount weight: 3.42
- Payload with CW*: 40 lbs (18 kg)
- Period: 360 second
- High precision encoder: Yes (RA)
- PEC: Yes, Real time PEC
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Handset: Optional 8411 OLED Go2Nova®
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.6A(Tracking), 1A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes (via USB)
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Counterweight Shaft: SS Φ20X200mm, 3/8"-16 thread (Optional)
- Counterweight: 10 lbs (4.5kg)(Optional)
- Operation temperature: -20ºC ~ 45ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
