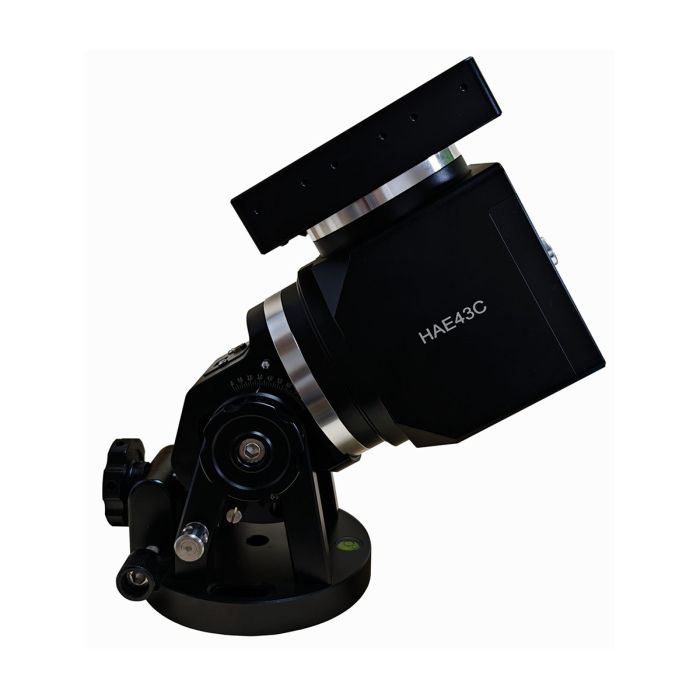

iOptron HAE43C Strain Wave AZ/EQ Dual Mount Head
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Advanced strain wave gear system technology
- Payload capacity of 20 kg (44 lbs) with the mount weight of 5.8 kg (12.8 lbs, include dovetail saddle)
- CNC machined
- Unique friction brake on both RA and DEC to safely stop movement during a planned or unplanned power interruption
- 270 second gear period
- Programable PEC
- Optional 8411 OLED Go2Nova® handset with ~212,000 object database
- Optional iPolar electronic polar scope for easy and accurate polar alignment
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Integrated ST-4 autoguiding port
- USB port for firmware upgrade and computer control
- Aluminum carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount. Tri-Pier #8034 and MiniPier # 8031 compatible.
The newest member of the iOptron strain wave gear mount family - AZ/EQ dual mount HAE43C! This lightweight, compact, medium payload titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 13lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE43 brings this vision to reality.
Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE43 delivers unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction break to safely stop movement during a planned or unplanned power interruption.
All HAE "C" model dual SWG Alt-az/Eq mounts now have an internal main board and no longer requires a handset for operation. An HAE43c mount can be controlled by a computer via the USB-C port on the mount base, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a Mac OS software. It can also be operated with full GoTo function from the optional 8411 handset.
(Actual contents may differ from the image. # 8411 handset and # 3339 iPolar are optional.)
Specifications:
- Mount: Strain Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- Reduction ratio: RA 640:1, DEC 480:1
- Payload w/o CW*: 44 lbs (20 kg)
- Mount weight: 12.8lbs (5.8kg) with dovetail saddle
- Payload/Mount weight: 3.45
- Payload with CW*: 55 lbs (25kg)
- Period: 270 second
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- High precision encoder: No
- Polar Scope: Optional iPolar electronic polar scope (external)
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Optional 8411 OLED Go2Nova®
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.7A(Tracking), 1.2A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Communication port: USB-C
- Power-down memory: Yes
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Counterweight shaft: SS Φ20X200mm, 3/8"-16 thread (Optional)
- Counterweight: 10 lbs (4.5kg)(Optional)
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
