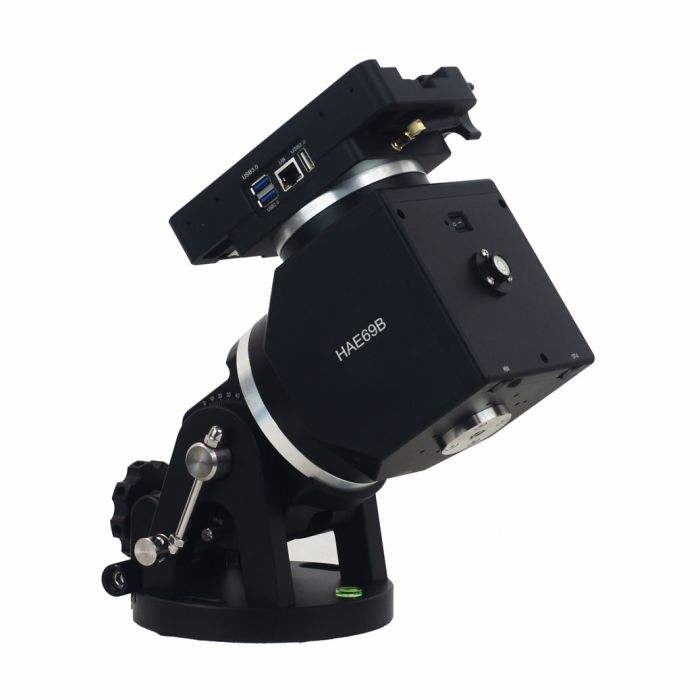

iOptron HAE69 iMate Dual AZ/EQ Hybrid SWG Mount with Hand Controller
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Keeping pace with the current rapidly developing technology environment, the iOptron HAE69 and HAE69EC SWG mounts have evolved into the HAE69B iMate.
These lightweight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 20 lbs with a payload capability 69 lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE69 makes this vision possible.
Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power-down memory allow the mount to safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
The “iMate” models feature a powerful 64-bit ARM based on-board computer with Wi-Fi, preloaded KStars planetarium software, Ekos control and automation tool and INDI drivers. This hardware-software combination will support the use of most current and future devices (cameras, focusers, filter wheels, etc.) allowing the user choice of brand and model.
With 32Gb eMMC storage along with a slot for an up to 64Gb TF (micro SD) memory, the iMate has the ability to control and capture an entire automated imaging session. The iMate is cross-platform; use it with Windows, MacOS, Linux, iOS and Android etc.
HAE69B iMate dual SWG Alt-az/ Eq mounts now have an internal main board and no longer requires use with a handset. All the accessories can be connected to the iMate and there is no cable drags when the mount is operating.
(Actual contents may differ from the image)
Features:
- Advanced strain wave gear system technology
- Payload capacity of 31 kg (69 lbs) with the mount weight of 8.6 kg (19 lbs, include dovetail saddle)
- PE< ± 15 arcsec
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- 270 second gear period
- Built-in iMate computer with WiFi, preloaded KStarts/Ekos and iPolar software
- No cable drags
- Go2Nova® handset with OLED for better user experiences, especially at extreme temperatures
- iPolar electronic polar scope for easy and accurate polar alignment
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Power down position and location memory
- Integrated ST-4 autoguiding port
- USB port for firmware upgrade and computer control
- Aluminum carrying case
- Two year warranty
Specifications:
- Mount: Strain: Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- Reduction ratio: RA 800:1, DEC 800:1
- Payload w/o CW *: 69 lbs (31 kg)
- Mount weight: 19.8 lbs (9 kg) with dovetail saddle
- Payload with CW*: 79 lbs ( 36kg)
- Period: 270 second
- PE (by encoder)**:" < ± 15 arcsec
- Azimuth adjustment range: ± 8°
- Latitude adjustment range: 0°~ 90°
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- Polar Scope: iPolar electronic polar scope (external)
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander/iMate
- Handset: Go2Nova® 8411 w/OLED display
- Tracking: Automatic
- Maximum slew speed: 4.5º/sec
- Power consumption: 0.6A (Tracking), 1.6A (GOTO)
- Power: DC12V-6A (5.5/2.1mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Buit-in computer: iMate with Wi-Fi, preloaded KStarts/Ekos and iPolar software
- Communication port: Yes (iMate and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen/Losmandy dual saddle
- Mounting base diameter: 152mm
- Tripod: Not included
- Counterweight Shaft: SS Φ20X200mm, 3/8"-16 thread (not included)
- Counterweight: 10 lbs (4.5kg) (not included)
- Operation temperature: -20ºC ~ 40ºC
- Warranty: Two year limited
* 250mm, with payload center of gravity to the RA rotation axis.
