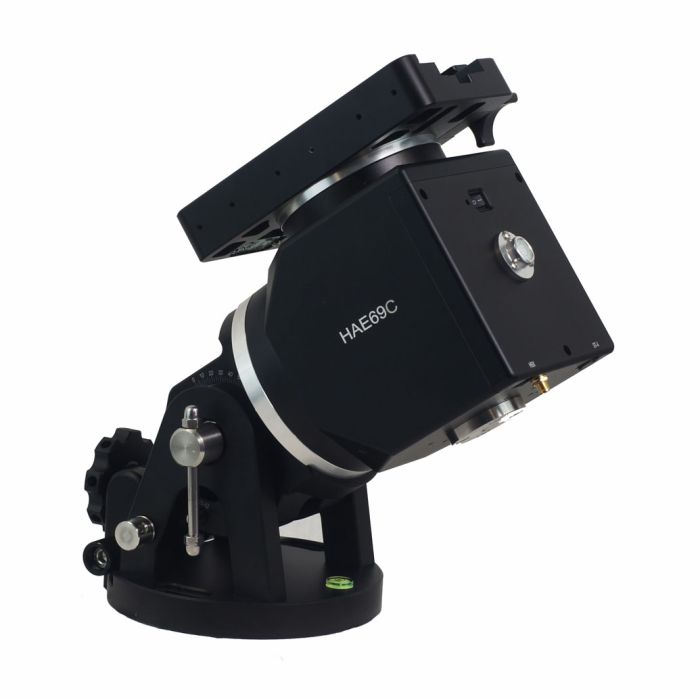

iOptron HAE69C Dual AZ/EQ Hybrid SWG Mount with Case
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
HAE69 mounts are now available without the iMate (on-board computer).
These lightweight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at less than 20 lbs with a payload capability 69 lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HAE69 makes this vision possible.
Utilizing state-of-the-art strain wave gear technology for both RA and DEC movement, the HAE69s deliver unparalleled weight to payload efficiency. Its black anodized, all metal CNC machined body is appealing to the eye and is a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and power-down memory allow the mount to safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
HAE69C dual SWG Alt-az/ Eq mounts now have an internal main board and no longer requires use with a handset. The mount has USB ports on both the mount base and saddle that connect directly to the main board for mount control and firmware upgrade. It also features a built-in Wi-Fi for connection.
Features:
- Advanced strain wave gear system technology
- Payload capacity of 31 kg (69 lbs) with the mount weight of 8.6 kg (19 lbs, include dovetail saddle)
- PE< ± 15 arcsec
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- 270 second gear period
- Dual saddle (Vixen and Losmandy-D styles)
- Built in zero position search and locator
- Power down position and location memory
- Integrated ST-4 autoguiding port
- USB port (on both mount base and dovetail saddle) for firmware upgrade and computer control
- No cable drags
- Built-in Wi-Fi for mount control
- Aluminum carrying case
- Two year warranty
Specifications:
- Mount: Strain Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- Reduction ratio: RA 800:1, DEC 800:1
- Payload w/o CW *: 69 lbs (31 kg)
- Mount weight: 19.8 lbs (9 kg) with dovetail saddle
- Payload with CW*: 79 lbs ( 36kg)
- Period: 270 second
- PE (by encoder)**: < ± 15 arcsec
- Azimuth adjustment range: ± 8°
- Latitude adjustment range: 0°~ 90°
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- Polar Scope: not included
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Handset: not included
- Tracking: Automatic
- Maximum slew speed: 4.5º/sec
- Power consumption: 1A(Tracking), 1.6A(GOTO)
- Power: DC12V-6A (5.5/2.1mm DC plug)
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Ports on Dovetail Saddle: DC12V output and USB-C port
- Communication port: Yes (USB and Wi-Fi)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes (USB via Windows)
- Dovetail saddle: Vixen/Losmandy dual saddle
- Mounting base diameter: 152mm
- Tripod: not included
- Counterweight Shaft: SS Φ20X200mm, 3/8"-16 thread (Optional)
- Counterweight: 10 lbs (4.5kg)(Optional)
- Operation temperature: -20ºC ~ 40ºC
- Warranty: Two year limited
* 250mm, with payload center of gravity to the RA rotation axis.
