iOptron HAZ46 Alt-Azimuth Strain Wave Mount Head
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Advanced strain wave gear system technology
- Payload capacity of 20 kg (44 lbs) with the mount weight of 5.6 kg (12.3 lbs, include dovetail saddle)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- Go2Nova® hand controller with ~212,000 object database
- Dual saddle (Vixen and Losmandy-D styles)
- Level & Go
- Large binocular mounting
- Satellite tracking ready (with third party software)
- Built in zero position search and locator
- Power down position and location memory
- Built-in Wi-Fi (via hand controller)
- USB port for firmware upgrade and computer control
- Carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
An exciting new Alt-Az strain wave mount, HAZ46 has been added into iOptron's strain wave gear mount family!
This light weight, compact, medium payload HAZ46 mount will deliver an astronomy experience like never before. With a mount head weighing in at 12.3 lbs, HAZ46 has a payload capability 44 lbs, without needing a cumbersome counterweight or shaft. HAZ mounts will support a large variety of instruments that flexibility is needed for outreach programs and satellite tracking. The multi position saddle (can be placed on top or to the side) uniquely sets up the HAZ46 to accommodate binoculars. Just turn the mount on, it will calibrate itself and GoTo the first target utilizing our time tested "Lever and Go" technology.
Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAZ46 deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
A HAZ46 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

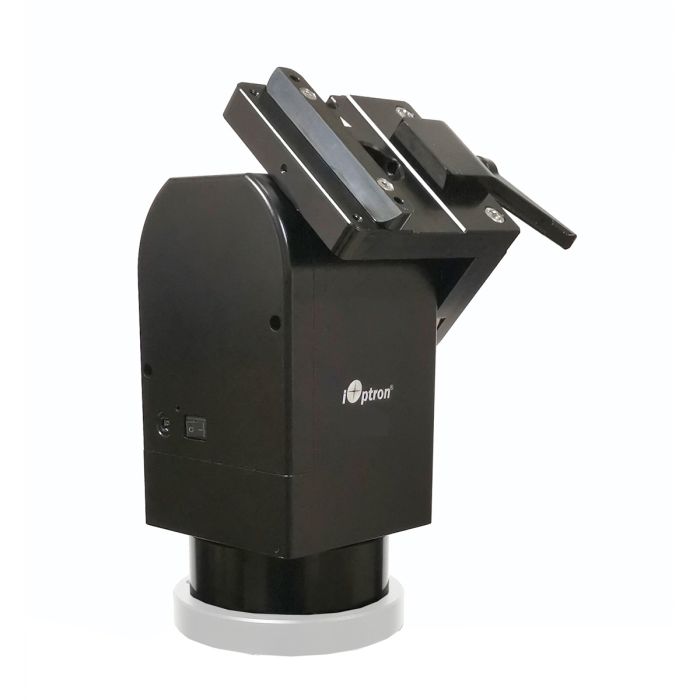

(Actual contents may differ from the image)
Specifications:
- Mount: Strain Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- RA/DEC reduction ratio: 640:1
- Payload*: 44 lbs (20 kg)
- Mount weight: 12.3 lbs (5.6 kg) with dovetail saddle
- Payload/Mount weight: 3.57
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.7A(Tracking), 1.2A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug), optional internal Li-ion battery
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB, via HC)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
| Free Shipping Graphic | Free Contiguous US Shipping |
|---|---|
| Hide Found a better Shipped Price on Frontend? | No |
- Advanced strain wave gear system technology
- Payload capacity of 20 kg (44 lbs) with the mount weight of 5.6 kg (12.3 lbs, include dovetail saddle)
- CNC machined
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- Go2Nova® hand controller with ~212,000 object database
- Dual saddle (Vixen and Losmandy-D styles)
- Level & Go
- Large binocular mounting
- Satellite tracking ready (with third party software)
- Built in zero position search and locator
- Power down position and location memory
- Built-in Wi-Fi (via hand controller)
- USB port for firmware upgrade and computer control
- Carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
An exciting new Alt-Az strain wave mount, HAZ46 has been added into iOptron's strain wave gear mount family!
This light weight, compact, medium payload HAZ46 mount will deliver an astronomy experience like never before. With a mount head weighing in at 12.3 lbs, HAZ46 has a payload capability 44 lbs, without needing a cumbersome counterweight or shaft. HAZ mounts will support a large variety of instruments that flexibility is needed for outreach programs and satellite tracking. The multi position saddle (can be placed on top or to the side) uniquely sets up the HAZ46 to accommodate binoculars. Just turn the mount on, it will calibrate itself and GoTo the first target utilizing our time tested "Lever and Go" technology.
Utilizing state of the art strain wave gear technology for the both RA and DEC movement, the HAZ46 deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
A HAZ46 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.
(Actual contents may differ from the image)
Specifications:
- Mount: Strain Wave Altazimuth/Equatorial Mount
- RA gear system: Strain Wave Gear
- DEC gear system: Strain Wave Gear
- RA/DEC reduction ratio: 640:1
- Payload*: 44 lbs (20 kg)
- Mount weight: 12.3 lbs (5.6 kg) with dovetail saddle
- Payload/Mount weight: 3.57
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.7A(Tracking), 1.2A(GOTO)
- Power: DC12V-5A (5.5/2.5mm DC plug), optional internal Li-ion battery
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Power-down memory: Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB, via HC)
- Firmware upgrade: Yes
- Dovetail saddle: Vixen & Losmandy
- Tripod: Optional
- Operation temperature: -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
