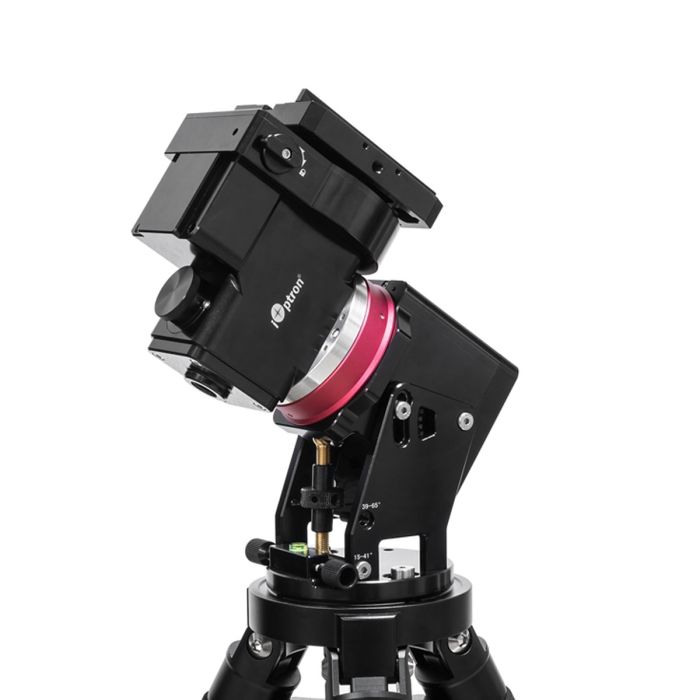

iOptron HEM27EC Hybrid SWG Equatorial Mount Head with HR Encoders, iPolar & Case
Ships by Next Business Day
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
- Advanced hybrid SWG drive technology
- Payload capacity of 13.5 kg (29.7 lbs) with the mount weight of 3.7 kg (8.15 lbs)
- CNC machined and cast metal body
- Unique friction brake to safely stop movement during a planned or unplanned power interruption
- 360 second gear period
- High precision encoder with realtime PEC (RPEC)
- Go2Nova® hand controller with ~212,000 object database
- iPolar electronic polar scope for easy and accurate polar alignment
- Cable management system, no hanging exterior cables to moving parts
- Dual saddle (vixen and losmandy-D styles)
- Built in zero position search and locator
- Power down position and location memory
- Integrated ST-4 autoguiding port
- Built-in Wi-Fi (via hand controller)
- USB port for firmware upgrade and computer control
- Soft carrying case
- Two year warranty
Please note: No tripod is included with this item. iOptron offers a carbon fiber tripod separately for this mount.
Introducing the HEM27EC, iOptron’s revolutionary hybrid SWG drive mount. This light weight, high payload tiny titan will deliver an astronomy experience like never before. Imagine a mount head weighing in at 8.15lbs with a payload capability 29.74lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi decade experience creating precision mounts, the HEM27EC brings this vision to reality.
Utilizing state of the art hybrid SWG drive technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM27s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).
The HEM27EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.
Specifications:
- Mount: Hybrid SWG Equatorial Mount
- RA Gear system: StrainWave 17 (RA)/worm gear (DEC)
- DEC Gear system: Backlash-free worm/belt system
- RA reduction ratio: 120
- Payload w/o CW: * 29.14 lbs (13.5 kg); 40 lbs. (20 kg) with 10 lbs. CW
- Mount weight: 7.49lbs (3.4kg) w/o dovetail saddle, 8.15 ls (3.7kg) with dovetail saddle
- Payload/Mount weight: 3.65
- Period: 360 second
- Drive motor: Stepper motor
- Structure Material: All metal, CNC machined
- Exterior finish: Anodized black
- High precision encoder: Yes (RA)
- PEC: Yes, Realtime PEC
- Latitude adjustment range: 15º ~ 65º
- Azimuth adjustment range: ± 5º
- Polar Scope: iPolar electronic polar scope
- Level indicator: Level bubble
- Control system: GOTONOVA/Commander
- Hand Controller: Go2Nova® 8409 with ~212,000 objects database
- Tracking: Automatic
- Maximum slew speed: 6º/sec
- Power consumption: 0.5A(Tracking), 1A(GOTO)
- Power requirement: 12V DC, 5A
- AC adapter: 100V ~ 240V (included, indoor use only)
- Power off brake: Electronic friction brake
- Power-down: memory Yes
- Wi-Fi: Built-in
- Communication port: Yes (Wi-Fi and USB)
- Autoguide port: Yes (ST-4 compatible)
- Firmware upgrade: Yes
- Tripod: Optional
- Operation temperature: -20ºC ~ 50ºC (hand controller -10ºC ~ 40ºC)
- Warranty: Two year limited
* 200mm, with payload center of gravity to the RA rotation axis or an OTA size of ~220mm.
